BaseBox 2

RB912UAG-2HPnD-OUT – BaseBox 2 (RouterBOARD 912UAG with 600Mhz Atheros CPU, 64MB RAM, 1xGigabit LAN, USB, miniPCIe, built-in2Ghz 802.11b/g/n 2×2 two chain wireless with two RP-SMA connectors, RouterOS L4, outdoor enclosure, POE, PSU,pole mount, rail mount)

Category: Tag:

87.00

Quantity

Product Description

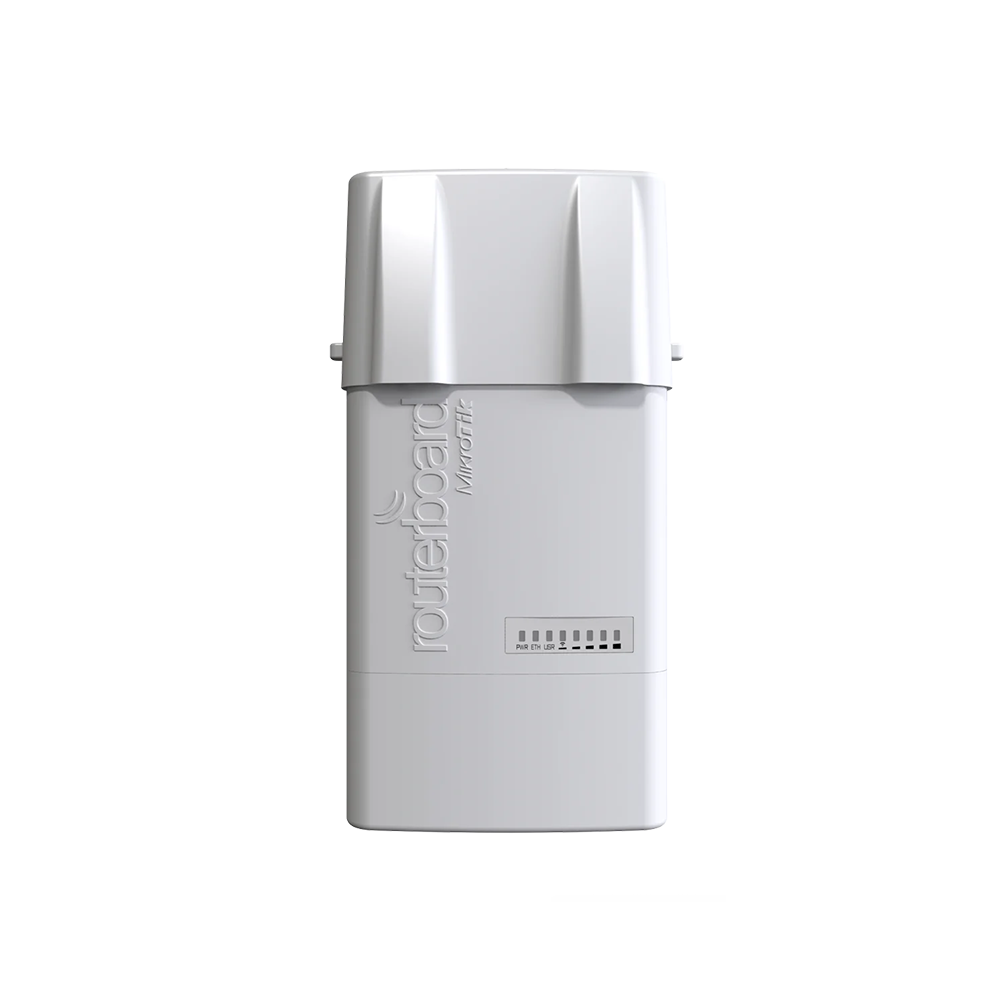

he BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Product specifications

Details
Product code RB912UAG-2HPnD-OUT
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100/1000 Ethernet ports 1
MiniPCI-e slots 1
Wireless standards 802.11b/g/n
Wireless chip model AR9342
Number of USB ports 1
PoE in Yes
Supported input voltage 8 V – 30 V
Voltage Monitor Yes
PCB temperature monitor Yes
Operating System RouterOS
Tested ambient temperature -40C to +70C
License level 4
CPU AR9342
Max Power consumption 10W
USB slot type USB type A
Number of chains 2
Storage type NAND
Storage size 64 MB
