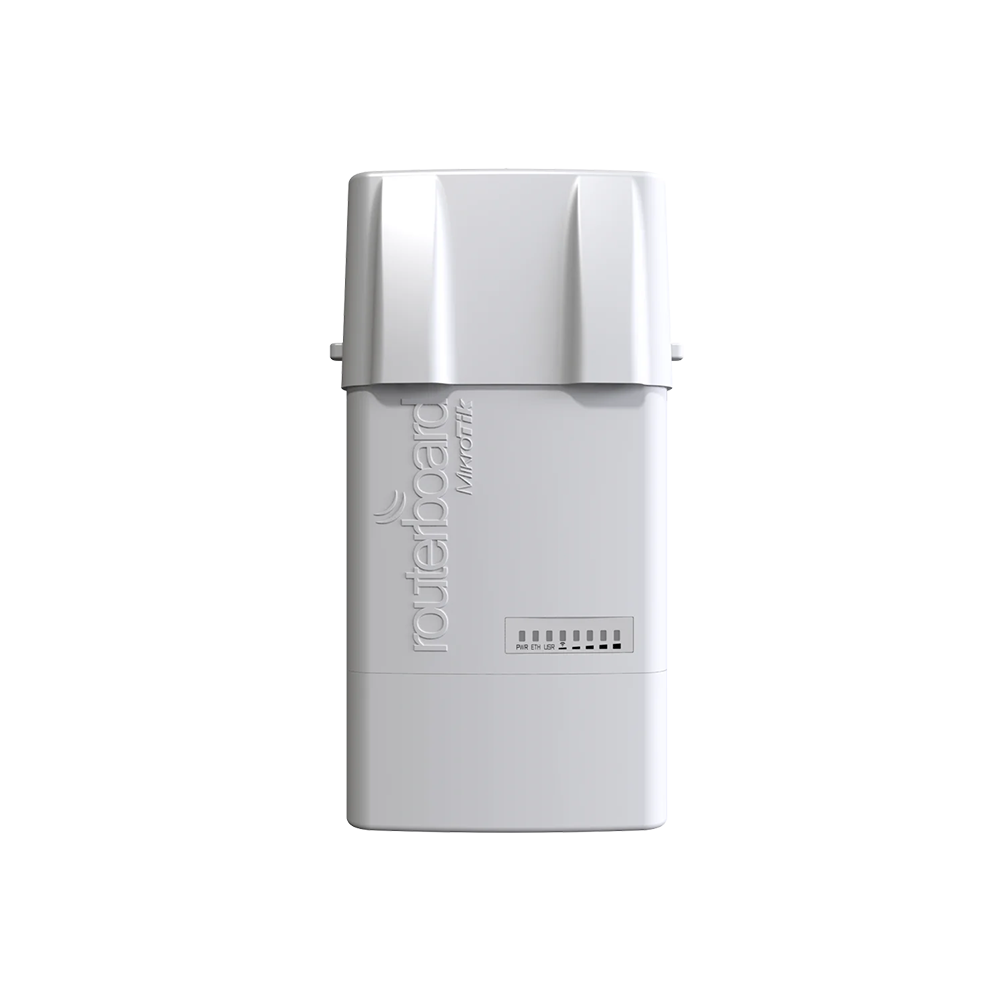

The NetBox is a dual chain outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).
The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
Product specifications
| Details | |
|---|---|
| Product code | RB911G-5HPacD-NB |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless chip model | QCA9882 |
| Wireless standards | 802.11a/n/ac |
| PoE in | Yes |
| Supported input voltage | 8 V – 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Operating System | RouterOS |
| License level | 4 |
| CPU | QCA9557 |
| Max Power consumption | 11.5W |
| Number of chains | 2 |
| Storage type | NAND |
| Storage size | 128 MB |
Wireless specifications
| 5 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 31 | -96 | 1259 |
| 54MBit/s | 27 | -81 | 501 |
| MCS0 | 30 | -96 | 1000 |
| MCS7 | 27 | -77 | 501 |
| MCS9 | 22 | -72 | 158 |
wireless parameters may be limited in software, depending on your local regulatory limitations
