airFiber 3X

airFiber, 500 Mbps Backhaul, 3 GHz

Disponueshmëria : Në stok

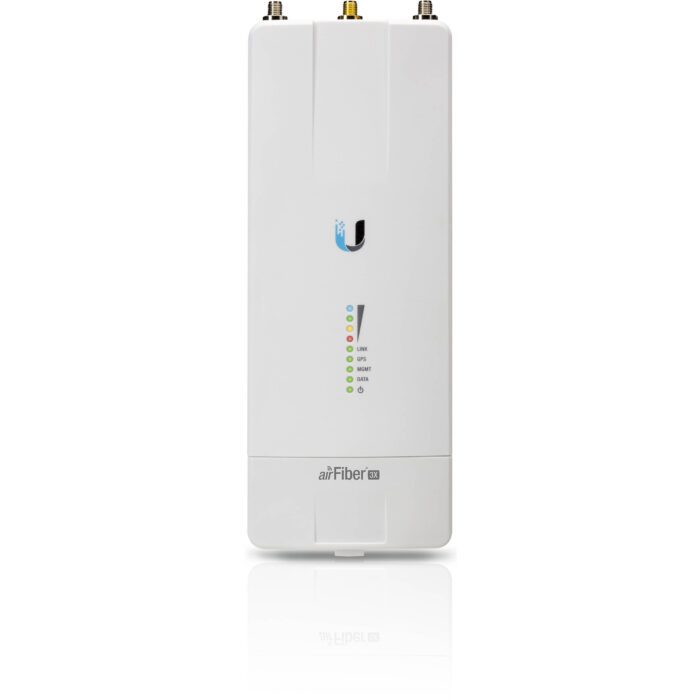

Ubiquiti Networks AF-3X  is part of the airFiber X family of point-to-point backhaul radios. It operates on the 3GHz frequency, offering interference-free operation. A license is required and must be licensed with the FCC to operate this radio. Utilizing INVICTUS, this radio features a processing engine that surpasses all the limitations inherent to generic Wi-Fi chips. This helps to provide superior performance, long range capability, DFS flexibility, and higher delivered throughput.

Optimized Performance
Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long distance outdoor applications.

Carrier Backhaul for the World
The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-3X.

Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Product Specifications
• Dimensions: 224 x 82 x 48mm (8.82 x 3.23 x 1.89″)
• Weight: 0.35kg (0.77lbs)
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) / (1) SMA Weatherproof (GPS)
• GPS Antenna: External, Magnetic Base
• Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
• Power Method: Passive Power over Ethernet. Pins 1,2,4,5 / Pins 7,8,3,6-
• Max. Power Consumption: 17W @ Max. Power/Duty Cycle
• Supported Voltage Range: 19-29VDC
• Mounting: airFiber X Mount (Rocket Mount Compatible) / GPS Pole Mount (included)
• Certifications: CE, FCC, IC
• Operating Temperature: -40 to 55°C (-40 to 131°F)
• Data Port: (1) 10/100/1000 Ethernet port
• Management Port: (1) 10/100 Ethernet port
• Processor: INVICTUS IC
• Maximum Throughput: 525Mbps
• Maximum Range: 200 km
• Encryption: 128-bit AES
• OS: airOS F
• Wireless Modes: Master/Slave
• Frequency Range: 3300 – 3900MHz
• Max. Conducted TX Power: 29dBm
• Frequency Accuracy: ±2.5ppm without GPS Synchronization / ±0.2ppm with GPS Synchronization

Product Includes:
• 1 x airFiber AF-3X
• 1 x GPS pole mount
• 1 x 24V, 1A PoE adapter
• 1 x External GPS antenna
• 1 x Metal strap
• 2 x Cable ties
• 1 x Power cord
• 1 x Quick Start Guide

User Manuals:
AF-3X User Guide
AF-3X Quick Start Guide
