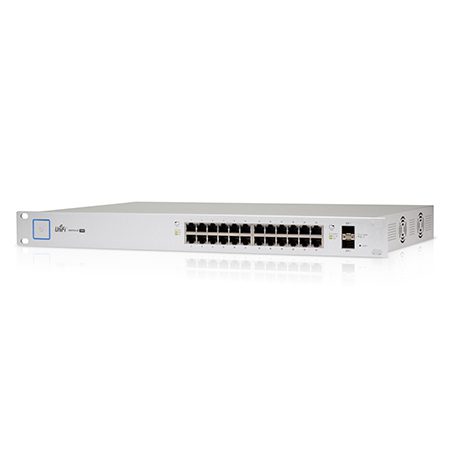

UniFi Switch 24 500W

620.86

US-24-500W – UniFi Switch, 24-Port, 500W

      Specification

  • Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24″)
  • Weight 3.7 kg (8.16 lb)
  • Total Non-Blocking Throughput 26 Gbps
  • Switching Capacity 52 Gbps
  • Forwarding Rate 38.69 Mpps
  • Max. Power Consumption US-24-500W – 500W
  • Power Method 100-240VAC/50-60 Hz, Universal Input
  • Power Supply: AC/DC, Internal, 500W DC
  • LEDs Per Port
    Serial Console Port – N/A
    RJ45 Data Ports – PoE, Speed/Link/Activity
    SFP Data Ports – Speed/Link/Activity
  • Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
  • Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications CE, FCC, IC
  • Rackmount Yes, 1U High
  • ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature -5 to 40° C (23 to 104° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Shock and Vibration ETSI300-019-1.4 Standard

PoE Per Port

  • PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • 24VDC Passive PoE (Pins 4, 5+; 7, 😎
  • Max. PoE+ Wattage per Port by PSE 34.2W
  • Voltage Range 802.3at Mode 50–57V
  • Max. Passive PoE Wattage per Port 17W
  • 24V Passive PoE Voltage Range 20-27V

UBIQUITI DATASHEET

UniFi Switch 24 500W
