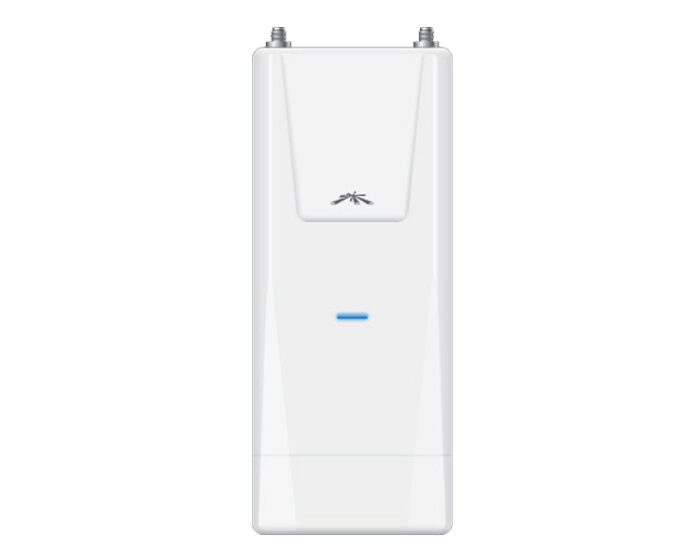

UniFi AC Outdoor AP (EOL)


UAP-AC-Outdoor – UniFi AP, AC, Outdoor

DATASHEET

150.00

Specification

  • Dimensions 340 x 180 x 65 mm
  • Weight 1.55 kg (with Wall Mount) 2 kg (with Pole Mount)
  • Networking Interface (2) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • 2.4 GHz Antenna – Integrated 5 dBi Omni (Supports 3×3 MIMO with Spatial Diversity)
  • 5 GHz Antenna- Integrated 5 dBi Omni (Supports 3×3 MIMO with Spatial Diversity)
  • Wi-Fi Standards 802.11 a/b/g/n/ac
  • Power Method: Passive Power over Ethernet (48V), 802.3at Supported (Supported Voltage Range: 39 to 57VDC)
  • Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included)
  • Maximum Power Consumption: 22 W
  • 2.4 GHz and 5 GHz Maximum TX Power – 28 dBm
  • BSSID Up to Four Per Radio
  • Power Save Supported
  • Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
  • Certifications CE, FCC, IC
  • Mounting Wall and Pole (Kits Included)
  • Operating Temperature -30 to 60 °C
  • Operating Humidity 5 – 80% Non-Condensing

Advanced Traffic Management

  • VLAN 802.1Q
  • Advanced QoS Per-User Rate Limiting
  • Guest Traffic Isolation Supported
  • WMM Voice, Video, Best Effort, and Background
  • Concurrent Clients 200

Supported Data Rates (Mbps)

  • 802.11a – 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n – 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
  • 802.11ac – 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
  • 802.11b – 1, 2, 5.5, 11 Mbps
  • 802.11g – 6, 9, 12, 18, 24, 36, 48, 54 Mbps
