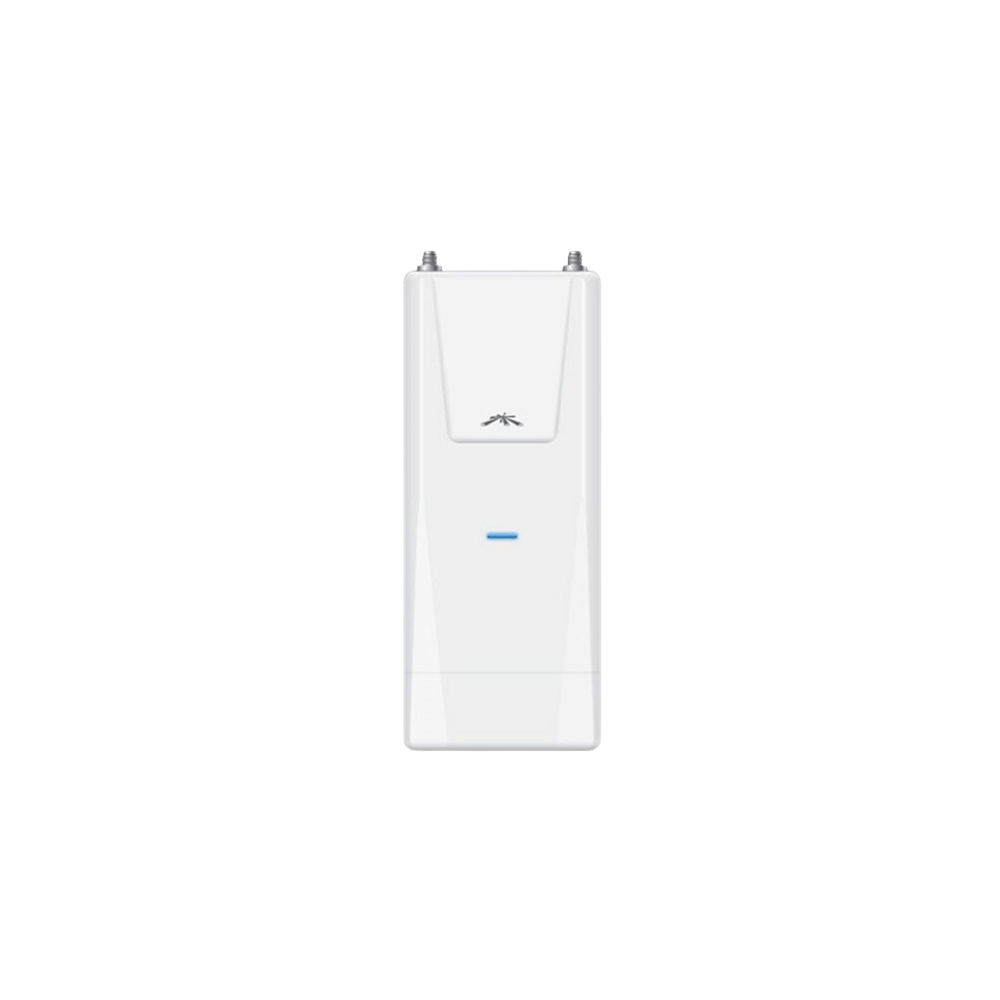

UniFi AP Outdoor+

UAP-Outdoor+ – UniFi AP, Outdoor+, xRF

        Specification

  • Dimensions 205 x 83 x 37 mm
  • Weight 250 g (without Antennas) 294 g (with Antennas)
  • Networking Interface (2) 10/100 Ethernet Ports
  • Buttons: Reset
  • Antennas: (2) External 5 dBi Omni Antennas Included, 191 mm (Length), 13 mm (Diameter)
  • Wi-Fi Standards 802.11 b/g/n
  • Power Method: Passive Power over Ethernet (48V), 802.3af Supported
  • Power Supply: 48V, 0.5A PoE Adapter (Included)
  • Maximum Power Consumption: 8 W
  • 2.4 GHz and 5 GHz Maximum TX Power – 28 dBm
  • BSSID Up to Four Per Radio
  • Power Save Supported
  • Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
  • Certifications CE, FCC, IC
  • Mounting Wall/Ceiling (Kits Included)
  • Operating Temperature -30 to 65 °C
  • Operating Humidity 5 – 95% Non-Condensing

Advanced Traffic Management

  • VLAN 802.1Q
  • Advanced QoS Per-User Rate Limiting
  • Guest Traffic Isolation Supported
  • WMM Voice, Video, Best Effort, and Background
  • Concurrent Clients 100+

Supported Data Rates (Mbps)

  • 802.11n – 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 802.11b – 1, 2, 5.5, 11 Mbps
  • 802.11g – 6, 9, 12, 18, 24, 36, 48, 54 Mbps

UBIQUITI DATASHEET

UniFi AP Outdoor+
