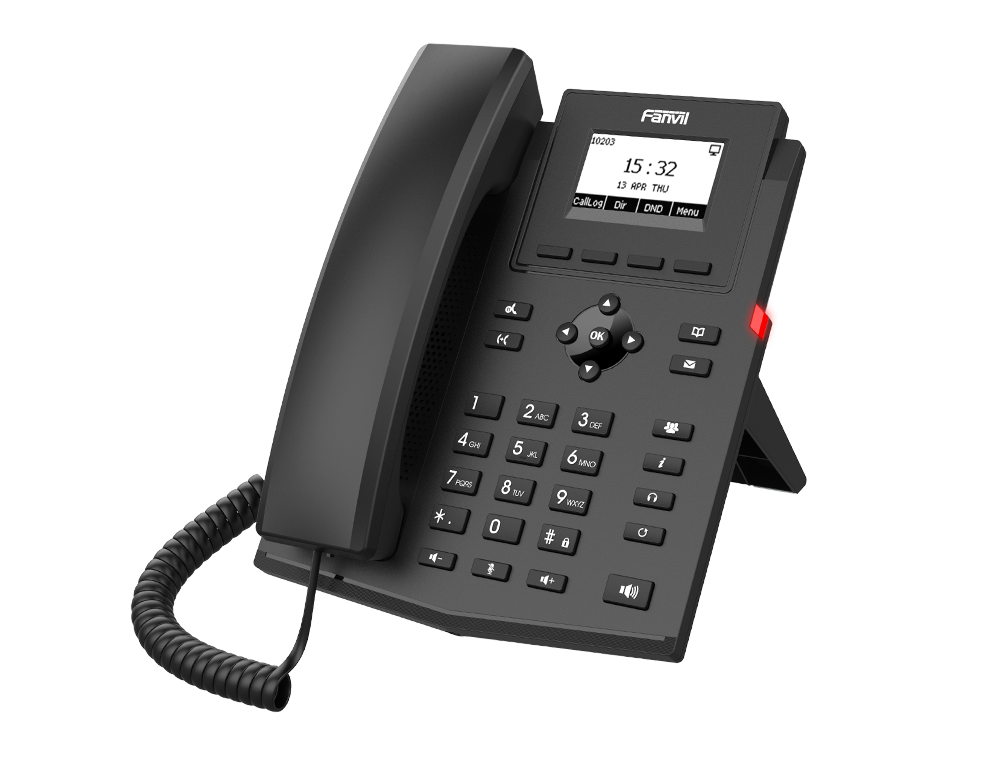

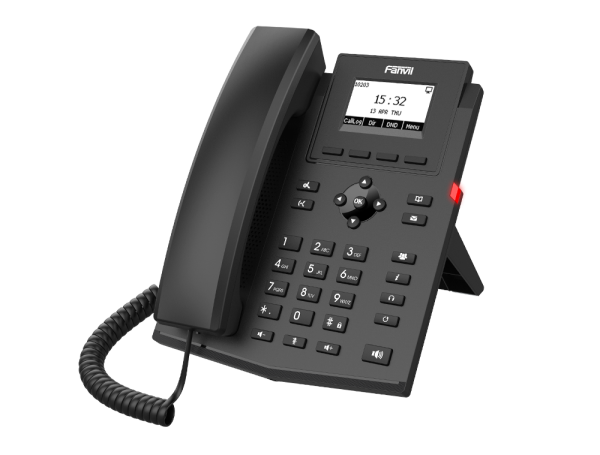

X303-2 Wire IP Phone
Fanvil X303-2 Wire IP Phone is an upgraded version of the original IP phone, featuring a brand-new power and network supply method using a 2-wire connection. This allows for complete reuse of old wiring while offering high-definition voice, a 2.4-inch color display, support for 4 SIP accounts, 2-wire power and network supply, multi-party conferencing, and other rich features. Additionally, it supports external EHS wireless headsets and other expansion functions, making it suitable for various enterprise application scenarios and providing an excellent user experience.
45.90 € 50.49 €
-It connects via an RJ11 interface and supports 2-Wire power
and network supply
-2.4-inch 320×240 pixel color display
-Support audio codec G.722 and Opus, HD voice on
speakerphone and handset
-Supports 6-party conferencing and EHS wireless headset
-Supports desktop and wall-mounted installation
Specifications
Scenario Office, Hospital, Apartment
Screen/Keyboard
2.4i-nch color screen 320×204
4 Soft-Keys
9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook
/MWI/Headset/Redial/Hands-free)
3 Line keys (with LED indicator light)
4 Navigation keys + 1 OK key
12 Standard phone digits keys
3 Volume control keys (Up/Down/Mute (Microphone))
Body Plastic
Color Black
Status Light 1（Red）
Interface
Wire interface（6P2C RJ11 interface）
Power interface
RJ9 interface（Handset x1, Headset x1）
Security Slot x1
Power
DC 12V/1A
2-Wire PoE Switch supply power
2-
Size
Desktop Stand (45°): 169×203.6×172.7 mm
Desktop Stand (50°): 169x194x181 mm
Wall mountable: 169×113.4×207.6 mm
Working Temperature 0℃~+45℃
Installation
Desktop
Wall mountable (Need to purchase accessories separately)
Functional Capabilities
Protocols
SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP,
OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256
Video
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
/ Noise Reduction (NR) / Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
VQM voice quality monitoring
Network
IP Mode: IPv4/IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Phone Functions
Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000 entries)
Call logs (In/Out/Missed, 600 entries)
Blocked List/Allowed List
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
uaCSTA
Call Functions
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (With server)
6-way Conference
Hot Line
Hot desking
Deployment
Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog
