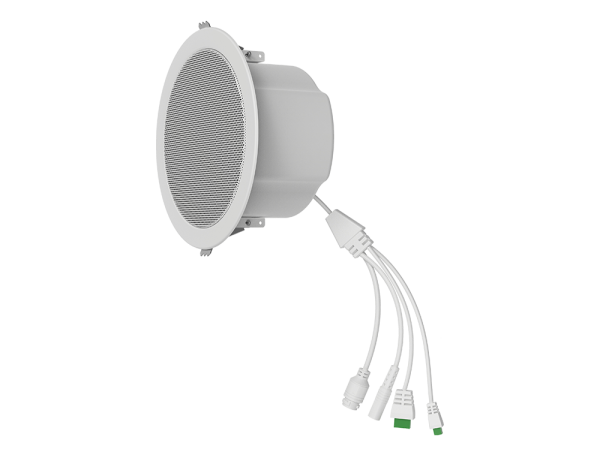

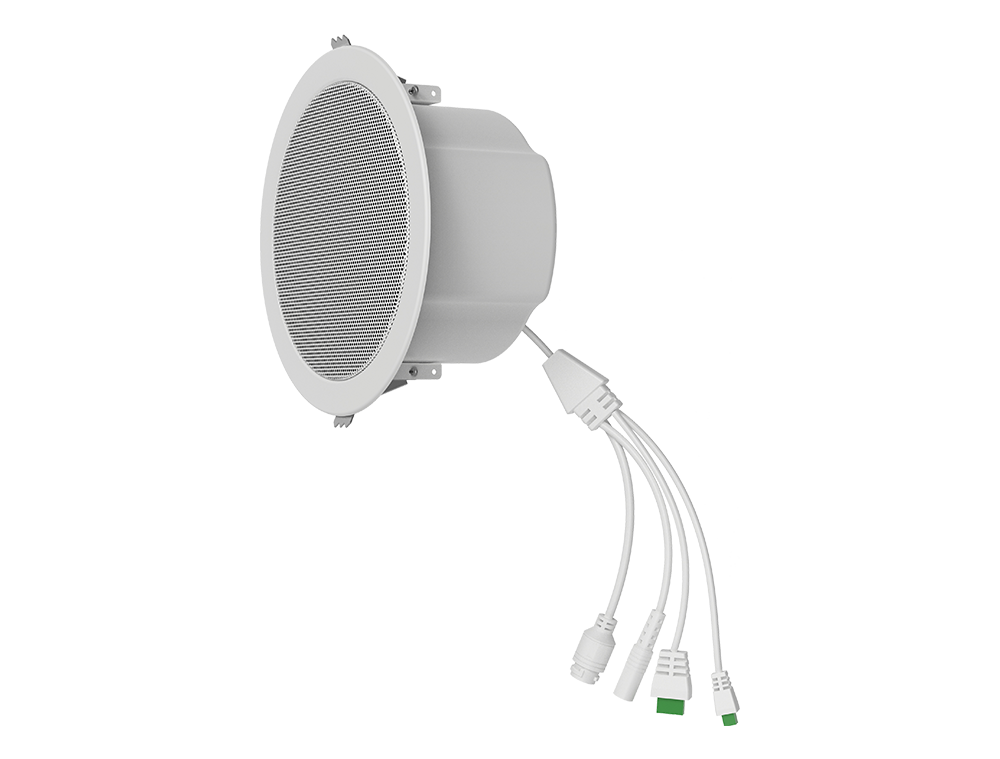

A201 Ceiling Speaker

Basic Functions
⚫ 2 SIP lines
⚫ Ceiling-mounted installation
⚫ 8Ω10W speaker
⚫ Built-in microphone, support monitoring, self-test, intercom
application
⚫ Support HD voice, using G.722 and Opus encoding
⚫ Support lossless sound quality broadcasting, MP3 and Wav
encoding
⚫ Support 20 multicast partitions
⚫ Built-in 24MB audio file storage space, support scheduled task
broadcast
⚫ Customize audio files for emergency notification and alarm
⚫ 1 short circuit input detection, 1 short-circuit output, linkage
security alarm device
⚫ Support external IP camera video linkage
⚫ Support Web remote adjustment volume
⚫ Support PoE/PoE+ power supply or DC 12V~24V/2A power
supply
⚫ adaptive 10/100 Mbps network port
Device Functions
⚫ Default auto answer (Auto-answering)
⚫ Network time synchronization
⚫ Remote volume adjustment
⚫ Dynamic multicast function
⚫ Action URL / Active URI
Audio
⚫ Audio codecs: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K,
G.722, Opus
⚫ DTMF: In-band, out-of-band (RFC2833/SIP INFO)
⚫ Speaker:
➢ Frequency response: 250~20KHz
➢ Sensitivity: 90±3dB（1m/1W）
➢ Impedance: 8Ω
➢ MAX SPL: 100dB
➢ Speaker power
PoE：6W
PoE+：10W
DC 12V~24V/2A：10W
⚫ Mic
➢ Omnidirectional microphone
➢ Sensitivity: -38±3dB, impedance 2.2k ohm, bias voltage 2V
Fanvil A201 ceiling speaker is a commercial-grade IP audio terminal. It can function
independently as an audio system or integrate with external systems such as
unified communication systems, video surveillance systems, Fanvil broadcast &
intercom system, access control systems, digital billboards, and fire alarm systems,
facilitating unified configuration and operation.
Highlights
□√ Excellent sound quality: Support HD intercom, lossless music broadcast
□√ Flexible integration: Support standard SIP protocol, HTTP API, short circuit input
and output and video linkage, easy to integrate with third-party systems
□√ Easy to manage: Support Web, DM software, FDMCS and Fanvil broadcast
intercom APP management equipment
□√ Functional integration: Set paging broadcast, timing broadcast, emergency
broadcast, two-way intercom, self-check/monitoring, priority management and
other functions in one
□√ Multi-mode: Serverless mode, converged communication mode, Fanvil broadcast
intercom system mode and external linkage mode
Fanvil A201 Ceiling Speaker
Network
⚫ 10/100 Mbps
⚫ Network mode: IPv4/IPv6/IPv4&IPv6
⚫ IP Setting: Static IP / DHCP / PPPoE
⚫ VPN: L2TP / OpenVPN
⚫ VLAN
⚫ LLDP
⚫ QoS
Protocols
⚫ SIP2.0 over UDP/TCP/TLS
⚫ RTP/RTCP/SRTP
⚫ STUN
⚫ DHCP
⚫ IPv6
⚫ PPPoE
⚫ L2TP
⚫ OpenVPN
⚫ SNTP
⚫ FTP/TFTP
⚫ HTTP/HTTPS
⚫ TR-069
Deployment & Management
⚫ Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PnP/TR-069
⚫ Web management portal
⚫ Web-based Packet-dump
⚫ Configuration export/import
⚫ Firmware upgrade
⚫ Syslog
Physical Specifications
⚫ DC 12V~24V/2A port×1
➢ circular DC power jack
⚫ RJ45 port×1: connect the Internet or LAN
⚫ Short circuit input port×1
⚫ Short circuit output port×1
➢ Max support: 30V/2A
➢ Terminal socket
⚫ Working temperature: -25℃~ 55℃
⚫ Storage temperature: -30℃~ 60℃
⚫ Working humidity: 10~95%
⚫ Installation: Ceiling-mounted installation
⚫ Color: White
⚫ Device overall dimensions: Φ200*90mm
⚫ Gift box dimensions: 200*200*105 mm
⚫ Outer CTN dimensions: 630*425*255 mm(12PCS)
