Y501-Y Series SIP Healthcare Intercom

Generic
⚫ 2 SIP Lines
⚫ Auto answer
⚫ HD Voice
⚫ PoE Enabled
⚫ Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
⚫ Intercom function
⚫ External Power Supply (Optional)
Intercom Function
⚫ Support customized DSS keys
⚫ Support wireless button (Optional)
⚫ Network Time Synchronization
⚫ Built-in Wi-Fi
➢ 2.4G, 802.11 b/g/n
➢ 5G, 802.11 a/n
⚫ Action URL / Active URL
Audio
⚫ Narrowband Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
⚫ Wideband Codec: G.722, Opus
⚫ Duplex intercom with Acoustic Echo Canceller (AEC)
⚫ Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
/ Background Noise Estimation (BNE)
⚫ Packet Loss Concealment (PLC)
⚫ Dynamic Adaptive Jitter Buffer up to 300ms
⚫ DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

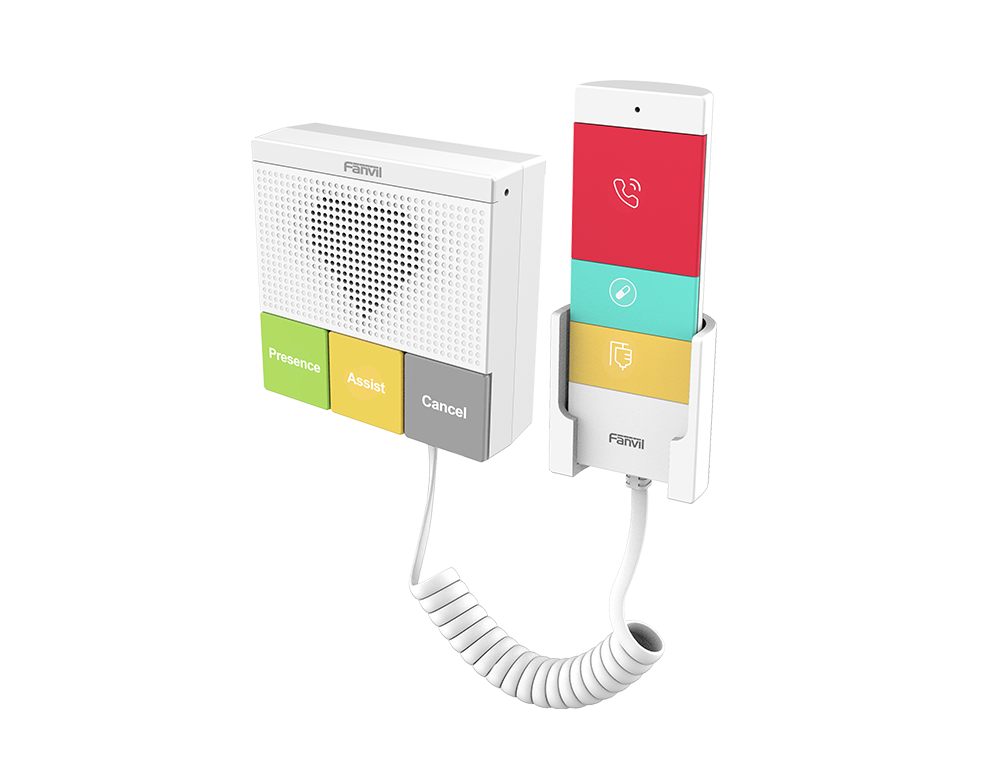

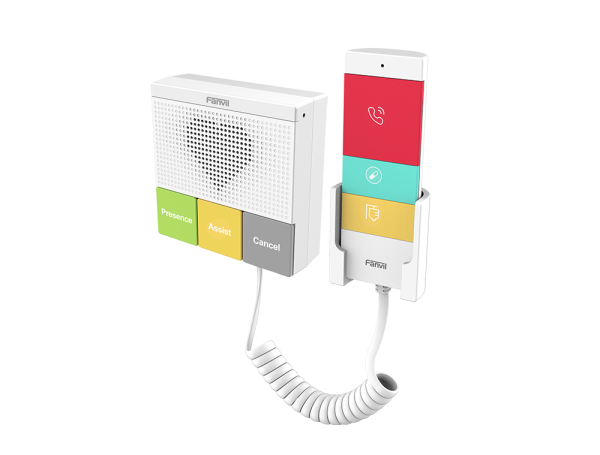

Fanvil Y501-Y series SIP healthcare intercoms are specially designed for home-based
care, nursing house and other indoor application, realizing the emergency
communication, security protection, broadcasting, etc. They feature HD audio, 2 SIP
accounts, detachable DSS keys, IP54 waterproof and dustproof, and built-in 2.4G &
5G Wi-Fi(Y501W-Y/Y501W-Y-E). Y501-Y series provide different installation modes
of standard 86 box embedded and wall mountable, bringing you a timely healthcare
communication experience.
Highlights
□√ Support HD audio with codec G.722 and Opus
□√ Support specific 433MHz wireless button
□√ 2 SIP accounts and 6 antibacterial material detachable function buttons
□√ Call types: Nurse Call Normal, Nurse Call Emergency, Toilet Emergency Call,
Staff Assistance Call, Staff Emergency Call, Code Blue Call, Staff Presence
□√ Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
□√ Built-in 1 short circuit input/output interface
□√ IP54 waterproof and dustproof
□√ Support PoE power supply
□√ Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded
installation(Y501-Y-E/Y501W-Y-E)
Model Network Button PoE Wi-Fi
Y501-Y 10/100Mbps 6  ×
Y501W-Y 10/100Mbps 6  2.4G&5G Wi-Fi
Y501-Y-E 10/100Mbps 6  ×
Y501W-Y-E 10/100Mbps 6  2.4G&5G Wi-Fi
Networking
⚫ Physical: 10/100 Mbps Ethernet
⚫ WIFI: 2.4G & 5G (Y501W-Y/Y501W-Y-E)
⚫ IP Mode: IPv4/IPv6/IPv4&IPv6
⚫ IP Configuration: Static / DHCP / PPPoE
⚫ Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
⚫ VPN: L2TP / OpenVPN
⚫ VLAN
⚫ LLDP
⚫ QoS
Protocols
⚫ SIP2.0 over UDP/TCP/TLS
⚫ RTP/RTCP/SRTP
⚫ STUN
⚫ DHCP
⚫ IPv6
⚫ LLDP
⚫ PPPoE
⚫ L2TP
⚫ OpenVPN
⚫ SNTP
⚫ FTP/TFTP
⚫ HTTP/HTTPS
⚫ TR-069
Deployment & Maintenance
⚫ Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
⚫ Web Management Portal
⚫ Web-based Packet Dump
⚫ Configuration Export / Import
⚫ Firmware Upgrade
⚫ Syslog
Physical Specifications
⚫ Y501-Y Series: 6 DSS buttons (Finish, Nursing, Assistant, Call,
Dressing change, Infusion)
⚫ Up to 10 wireless buttons supported
⚫ Status indicator light: Red(registration failed、network
anomaly)、Green(registration successful、call)
⚫ 1 RJ45 port
⚫ 1 short circuit input interface
⚫ 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
⚫ Power: DC12V/1A or POE
⚫ Power Consumption (Adapter)：
➢ 0.94W~1.98W(Y501-Y/Y501-Y-E)
➢ 1.42W~2.35W(Y501W-Y/Y501W-Y-E)
⚫ Power Consumption (PoE)：
➢ 1.48W~2.37W(Y501-Y/Y501-Y-E)
➢ 1.99W~3.05W(Y501W-Y/Y501W-Y-E)
⚫ Housing material: ABS
⚫ 433 wireless button specification：
➢ communication mode：FSK
➢ working frequency：433MHZ
➢ communication protocol：Ebelong1.1
⚫ Installation: Indoor installation
➢ Standard 86 Box Embedded
➢ Wall Mountable
⚫ Color: White
⚫ working temperature: -10 ~50 °C
⚫ Storage temperature: -20 ~ 50 °C
⚫ Relative humidity: 10% – 90%
⚫ N.W/CNT：3.97kg
⚫ G.W/CNT：4.4 kg
⚫ Equipment Dimension:
➢ 87.56 x 87.56 x 30mm (Wall Mountable)
➢ 87.56 x 87.56 x 21.5mm (86 Box Embedded)
⚫ Packing Dimension: 234x168x44 mm
⚫ Outer CTN Dimension: 356x245x254mm (10pcs)
