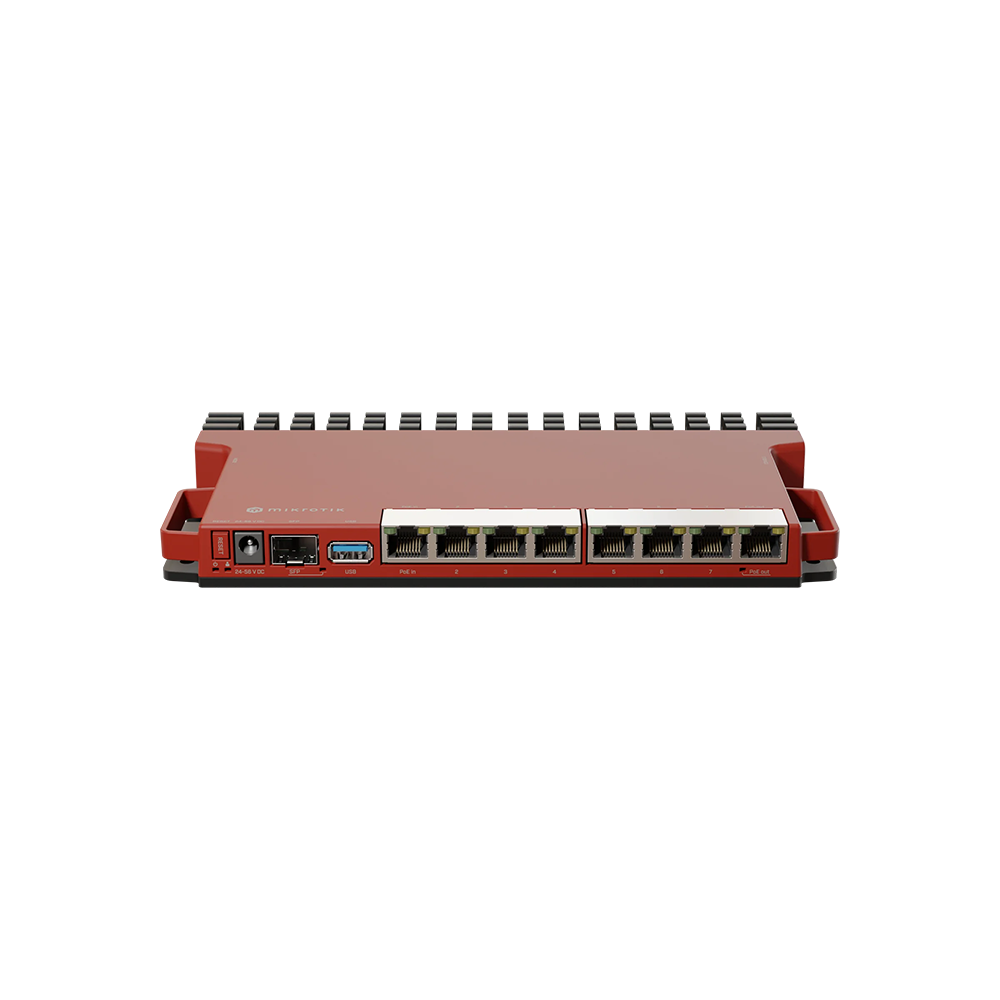

L009UiGS-RM

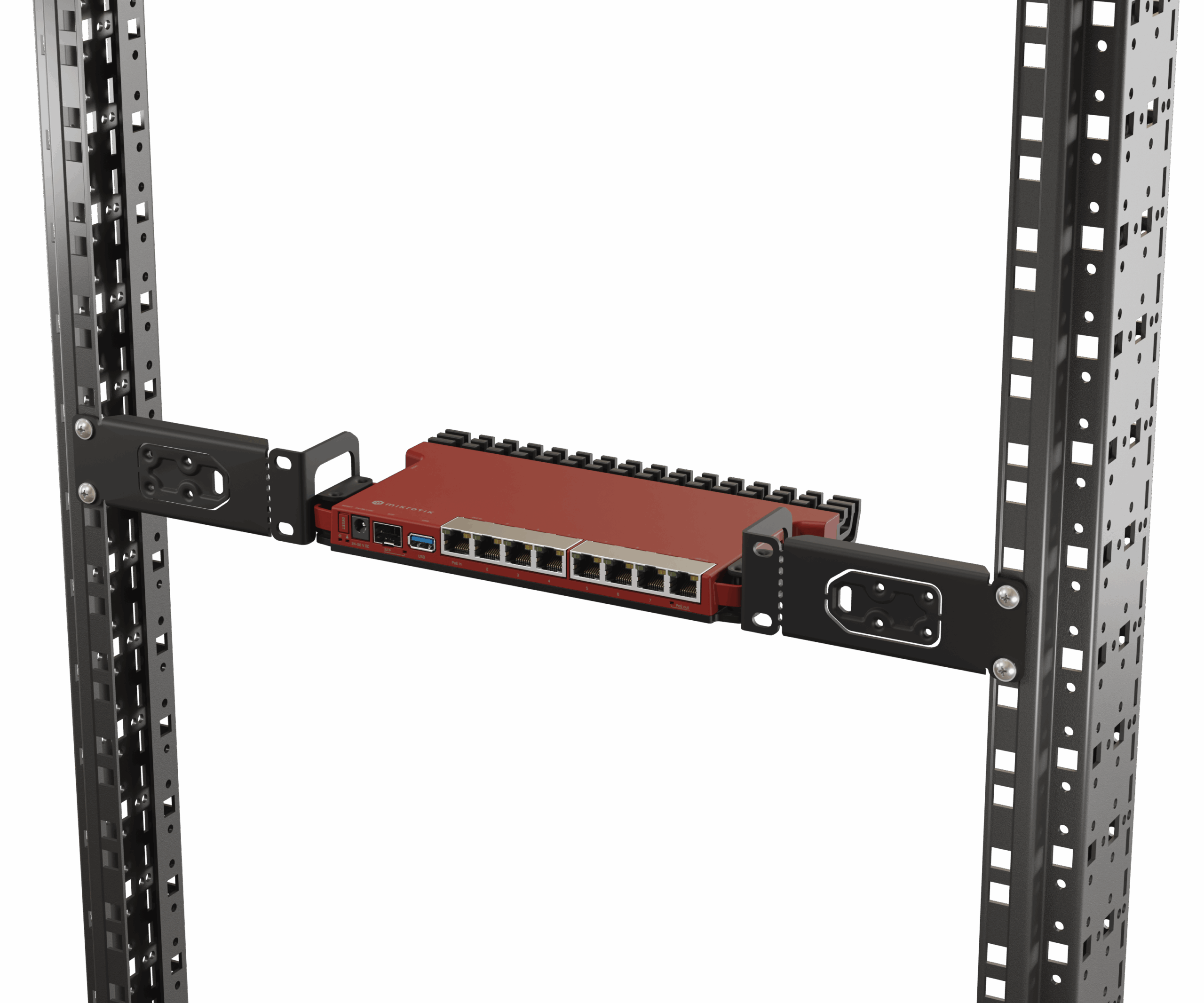

L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.

DATASHEET

122.84

The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011. Even the red color scheme and the appealing price!

There are three main reasons to choose the L009: better performance, more features, and some interesting quality-of-life improvements. Let’s start with the raw power and performance improvements.

L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters. And L009 IPsec hardware encryption ensures lower CPU usage without measurable performance degradation compared to the regular driver. You can expect around 60-90 Mbps throughput using a 1400 byte packet size.

SKU: 9078 Categories: , ,

Specifications

Details
Product code L009UiGS-RM
Architecture ARM
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-56 V
Max power consumption 40 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V

PoE-out

Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1 A

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1

Fiber

Details
SFP ports 1 (2.5G supported)

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
