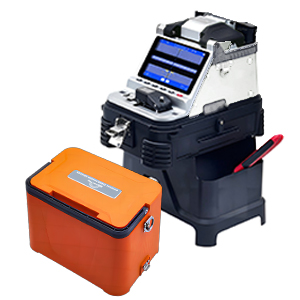

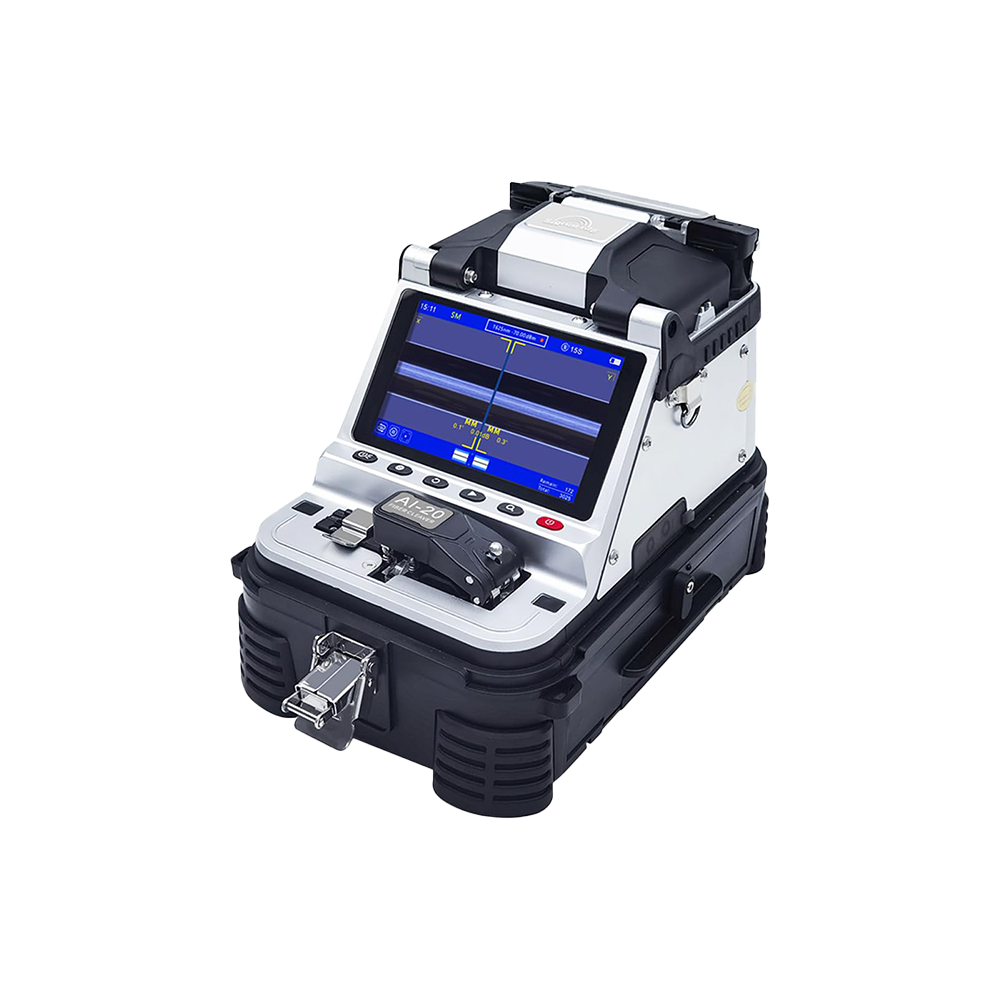

Optical fiber fusion splicer AI 20

Optical fiber fusion splicer AI 20

1,431.50 €

Koha e arritjes së produktit : 08/10/2025 - 09/10/2025
  • 【Full Link Integration Design】AI-20 is the world’s fourth-generation fiber optic fusion splicer, which combines an electric splitter and fusion splicer with an 8 in 1 signal fire stripper, and is a fourth-generation trunk fiber optic fusion splicer with a highly integrated link design.
  • 【Fast Splicing and Heating】AI-20 Fiber Optic Fusion Splicer features a high power 6-motor high-speed motor that delivers fast splicing in 6 seconds and heating in only 15 seconds, providing excellent performance with up to 240 continuous splices and heat-ups.
  • 【Built in OPM&VFL Function】Equipped with both OPM and VFL functions to effectively measure connection loss, verify continuity, and help evaluate the of fiber optic link transmissions.The OPM has a test range of -50+30dbm, and can test six wavelengths, namely 850nm; 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm. The VFL testing distance can reach 10km, and can be freely switched in three states: 2Hz flashing and steady on mode.
  • 【3-In-1 Universal Fiber Holder】The 3-in-1 fiber optic fusion splicer bracket can be used for jumper fiber(pigtail), drop cable and bare fiber.In addition to that, it also provides support for SM, MM, bare fiber, pigtail, Drop cable , multi fiber cable.
  • 【High-density Built-in Cutting Knives】The AI-20 Fiber Optic Fusion Splicer combines a fiber optic cleaver, a waste fiber cassette and a fiber optic cleaning brush into one unit. After placing the fiber, the cover will close and cut automatically.
  • 【Wide range of application scenarios】The latest generation of fiber optic fusion splicers can not only be applied to telecom, radio and television operators; it can also be used for post and telecommunications, railroad engineering companies and national units of fiber optic cable line construction, line maintenance, emergency repair and other help, but also involves security monitoring and scientific research institutes, research, teaching and so on.

    New Model Al-10A the Fourth Generation Trunk Line Fiber Optic Fusion Splicer Six Motor Core Alignment Fiber Optic Fusion Splicer Automatic FTTH Fiber Optic Welding Fusion Splicer Fusion 6s Splicing 15s Heating.

    Our fiber optic fusion splicer is a new generation of fully link-integrated design, providing multi-language settings and supporting 10 languages for your convenience.

    Ai-20 Fusion Splicer

    Ai-20 Fusion Splicer

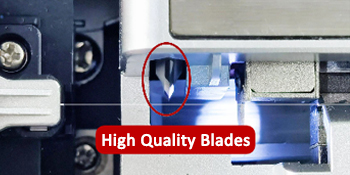

    Built-in Highly Sharp Cleaver

    1.200 grams of clamping force to clamp the fiber

    Ensure that the optical fiber is straight and not damaged.

    2.No blade refacing is required

    Automatic blade rotation Cut points randomly cut optical fibers.

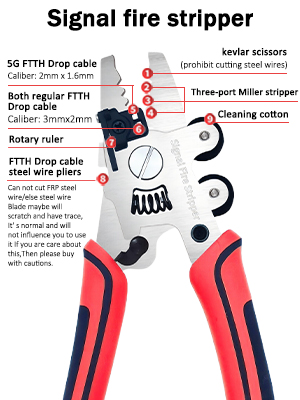

    8-in-1 Fiber Optic Cable Stripper

    1-8 are as follows in order：

    Scissors(prohibit cutting steel wires)

    Miller stripper 1/2/3

    Wire stripping pliers 1 (Caliber: 2×1.6mm)

    Wire stripping pliers 2 (Caliber:3x2mm)

    Rotate the scale

    Cleaning cotton

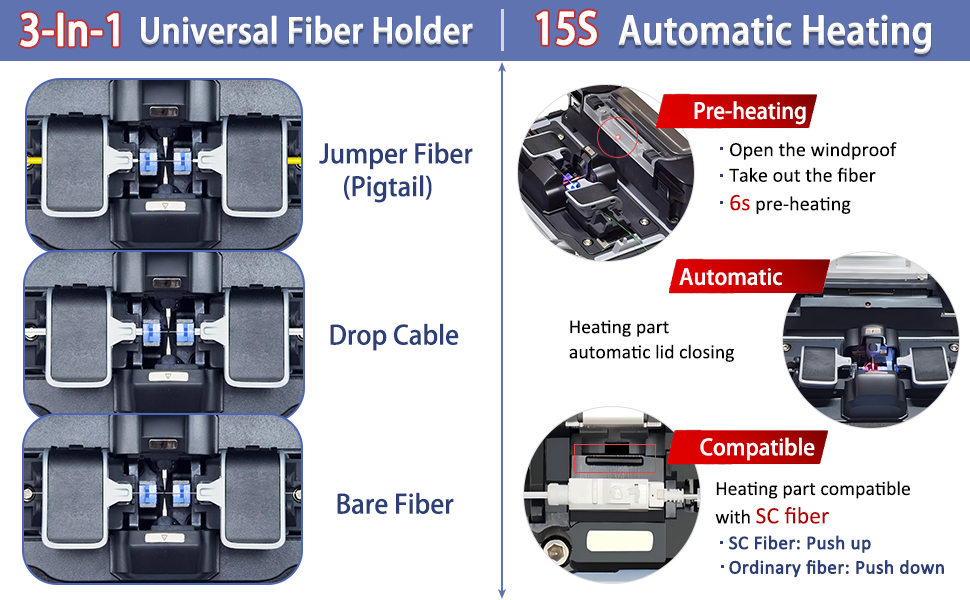

    3-in-1 Fiber Holder & 15s Heating Time

    AI-20 Fiber fusion splicer

    1. 3-In-1 Universal Fiber Holder

    SM, MM, bare fiber, Jumper fiber(pigtail), Drop cable , multi fiber cable

    2. 15S Automatic Heating

    Pre-heating: Successful fiber spliced. When opening the windproof cover to take out the fiber, the machine turns on pre heating for up to 6s.

    Heating part automatic lid closing

    Heating part compatible with SC fiber

    · SC Fiber: Push up

    · Ordinary fiber: Push down

    Details

    Ai-20 Fusion Splicer

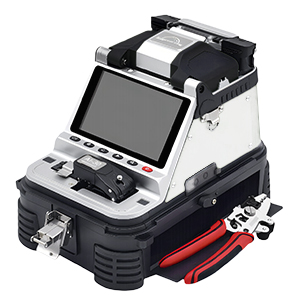

    All-in-one Design

    AI-20 fiber optic fusion splicer integrates electric splitter and fusion splicer into one, which can be used in combination with workbench and work table, not only small size and light weight, but also easy to operate.

    Ai-20 Fusion Splicer

    Equipped With Signal Fire Stripper

    Invisible storage for easy access

    AI-20 is the world’s fourth generation fiber optic fusion splicer, integrating electric splitter, fusion splicer and 8-in-1 signal fire stripper.

    Ai-20 Fusion Splicer

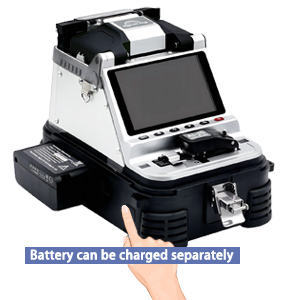

    7800mAh Capacity Lithium Battery

    Dual charging path, the charging time ≤3.5 hours(Battery can also be charged separately);

    In full state,it can continuously weld and heat about 240 cores.

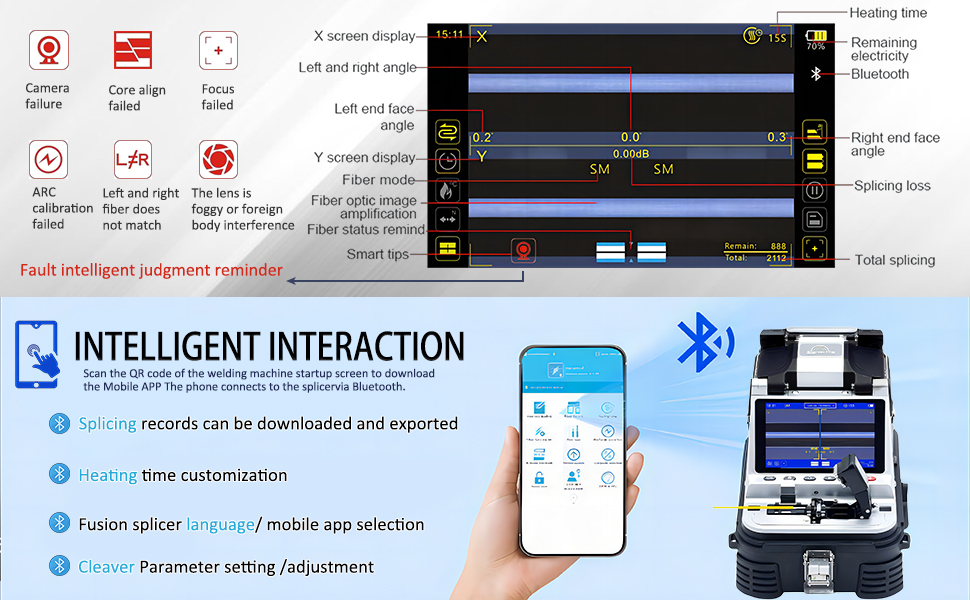

    Display Screen & Bluetooth Connection

    AI-20 Fiber fusion splicer

    1. 5 Inch Tft Color Display Screen

    320X (X or Y axis single display)

    200X (X and Y axis dual display)

    2. Bluetooth Connection

    Read weld logs and export data via Bluetooth via cell phone connection.

    Setting relevant parameters on the cell phone APP, such as selecting the machine language, changing the heating time, selecting the fiber alignment mode, etc. .

    You can effectively manage the welding machine, set the machine’s usage time, the number of welding times, etc. .

    Upgrade the machine software by upgrading the cell phone APP and connecting the machine by Bluetooth.

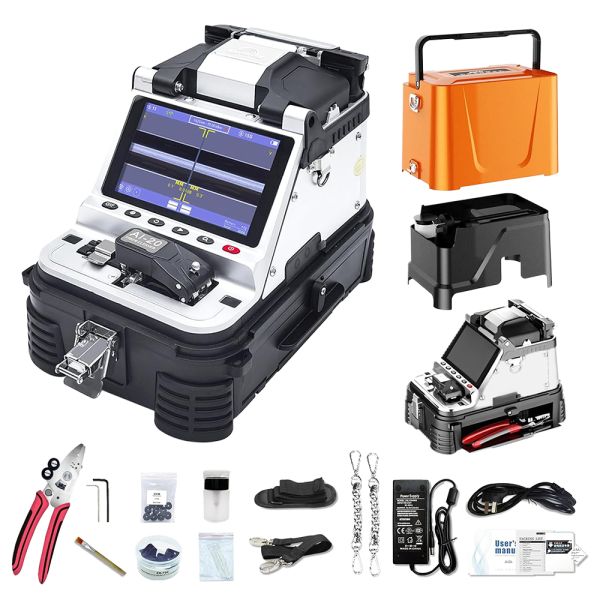

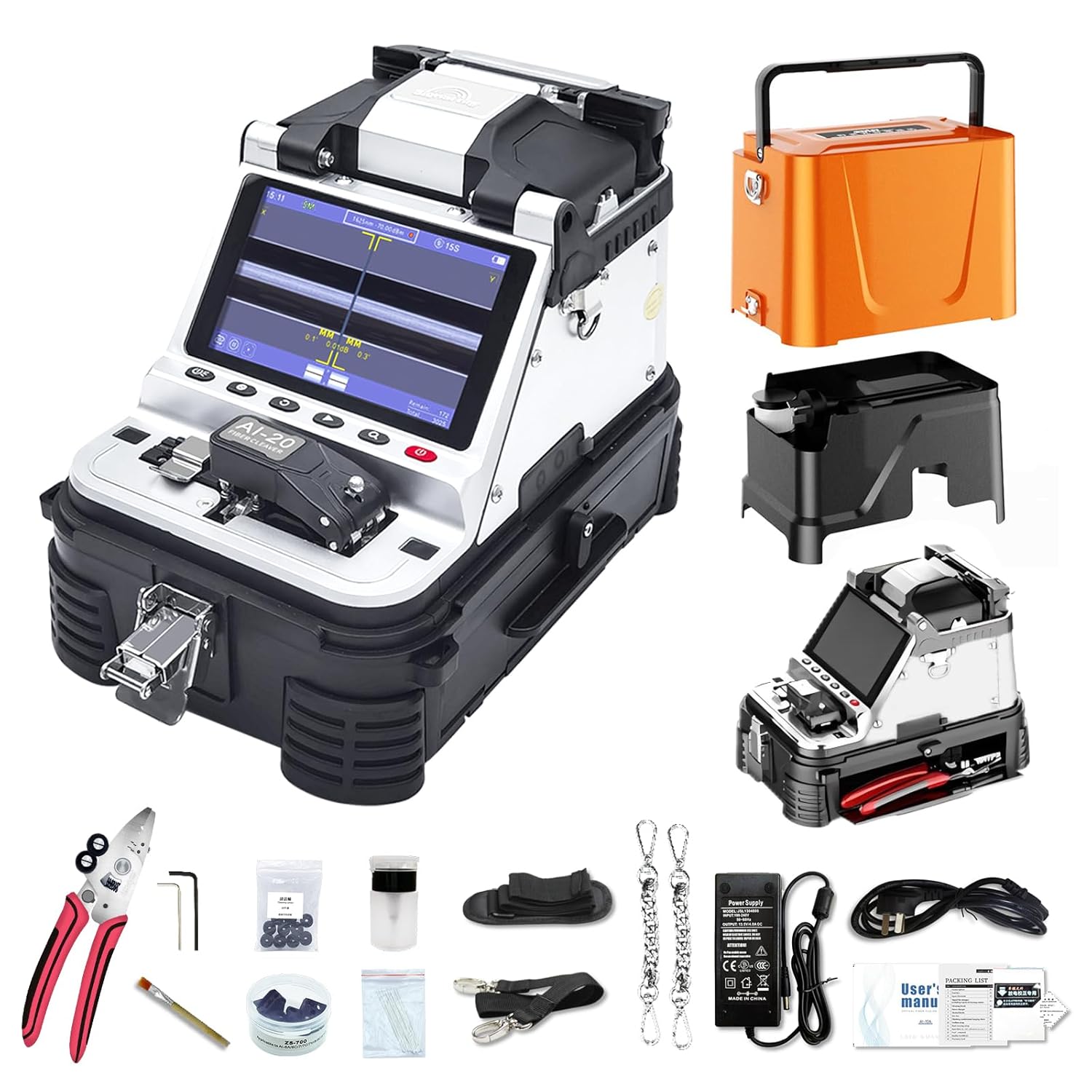

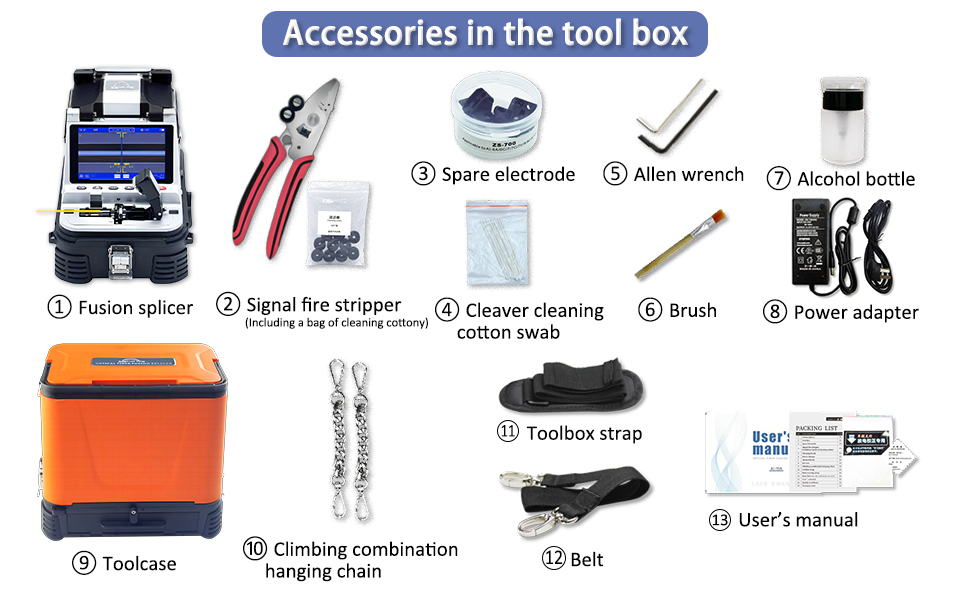

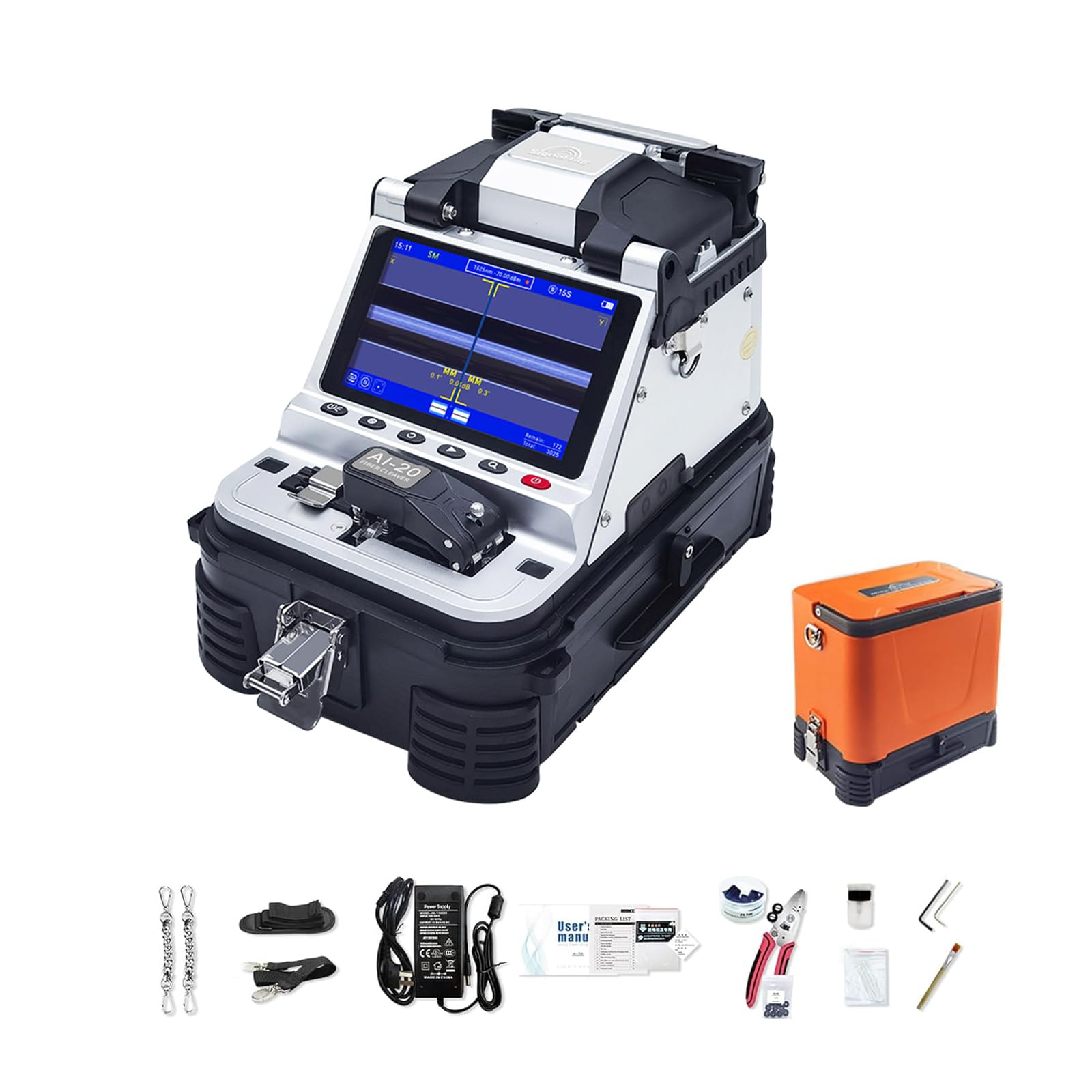

    All Included Tools

    Ai-20 Fusion Splicer

SKU: 99630 Category:

Basic Parameter

Motor number 6 motors; Accurate of fiber alignment: 0.1um
Splicing time 6s
Heating time 15s, can be customized according to the external environment
Fiber type Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible optical fiber
The cladding diameter 80-150um
Splicing loss 0.02dB (SM)、0.01dB (MM) 0.04dB (DS/NZDS)
Splicing mode Automatic focusing core alignment, conventional/high precision splicing
Fiber diameter Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Fiber holder Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable
VFL The machine comes with power: 2Hz flashing and steady on mode
OPM Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm/Measurement range:-50+30dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)
Battery capacity 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 240 cores
Magnification 320x (X or Y axis single display) ，200x (x and Y axis dual display)
Return loss Better than 60 db
The work environment Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s
Power supply Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level
