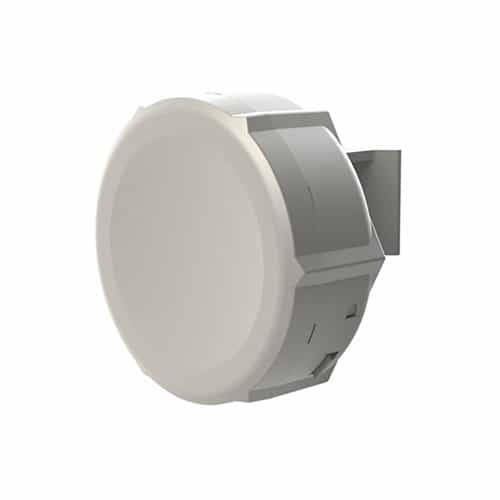

RBSEXTANTG5HPnD – 5GHz Dual Polarity 18dbi Integrated antenna SEXTANTG 5HPnD, RouterOS L3, POE, PSU, pole mount

The SEXTANT is a 18dBi 5GHz antenna with a built in RB911G router. It has two polarizations to give you all benefits of 2×2 MIMO in 802.11n.

Inside is the high power RB911 dual chain wireless device, with high performance, high output power, and a Gigabit Ethernet port, to fully
utilize the benefit of 802.11n high speed wireless.

Easy to use and quick to deploy, SEXTANT is ideal for point to point links.

Package contains SEXTANTG5PHnD, mounting kit, PoE injector, power adapter

Product code RBSEXTANTG-5HPnD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100/1000 Ethernet ports 1
Wireless chip model AR9342
Wireless standards 802.11a/n
Supported input voltage 10 V – 28 V
PoE in Yes
Dimensions Ø250mm, height 90mm, 830g
Operating System RouterOS
Tested ambient temperature -30C to 70C
License level 3
Antenna gain DBI 18
CPU AR9342
Max Power consumption 11W
Number of chains 2
Storage type NAND
Storage size 64 MB
