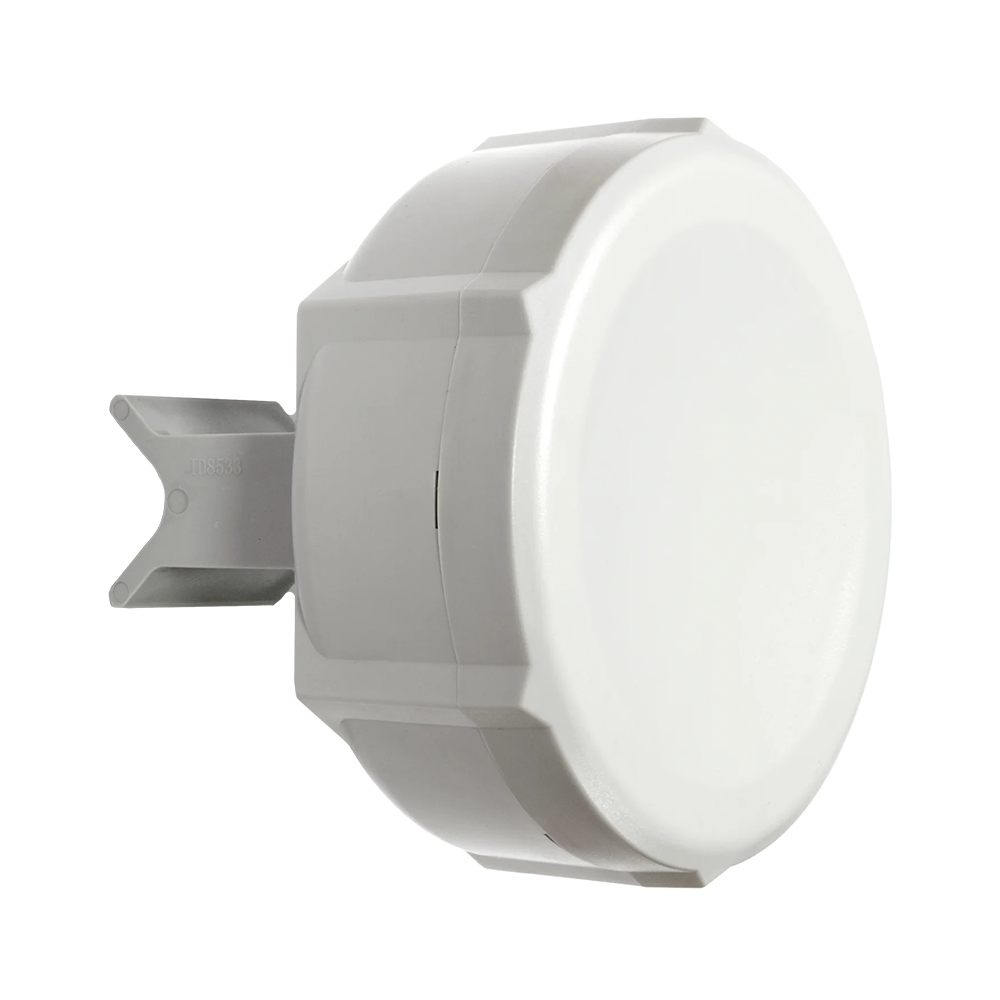

SXT 2
RBSXTG2HnD – 2.4GHz Dual Chain 802.11b/g/n IntegratedSector APSXTG-2HnD, RouterOS L4, GPOE, PSU, pole mount
We are glad to introduce our first complete AP/CPE for 2.4GHz – SXTG2HnD! It’s powerful 60 degrees 2×2 MIMO 10dbi sector antenna with 1600mW wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering outdoor area for hotspot clients.
Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as our popular 5Ghz SXT model.
Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter
SXT install guide:
Product specifications
| Details | |
|---|---|
| Product code | RBSXTG-2HnD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 64 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless chip model | AR9344 |
| Wireless standards | 802.11b/g/n |
| Supported input voltage | 8 V – 30 V |
| PoE in | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 140x140x56mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30C to 80C |
| License level | 4 |
| Antenna gain DBI | 10 |
| CPU | AR9344 |
| Max Power consumption | 11W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
| Details | |
|---|---|
| Product code | RBSXTG-2HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140x140x56mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 10 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 32 | -96 |
| 11MBit/s | 30 | -90 |
| 6MBit/s | 32 | -96 |
| 54MBit/s | 29 | -80 |
| MCS0 | 32 | -96 |
| MCS7 | 28 | -74 |
