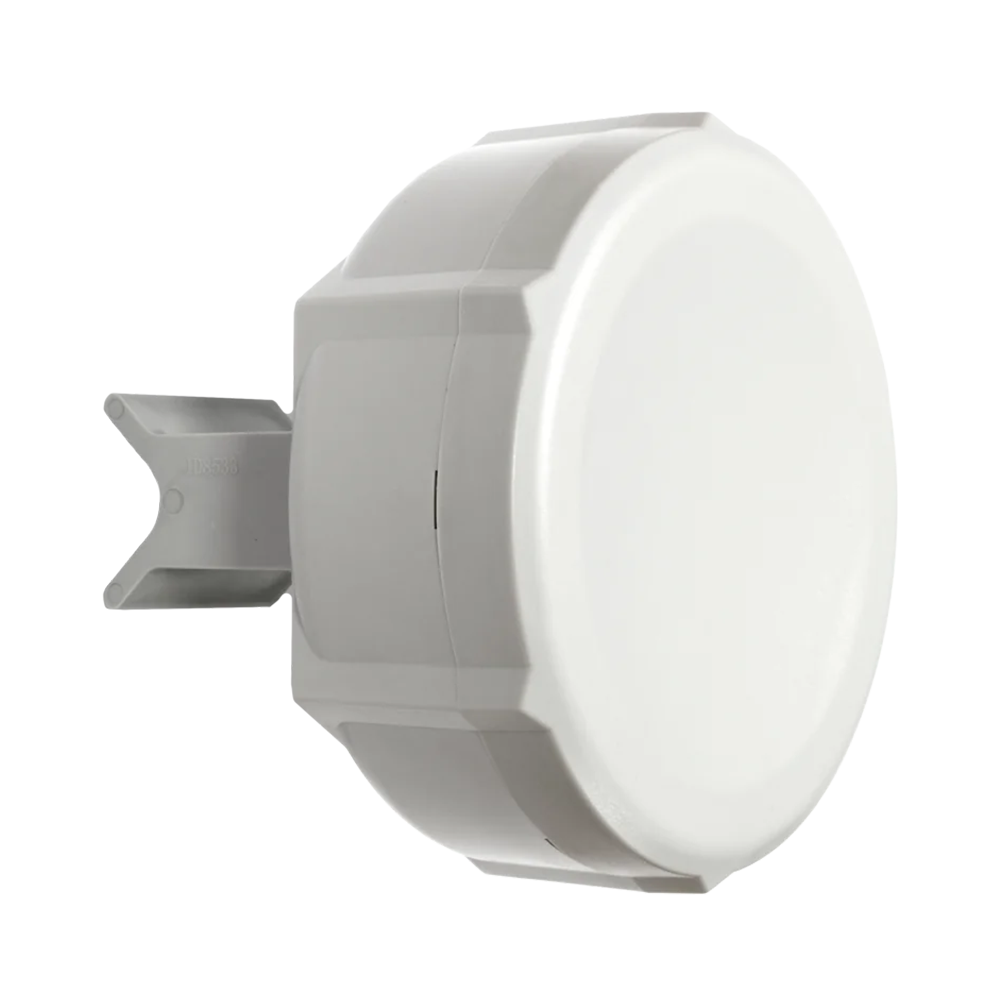

SXT SA5


RBSXTG-5HPnD-SAr2 – 5GHz 90 degrees 14dBi Dual Chain 802.11a/n Integrated Sector antenna RBSXTG-5HPnD-SAr2, 1 Gigabit LAN,RouterOS L4, POE, PSU, pole mount

DATASHEET

115.00

SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.

Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide

Details
Product code RBSXTG-5HPnD-SAr2
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 140x140x56mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -30°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 6-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 14
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -95
MCS7 26 -73
