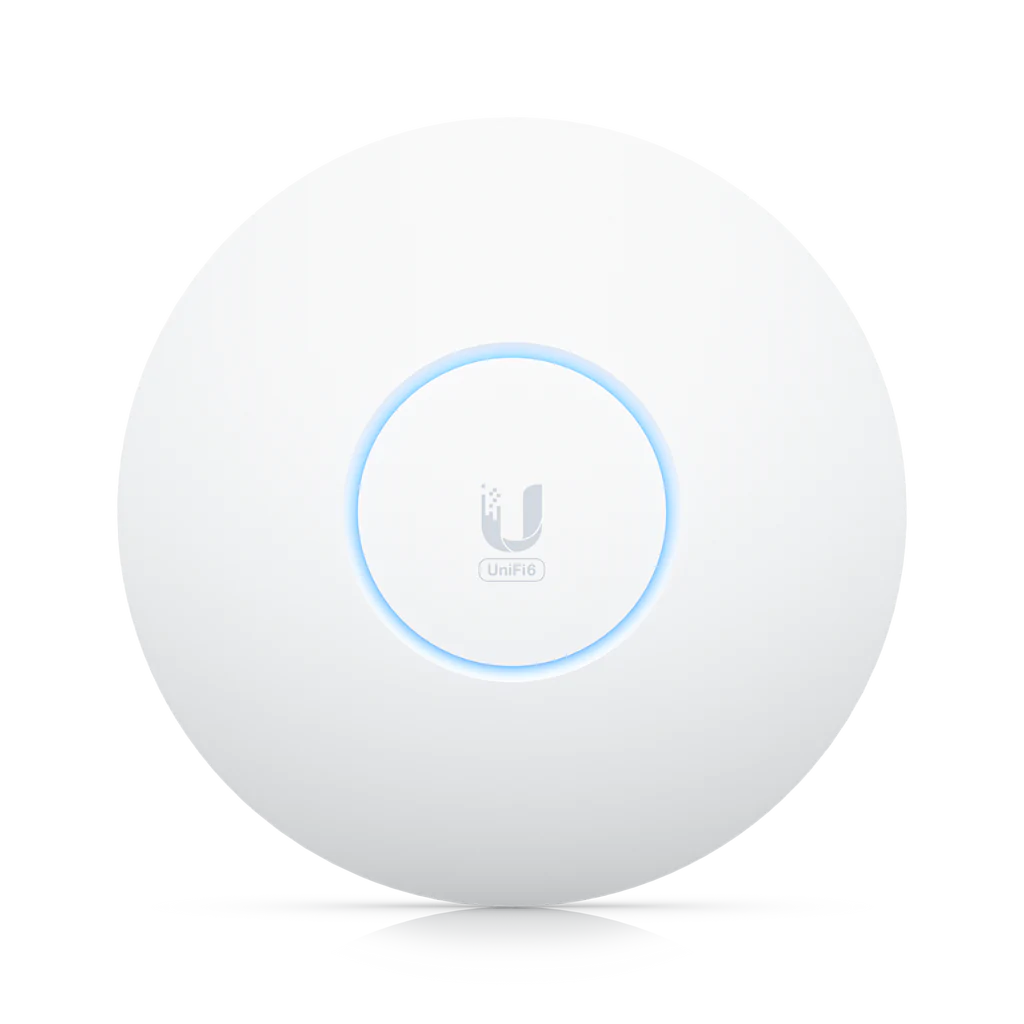

UniFi U6+ Wireless Access Point ( Without POE )


U6+

DATASHEET

  • Wi-Fi 6 (802.11ax)
  • Up to 2975 Mb/s Throughput
  • 2.4 GHz / 5 GHz (Dual-Band)
  • 1 x PoE-Compliant Gigabit Ethernet Port
  • Includes Wall and Ceiling Mounts
  • Up to 1500 Square Foot Coverage
  • WPA/WPA2/WPA3 Authentication
  • Compact Design
  • Supports UniFi Network Controller

124.25

Designed primarily for small and medium-sized businesses, the UniFi U6+ Dual-Band Wi-Fi 6 Access Point from Ubiquiti Networks expands your network with fast and reliable wireless connectivity. This compact access point discreetly mounts onto your wall or ceiling, where it blends with the environment while providing up to 1500 square feet of coverage for over 300 simultaneously connected devices.

The UniFi U6+ supports up to 2975 Mb/s over the 2.4 GHz and 5 GHz bands, providing smooth video streaming and internet browsing experiences. Your wireless network is protected by WPA, WPA2, and WPA3 encryption. Connect a PoE compatible network switch or power injector to the Gigabit Ethernet uplink port to transfer data and power over a single cable. You can configure, manage, and monitor your network through the UniFi Network platform.

Wi-Fi
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Throughput
2975 Mb/s Total
5 GHz: 2402 Mb/s
2.4 GHz: 573 Mb/s
Inputs/Outputs
1x RJ45 Gigabit Ethernet WAN PoE (Unspecified)
Wireless
Wi-Fi
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Antenna Gain
3 to 5.4 dBi
Transmit Power
23 dBm
Antenna Placement
Internal
Bluetooth
No
Throughput
2975 Mb/s Total
5 GHz: 2402 Mb/s
2.4 GHz: 573 Mb/s
Interface
Inputs/Outputs
1x RJ45 Gigabit Ethernet WAN PoE (Unspecified)
USB Sharing Support
No
Security
Guest Network Support
Yes
Wireless Security
No
Lock Slot
No
Management
Operation Modes
Access Point
Supported Clients
300
Max SSIDs Supported
16
Mobile App Compatible
Yes: Android & iOS
Hardware
Storage Capacity
No
Supported IEEE Standards
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1q
Electrical
Power Consumption
≤9 W
Environmental
Operating Temperature
-22 to 140°F / -30 to 60°C
Operating Humidity
5 to 95%
General
Environmental Protection
No
Certifications
FCC, CE, IC
Mount Options
Wall, Ceiling
Dimensions
6.3 x 6.3 x 1.3″ / 160 x 160 x 33 mm
Weight
0.7 lb / 338 g
Packaging Info
Package Weight
1.32 lb
Box Dimensions (LxWxH)
7.8 x 7.2 x 2.1″
