Door Access, UniFi

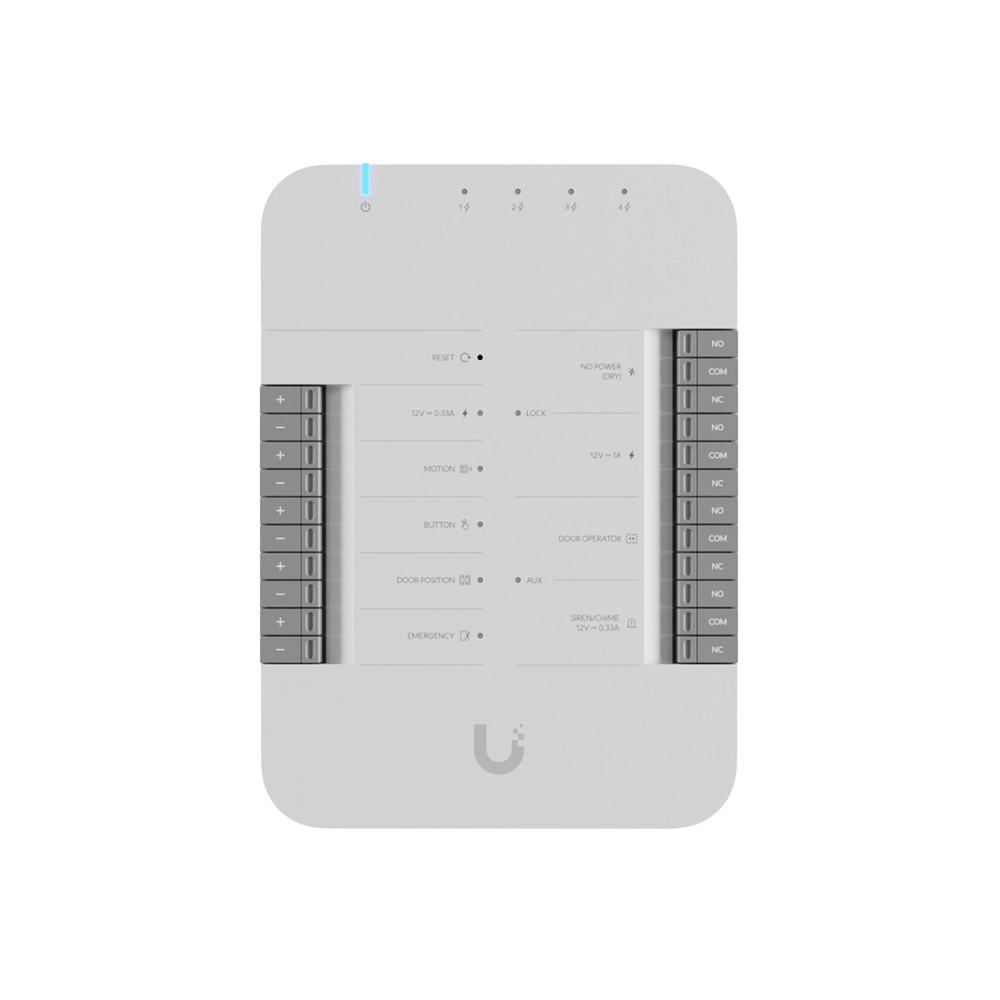

Door Hub
UA-Hub-Door
250.00 €
Koha e arritjes së produktit : 14/03/2025 - 15/03/2025
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
| Category | Specification |
|---|
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″) |
| Supported Doors | 1 |
| Input Terminals | (2) Door exit request, (1) Door position, (1) Emergency |
| Power Method | PoE++ |
| Power Supply Standards | UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| Mechanical |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Hardware |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface |
| PoE Input | (1) PoE++ input, 50V DC, 1A |
| PoE Outputs | (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated) |
| Power Consumption |
| Max. Without PoE | 30W |
| Max. With PoE | 50W |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay |
| Lock | 30V DC, 1A |
| Aux | 30V DC, 1A |
| Powered Output Relay |
| Lock | 12V DC, 1A |
| Aux | 12V DC, 0.33A |
| LEDs | W/B Learn More |
| Buttons | (1) Factory-reset |
| Recommended Max. Cable Length |
| UA-Lock-Electric (400mA) |
| 24 AWG | 25 m (82 ft) |
| 22 AWG | 42 m (138 ft) |
| 20 AWG | 66 m (217 ft) |
| 18 AWG (UACC-Cable-DoorLockRelay) | 100 m (328 ft) |
| UA-Lock-Magnetic-540kg (500mA) |
| 24 AWG | 20 m (66 ft) |
| 22 AWG | 32 m (105 ft) |
| 20 AWG | 51 m (167 ft) |
| 18 AWG (UACC-Cable-DoorLockRelay) | 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) |
| 24 AWG | 12 m (29 ft) |
| 22 AWG | 20 m (98 ft) |
| 20 AWG | 30 m (167 ft) |
| 18 AWG (UACC-Cable-DoorLockRelay) | 46 m (151 ft) |
| Other Locks (1A) |
| 24 AWG | 9 m (30 ft) |
| 22 AWG | 15 m (49 ft) |
| 20 AWG | 24 m (79 ft) |
| 18 AWG (UACC-Cable-DoorLockRelay) | 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e minimum recommended. Transmission speed should match site requirements. |
| Minimal Conductor Gauge | 26 AWG for patch cords; 24 AWG for horizontal/riser cable. |
| UL 294 Level |
| Destructive Attack | Level I |
| Line Security | Level I |
| Endurance | Level I |
| Standby Power | Level I |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) not verified under UL 294. |
| Compliance | ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Reference | UA-Hub-Door002, V01 |
