Ubiquiti airMAX 5GHz LiteAP AC Access Point (LAP-120)

  • Point-to-Point Functionality
  • Frequency Band 5 GHz
  • Antenna Gain 16 dBi

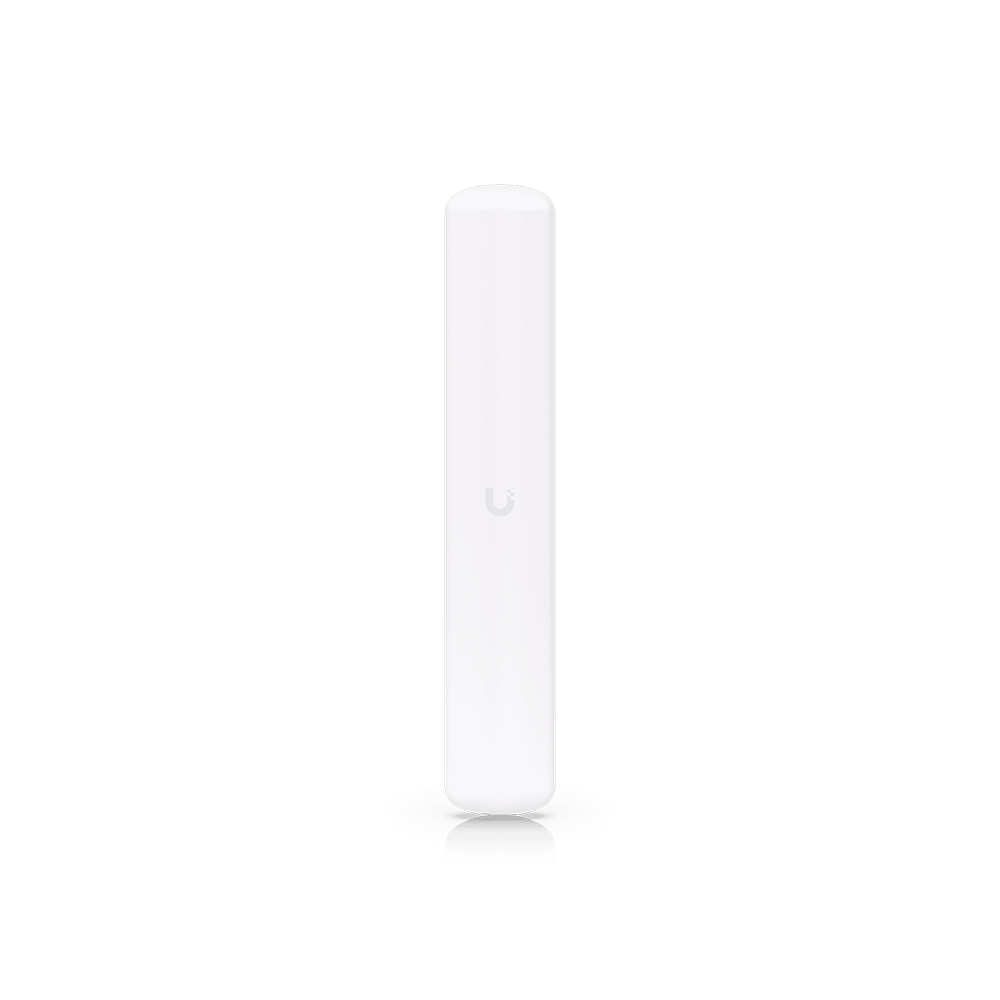

Ubiquiti airMAX 5GHz LiteAP AC (LAP-120)

The Ubiquiti airMAX 5GHz Lite AP AC is a high performance, lightweight and compact, outdoor wireless sector access point. This is an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.

Ubiquiti airMAX 5GHz Lite AP AC Key Features

  • Frequency Band 5 GHz
  • Antenna Gain 16 dBi
  • airMAX ac
  • 2×2 MIMO
  • Gigabit Ethernet
  • Point-to-Point Functionality
  • Point-to-MultiPoint Functionality

The LiteAP ac combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.

application example

Kodi i produktit : 9348 Kategori: ,

Physical / Electrical / Environmental

  • Dimensions 452.3 x 78.7 x 54.4 mm
    (No Mount) (17.81 x 3.10 x 2.14″)
  • Weight (No Mount) 420 g (14.82 oz)
  • Wind Survivability 200 km/h (125 mph)
  • Wind Loading 77 N @ 200 km/h
    (17.3 lbf @ 125 mph)
  • Mounting Kit Pole Mounting Kit (Included)
  • Max. Power Consumption 7W
  • Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Operating Temperature -40 to 70° C (-40 to 158° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Shock and Vibration ETSI300-019-1.4
  • ETSI Specification EN 302 326 DN2
  • ESD/EMP Protection ± 24 KV Contact / Air

System Information

  • Processor Specs MIPS 74K
  • Memory 64 MB
  • Networking Interface (1) 10/100/1000 Ethernet Port

Regulatory / Compliance Information

  • Wireless Approvals FCC, IC, CE
  • RoHS Compliance Yes
