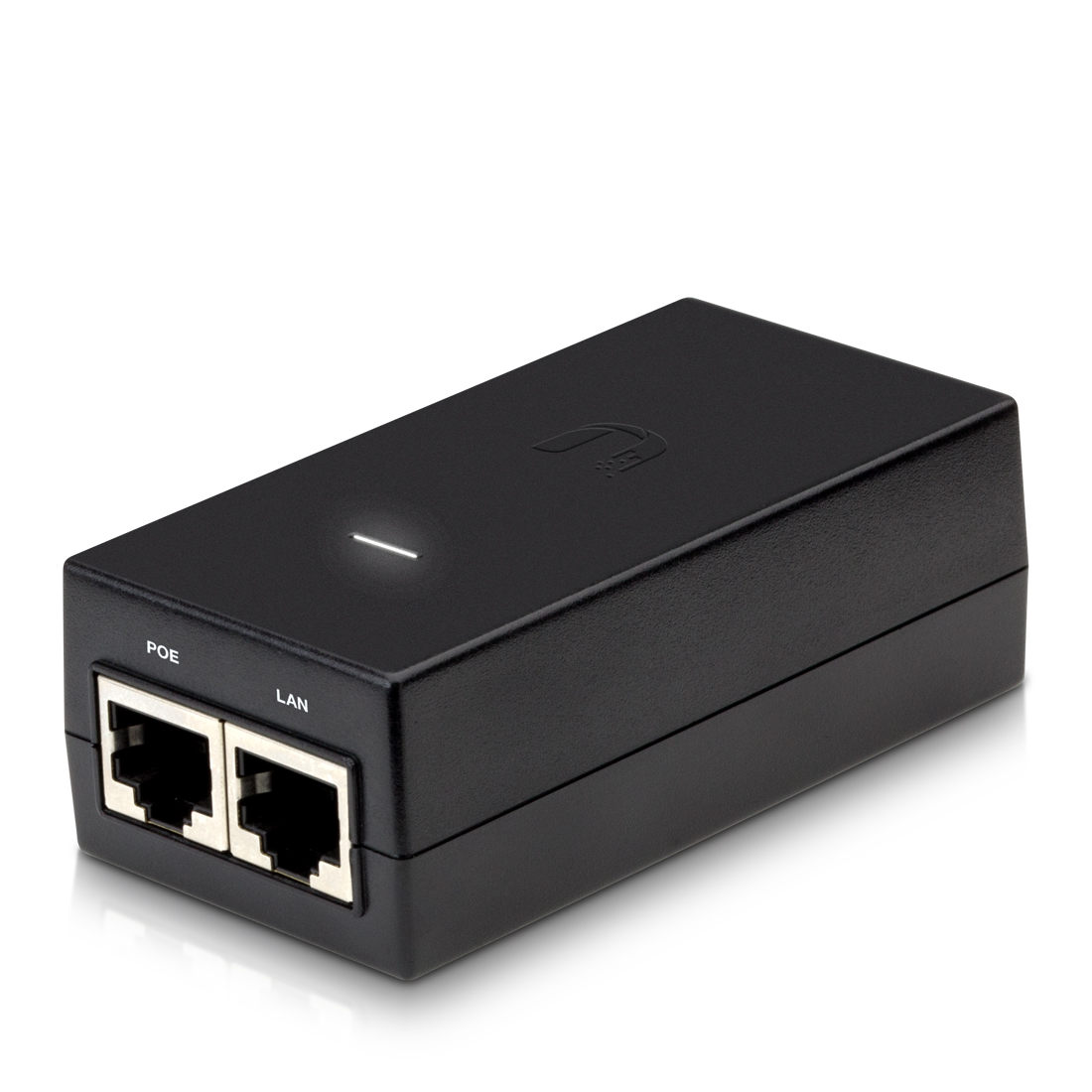

Ubiquiti Gigabit 24V PoE Injector 12W


PoE-24-12W-G

Ubiquiti Networks POE-24-12W-G is a 24VDC 0.5 12W replacement Gigabit PoE adapter for use with airMAX and UniFi products. It features ESD protection and earth grounding.

Product Specifications
• Dimensions: 87 x 44 x 29mm (2.43 x 1.73 x 1.14″)
• Weight: 99.4g (3.51oz)
• Gigabit LAN Port: Yes
• Remote Reset Capability: Yes
• Reset Button Yes
• Input Voltage: 90-260VAC @ 47064Hz
• Input Current:
0.3A @ 120VAC
0.2A @ 240VAC
• Inrush Current:
<30A Peak @ 120VAC
<60A Peak @ 230VAC
• Efficiency: 75 %
• Output Ripple: 1% Max.
• Switching Frequency: 50kHz
• Line Regulation: ±1%
• Load Regulation: ±3%
• 2-Pair Powering: Pins 4,5( ) and Pins 7,8(-)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20us) Power
• Peak Pulse Current: 36A (10/1000us) Data
• Shunt Capacitance: <5pF Data
• Response Time: <1ns
UBIQUITI DATASHEET
