Fault Locators, Fiber Optic Tool Kit & Splicer, Fiber Testers

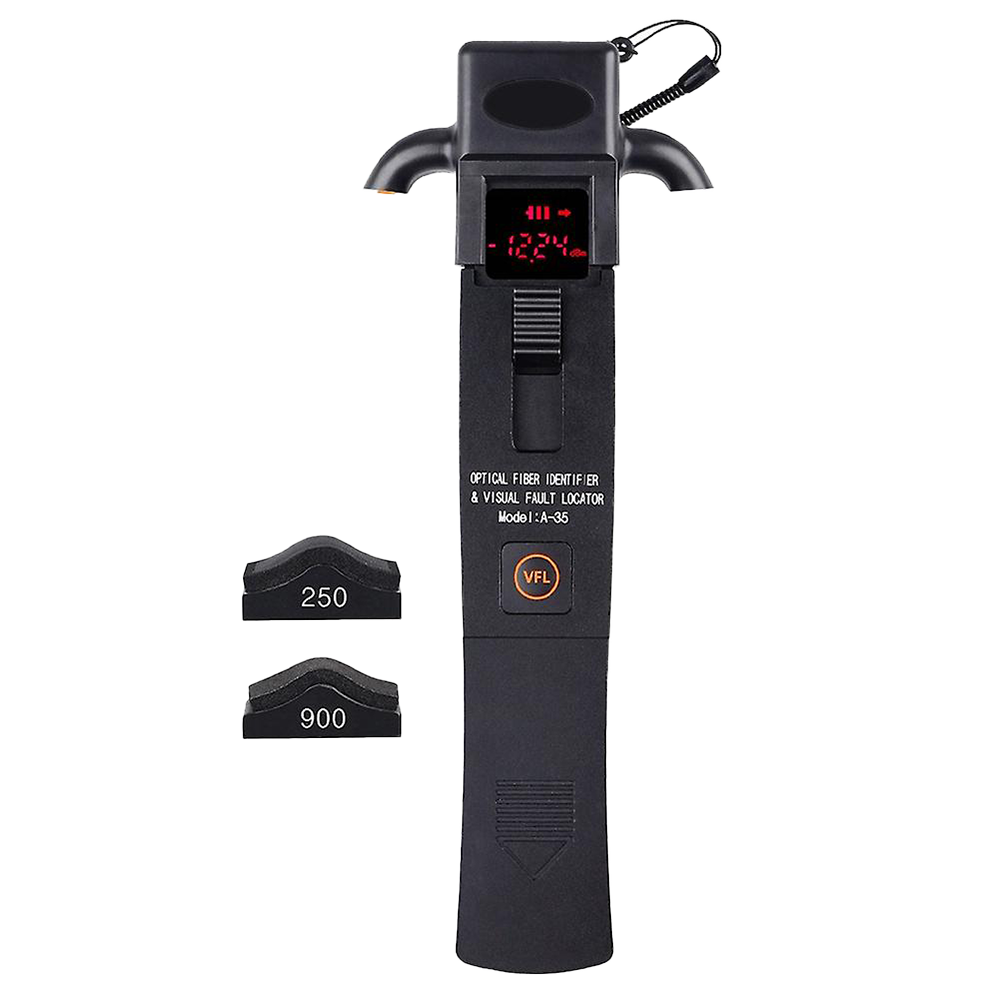

WK-OFIVFL Optical fiber identifier & Visual fault locator
- Indicates the signal direction and power in optical fiber
- Indicates signal presence or absence (live or dark fiber)
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
- Displays the relative core power
- Lower power indication
- Build in VFL function
240.00 €
Koha e arritjes së produktit : 13/11/2025 - 14/11/2025
The WK-OFIVFL Optical Fiber Identifier is ideal for online testing. The WK-OFIVFL Optical Fiber Identifier is used for nondestructive fiber identification. It is capable of detecting signal presence and direction in any location of Singlemode fiber. It also incorporates a Visual Fault Locator module with fault location function.
| Parameter | Specification |
| Identified Wavelength Range | 750-1700nm |
| Insertion Loss | 1.0dB |
| Fiber Type | <3mm fiber |
| Identified Signal Type | 270Hz/1KHz/2KHz |
| Display Type | LED |
| Detector Type | 1mm InGaAs |
| Minimum detection power | -35dBm (1550nm) -30dBm (1310nm) |
| Center Wavelength | 650nm |
| Output Power | 10 mW |
| Alkaline Battery | 2 x AA |
| Battery Life | ~60 Hours |
| Operating Temperature | 0~+50 ℃ |
| Storage Temperature | -20~+60℃ |
| Weight | 200g |
| Dimension(mm) | 230 x 43 x 36 |
| Specifications of VFL | |
| Wavelength (nm) | 650±10 nm |
| Output Power | 10mW |
