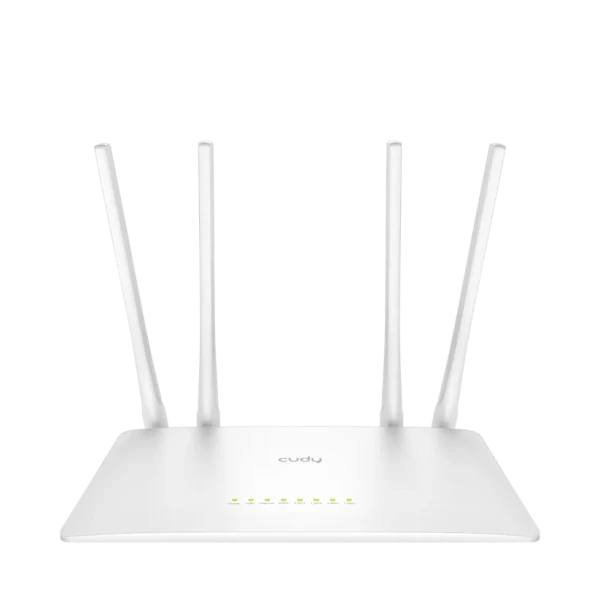

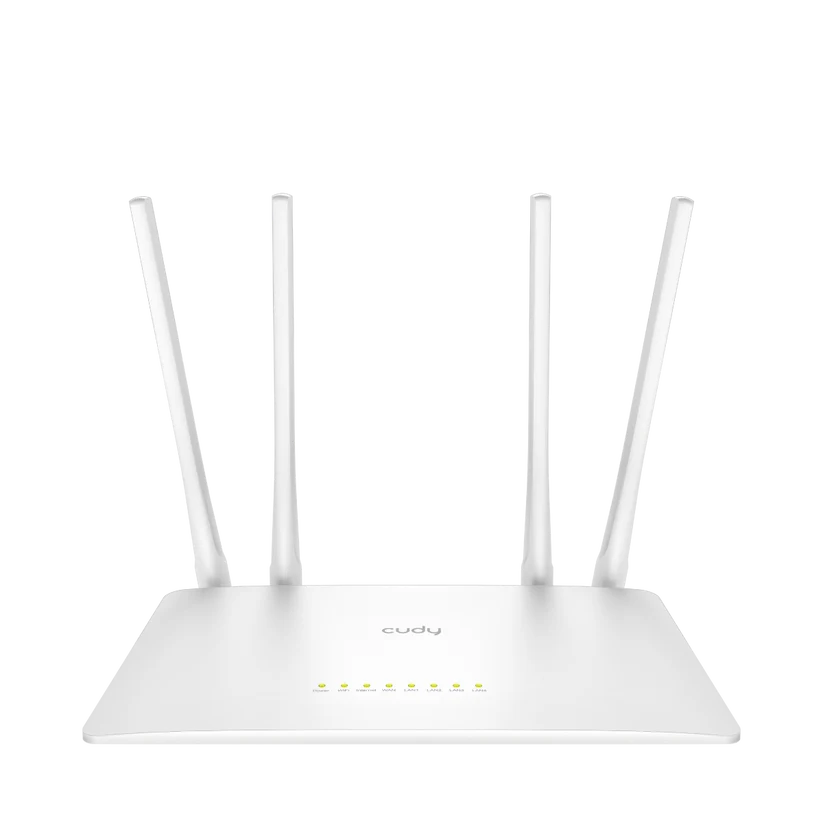

A WiFi router with five Ethernet ports and four antennas built for long-range coverage allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.
- 300 Mbps Wi-Fi 1
- 5× Fast Ethernet Ports
- Covers 90 m² (950 ft²) 2
- Router/AP/RE/WISP/Client/Mesh Modes
- VPN Client of WireGuard, PPTP, L2TP
- Cudy App
| Model Version | WR300S 1.0 | |
|---|---|---|
| CPU | CPU Details | 580 MHz Single-Core, MIPS24KEC |
| Memory/Storage | Flash/ROM | 8 MB (64 Mbit ) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR2 | |
| Wireless | 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| FEM or PA/LNA | 2.4 GHz: 2× Internal | |
| Range Performance | Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) |
|
| Interfaces | 10/100 Mbps RJ45 Ports | 5 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | |
| LED |
|
|
| Physical Buttons | Reset/WPS Button | |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC Input | 5V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 5V 1A DC |
|
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Dimension | 220×135×30 mm 8.66×5.31×1.18 inches |
|
| Product Weight | 249.8 g (8.81 oz.) | |
| Package Content |
|
|
| Ordering Information | Retail Package Weight | EU: 612.5 g (21.61 oz.) |
| Retail Package Dimension | 290×250×64 mm 11.42×9.84×2.52 inches |
|
| Units per Carton | 16 | |
| Carton Dimension | 53.8×51.6×31.3 cm 21.18×20.31×12.32 inches |
|
| Carton Gross Weight | EU: 10.9 kg (24.03 lbs) | |
| Carton Net Weight | EU: 9.8 kg (21.61 lbs) | |
