AX3000 2.5G Wi-Fi 6 Mini VPN Router ( TR3000 1.0 )

A mini WiFi 6 router ideal for sharing paid WiFi on cruise ships, securely connecting back to the office, hosting a NAS, or being used as a mini network gateway.

  •  1.3 GHz Dual-Core CPU
  •  1× 2.5GbE and 1× GbE
  •  USB 3.0
  •  160 g (5.64 oz.)
  •  WireGuard, OpenVPN, ZeroTier
  •  Powering via USB-C
  • DATASHEET

60.40 €

Model Version TR3000 1.0
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Stroage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
Wi-Fi Bands EU + DFS, US + DFS
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed, 1× Internal
5 GHz Anntenna Gain Max 4.8dBi
2.4 GHz Antenna Gain Max 3.9dBi
FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
Range Performance Max: 120 m (394 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 3.8 cm (1.5”)
One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
    <30 dBm (5.47 GHz ~ 5.725 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz & 5.725 GHz ~ 5.825 GHz)
Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 1
Ethernet Notes The 2.5G port is WAN port, the Gigabit port is LAN port
USB-A 3.0 Ports 1
LED System
Physical Buttons
  • Reset Button
  • Configurable DIP Switch
Power Input USB-C Port
Power Power Methods DC / PD
DC 5V 3A, PD
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 5V 3A DC
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Mechanical Installation Desktop
Dimension 118×80×27.5 mm
4.65×3.15×1.08 inches
Product Weight 160 g (5.64 oz.)

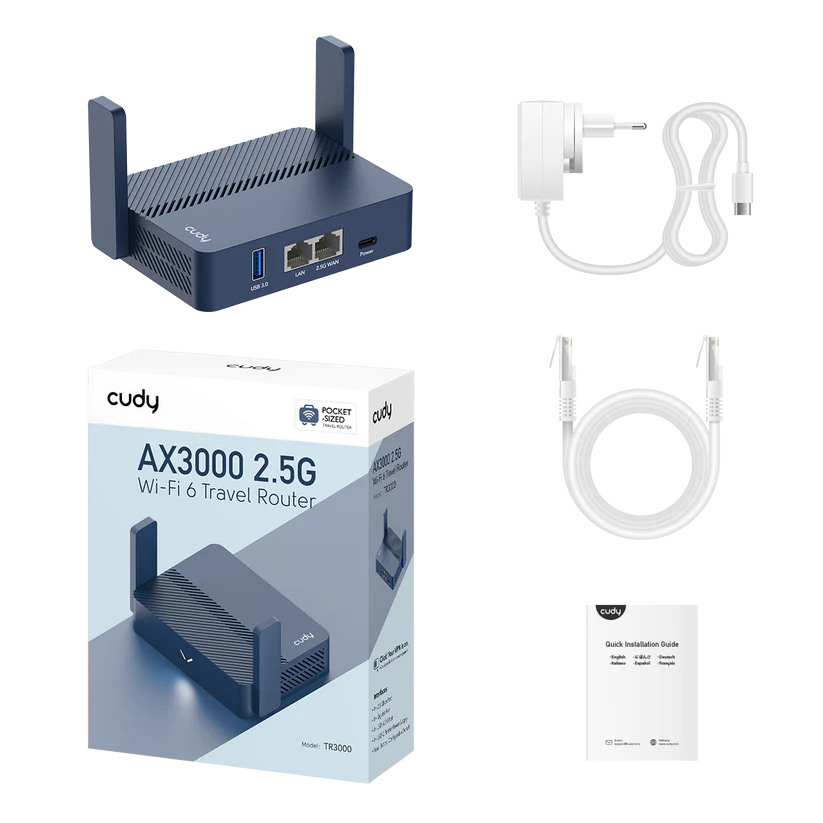

Package Content
  • Main Product
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
