PowerBeam M5 – 300

Availability:

Out of stock

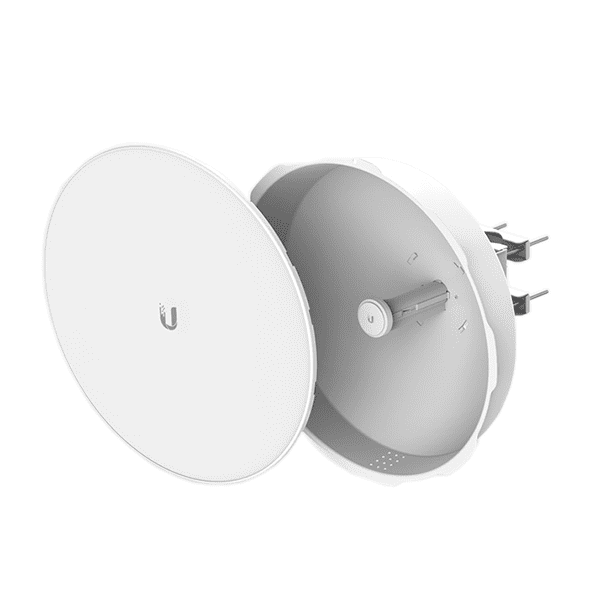

5 GHz PowerBeam, airMAX, 300 mm

Specification

  • Processor Specs Atheros MIPS 74Kc, 560 MHz
  • Memory 64 MB DDR2, 8 MB Flash
  • Networking Interface (1) 10/100/1000 Ethernet Port
  • Wireless Approvals FCC, IC, CE
  • RoHS Compliance Ye
  • Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83 in)
  • Weight 1.753 kg (3.87 lb)
  • Power Supply 24V, 0.5A Gigabit PoE
  • Power Method Passive PoE (Pairs 4, 5 ; 7, 8 Return)
  • Max. Power Consumption 8W
  • Gain 25 dBi
  • Operating Frequency
    Worldwide: 5170 – 5875 MHz
    USA: 5725 – 5850 MHz
  • Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
  • Wind Survivability 200 km/h (125 mph)
  • LEDs (1) Power, (1) LAN, (4) WLAN
  • Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
  • Channel Sizes 5/8/10/20/30/40 MHz
  • Polarization Dual Linear
  • Enclosure Outdoor UV Stabilized Plastic
  • Mounting Pole-Mount Kit Included
  • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature -40 to 70° C (-40 to 158° F)
  • Operating Humidity 5 to 95% Non-Condensing
  • Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
  • Vibration Test IEC 68-2-6
  • Temperature Shock Test IEC 68-2-14
  • UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
  • Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

UBIQUITI DATASHEET
