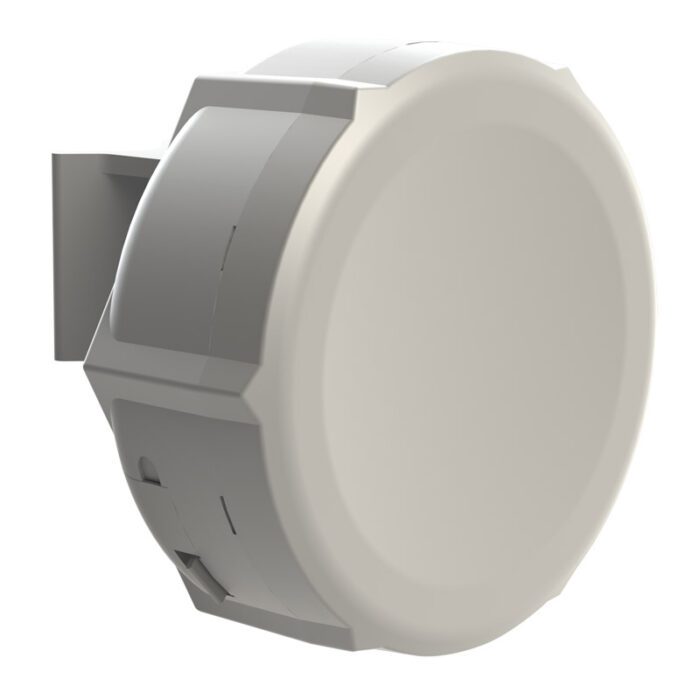

RBSXTG-5HPacD – RouterBOARD SXTG with Dual Chain 802.11ac, 16dBi 25 deg 5GHz antenna, 720MHz CPU, 128MB RAM, GigabitEthernet, USB, POE, PSU, pole mount, RouterOS L4
The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
SXT install guide:
| Details | |
|---|---|
| Product code | RBSXTG-5HPacD |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA9892 |
| Number of USB ports | 1 |
| PoE in | 802.3at |
| Supported input voltage | 12 V – 57 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Operating System | RouterOS |
| License level | 4 |
| Antenna gain DBI | 16 |
| CPU | QCA9557 |
| Max Power consumption | 12W |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Number of chains | 2 |
| Storage type | NAND |
| Storage size | 128 MB |
| 5 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 31 | -96 | 1259 |
| 54MBit/s | 28 | -81 | 631 |
| MCS0 | 30 | -96 | 1000 |
| MCS7 | 27 | -77 | 501 |
| MCS9 | 22 | -72 | 158 |
wireless parameters may be limited in software, depending on your local regulatory limitations
