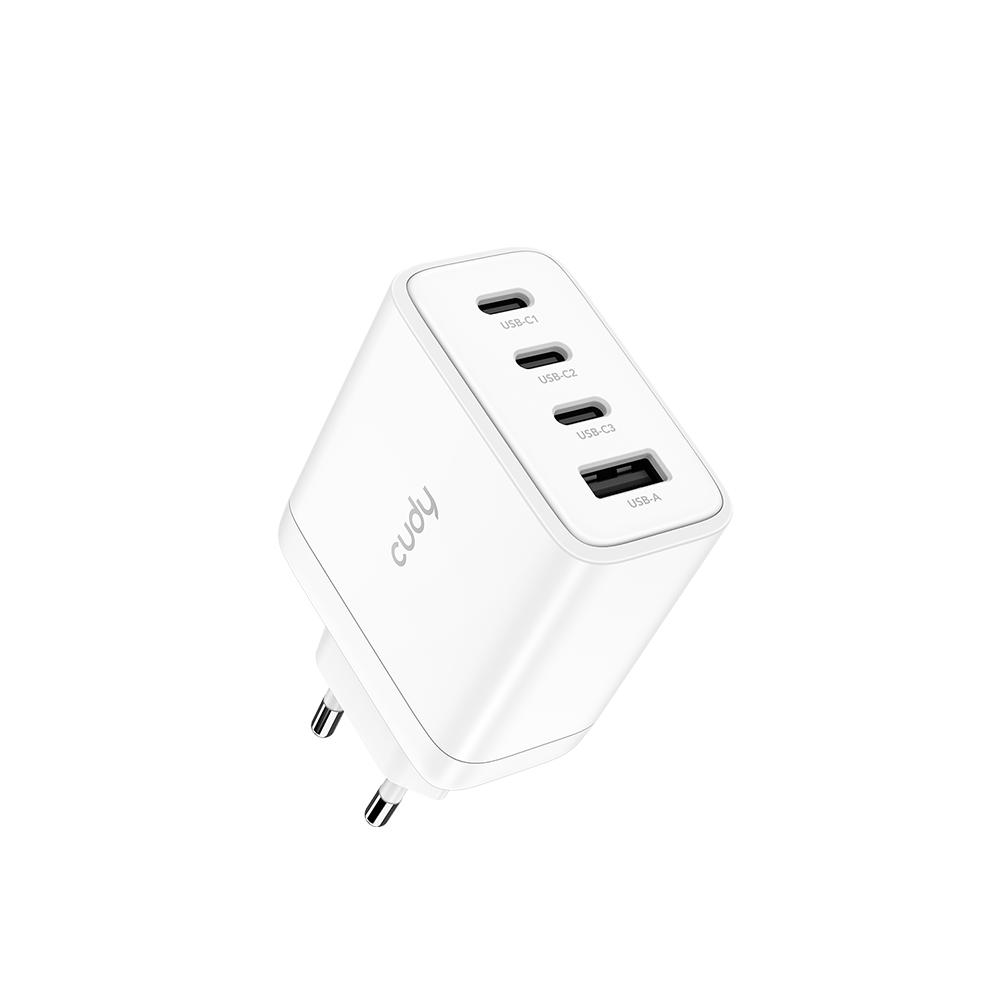

65W 4-Port GaN Charger
CH70
Përshkrim
- 3× USB-C and 1× USB-A Charging
- Max 65W USB-C
- Max 30W USB-A
- PD 3.0, PPS, QC 3.0 Fast Charge
- GaN Tech
- For Laptops, Tablets, and Phones
Specifications
| Specification | Details |
|---|---|
| Model Version | CH70 1.0 |
| Charging Ports | 3× USB-C, 1× USB-A |
| Total Power Output | 65W |
| Power Allocation (USB-C1 / USB-C2) | PPS: 5.0–11.0V ⎓ 4.5A (49.5W Max)PD: 5V⎓3A (15W), 9V⎓3A (27W), 10V⎓2A (20W), 12V⎓3A (36W), 15V⎓3A (45W), 20V⎓3.25A (65W Max) |
| Power Allocation (USB-C3) | PPS: 5.0–16.0V ⎓ 3.0A (48W Max)PD: 5V⎓3A (15W), 9V⎓3A (27W), 10V⎓2A (20W), 12V⎓3A (36W), 15V⎓3A (45W), 20V⎓3.25A (65W Max) |
| Power Allocation (USB-A) | 5V⎓3A (15W), 9V⎓3A (27W), 12V⎓2.5A (30W Max) |
| Multi-Port Output Modes | USB-C1 + C2/C3: 45W + 20WUSB-C2 + C3: 45W + 20WUSB-C1/C2 + USB-A: 45W + 18WUSB-C3 + USB-A: 15W MaxUSB-C1/C2 + (C3 + A): 45W + 15W3× USB-C: 20W + 20W + 20W2× USB-C + USB-A: 20W + 20W + 18W |
| Charging Protocols | QC 3.0, PD 3.0, PPS |
| Technology | GaN (Gallium Nitride) |
| Compatibility | Smartphones, tablets & laptops (Apple, Samsung, Lenovo, HP, ASUS, Dell, ROG, Motorola, Google, OnePlus, Xiaomi, OPPO, VIVO, Realme, Nokia, Sony, Huawei, TECNO, itel, Infinix, etc.) |
| AC Input | 100–240V ~ 50/60Hz, 1.5A |
| Protection Features | Overheat ProtectionOvervoltage ProtectionShort Circuit Protection |
| Port Durability | USB-C: >10,000 insertionsUSB-A: >5,000 insertions |
| Operating Temperature | -10 ℃ ~ 25 ℃ |
| Storage Temperature | -20 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 95% RH (non-condensing) |
| Electrical Standards | IEC62368, IEC55032, IEC55035 |
| Dimensions (Main Body) | 53 × 30.4 × 57.5 mm |
| Plug Length | 37.5 mm |
| Product Weight | 121.4 g |

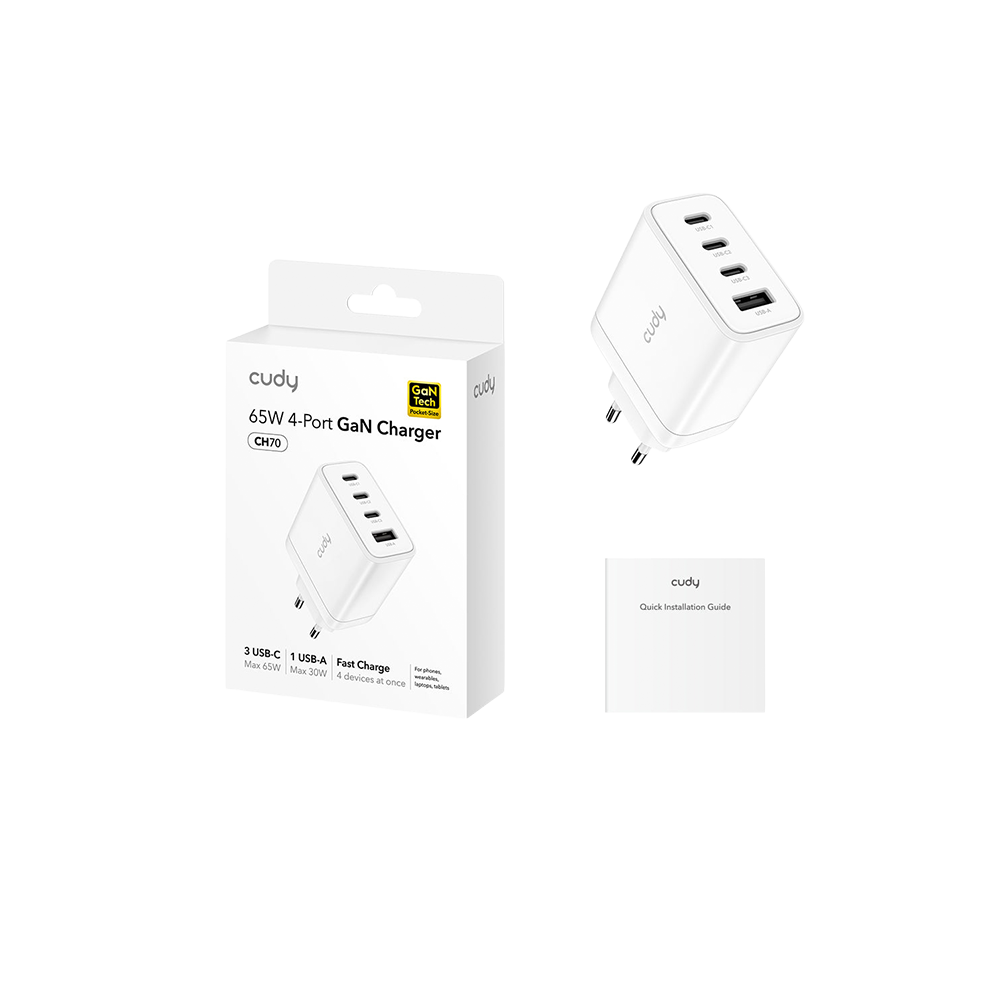

| Package Content | Main ProductSafety Guide |
| Retail Package Dimensions | 88.5 × 34 × 118 mm |
| Retail Package Weight (EU) | 153.4 g |
| Units per Carton | 100 |
| Carton Net Weight (EU) | 15.4 kg |
| Carton Gross Weight (EU) | 16.98 kg |
| Carton Dimensions | 46.5 × 36.5 × 26 cm |
