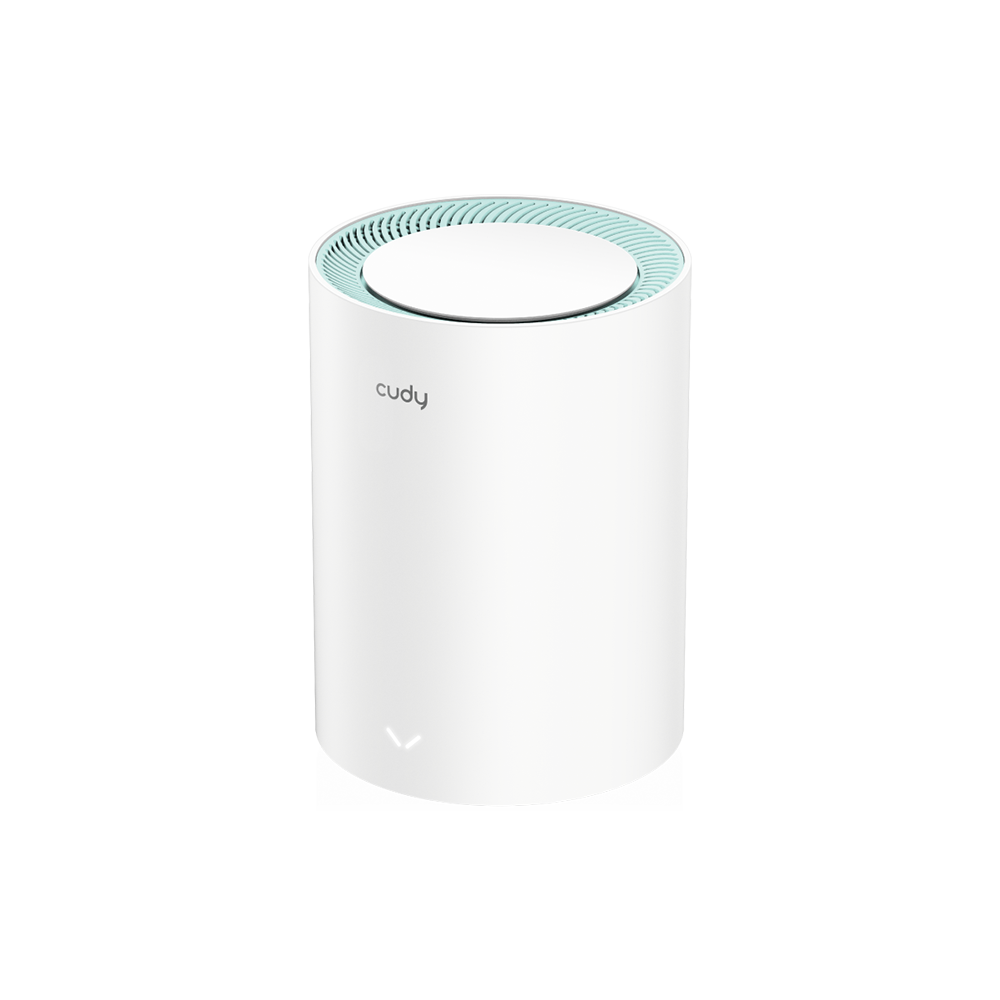

AX1500 Gigabit Mesh Wi-Fi 6 System (M1500 1 Pack)
M1500
Përshkrim
- 1201 Mbps + 300 Mbps Wi-Fi 1
- 3× Gigabit Ethernet Ports
- Fast Roaming
- Beamforming
- Cudy Mesh, VPN Client
- Multi-Band Simultaneous Backhaul
- Cudy App, Cloud Control
Hardware Specification
| Specification | Details |
|---|---|
| Model Version | M1500 1.0 |
| CPU | 1 GHz Single-Core CPU |
| Flash / ROM | 16 MB (128 Mbit) NOR |
| RAM | 128 MB (1 Gbit) DDR3 |
| Wi-Fi Speed (5 GHz) | 1201 Mbps |
| Wi-Fi Speed (2.4 GHz) | 300 Mbps |
| Wi-Fi Streams (5 GHz) | 2T2R (2×2 MIMO) |
| Wi-Fi Streams (2.4 GHz) | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2× Internal |
| FEM / PA / LNA | 5 GHz: 2× Internal2.4 GHz: 2× Internal |
| Beamforming | Yes |
| Max Wireless Range | Up to 170 m (open space) |
| Wall Penetration | Two wooden walls (<10 cm)One concrete wall (<20 cm) |
| Indoor Coverage Reference | 2-Pack: 170 m²3-Pack: 230 m² |
| Ethernet Ports | 3× Gigabit RJ45 |
| Ethernet Configuration | 1× WAN, remaining ports LAN |
| LED Indicator | System |
| Physical Buttons | WPS ButtonReset Button |
| Power Input | DC 12V ⎓ 1A |
| Power Consumption (Max) | 10 W |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 95% RH (non-condensing) |
| Certifications | FCC, CE |
| Installation Type | Desktop |
| Dimensions | Φ110 × 154.5 mm |
| Product Weight | 299.1 g |
| Package Contents | M1500Power AdapterEthernet CableInstallation Guide |
Software Specification
| Specification | Details |
|---|---|
| Model Version | M1500 1.0 |
| Wi-Fi Standard | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency | Beamforming |
| Max Client Capacity | 128 |
| Recommended Client Limit | Up to 60 |
| Max Channel Width | 80 MHz |
| Wi-Fi Security | WPA / WPA2 / WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | Yes |
| Operation Modes | Wi-Fi Router, Access Point, Range Extender, WISP, Client |
| Mesh Technology | Cudy Mesh |
| Mesh Backhaul | Wireless Backhaul, Wired Backhaul |
| Multi-Band Backhaul | Yes |
| WAN Modes | DHCP, Static IP, PPPoE, PPTP, L2TP |
| QoS | Per-User Rate Limiting |
| DHCP Functions | Address Reservation, DHCP Client List, DHCP Server |
| IP Versions | IPv4 / IPv6 |
| IPv6 Protocols | Relay, SLAAC/DHCPv6, Static IP, Passthrough, 464XLAT, MAP-E, DS-Lite |
| IPTV / VLAN | Bridge VLAN, Tag VLAN, VoIP VLAN, IPTV VLAN |
| IGMP | IGMP Proxy, IGMP Snooping |
| Port Forwarding | Yes |
| UPnP | Yes |
| DMZ | Yes |
| Firewall | SPI Firewall, Block PING |
| VPN Client | PPTP, L2TP, WireGuard |
| DNS Options | Manual DNS, Rebind Protection, Override Clients’ DNS |
| Wake on LAN | Yes |
| Online Detection | Yes |
| Parental Controls | Profiles, Offline Time, Online Time, Internet Pause, Web Filter |
| Device Management | Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding |
| Per-Device Control | Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename |
| Content Filtering | Domain Filter, IP Filter |
| LED Control | Yes |
| Local Management | Web Configuration Page, App Control |
| Remote Management | HTTPS Config Page, App Control, TR069/TR098/TR111/TR143/TR181 |
| Firmware Upgrade | Local Update, OTA via App, Online Update |
| System Features | Timed Reboot, Backup & Restore |
| Diagnostic Tools | Diagnosis, Ping, Traceroute, NSLookup, System Log |
| Supported Languages | English, Portuguese, Russian, Spanish, Ukrainian, French, Simplified Chinese |
| Dashboard Panels | Internet Status, Mesh Status, Devices, WAN, LAN, WISP, Wi-Fi, VPN, DHCP, System |
| Dashboard Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
