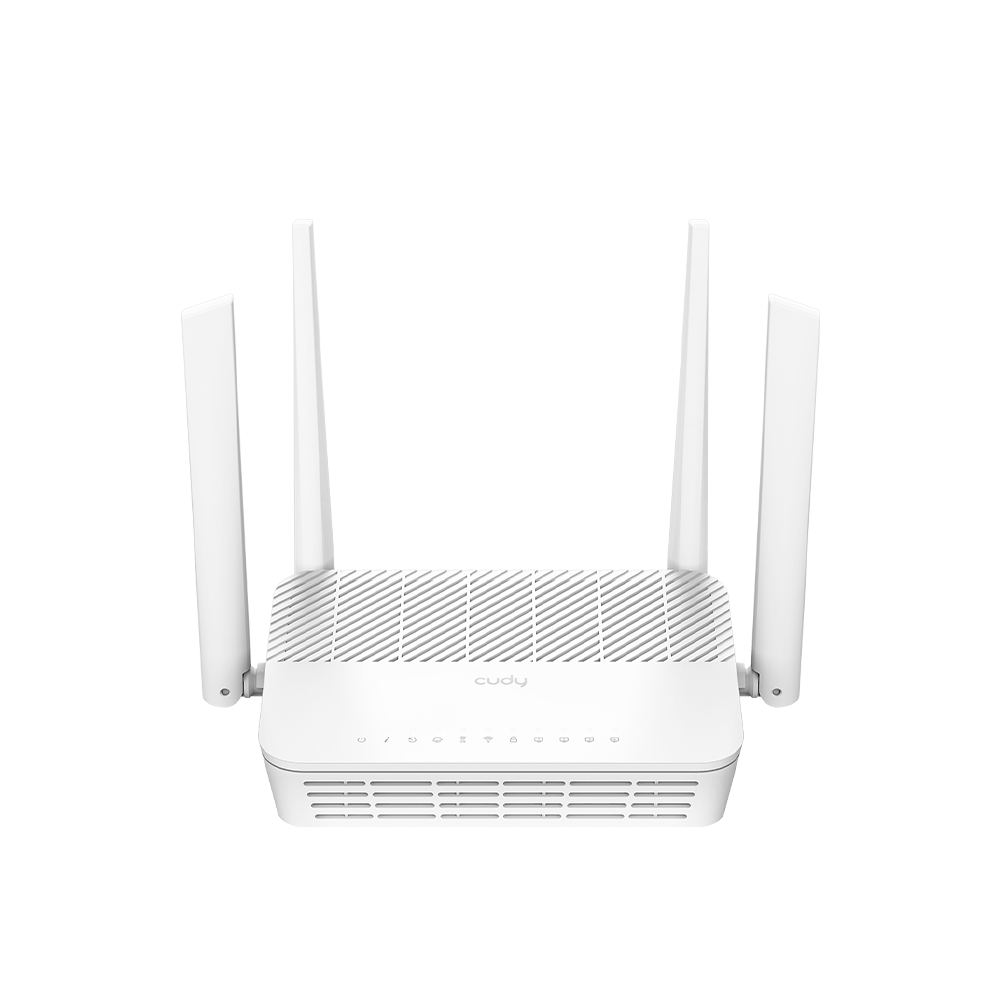

AX3000 Wireless Dual-Band Gigabit xPON Router
GP3000
Përshkrim
- Max 2.48 Gbps GPON / 1.25 Gbps EPON
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi 1
- 1× SC/APC Slot
- 4× Gigabit Ethernet Ports
- TR069/TR098/TR111/TR143/TR181
- EasyMesh
Hardware Specification
| Specification | Details |
|---|---|
| Model Version | GP3000 1.0 |
| CPU | 1 GHz Dual-Core |
| Flash / ROM | 128 MB (1 Gbit) NAND |
| RAM | 512 MB (4 Gbit) DDR3L |
| xPON Protocols | GPON (ITU G.984, Class B+)EPON (IEEE 802.3ah) |
| xPON Speed | GPON: 2.488 Gbps Down / 1.244 Gbps UpEPON: 1.25 Gbps Down / Up |
| Optical Wavelength | TX: 1310 nmRX: 1490 nm |
| Max Transmission Distance | 20 km |
| Wi-Fi Standards | Dual-Band Wi-Fi (2.4 GHz & 5 GHz) |
| 5 GHz Wi-Fi Speed | Up to 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | Up to 574 Mbps |
| Wi-Fi Streams | 5 GHz: 2×2 MIMO (2T2R)2.4 GHz: 2×2 MIMO (2T2R) |
| Wi-Fi Antennas | 4 × Fixed Antennas |
| FEM / PA & LNA | 5 GHz: 2× External2.4 GHz: 2× External |
| Beamforming | True Beamforming |
| Wi-Fi Coverage (Open Space) | Up to 170 m (558 ft) |
| Wall Performance | 2× wooden walls (<10 cm)1× concrete wall (<20 cm) |
| Optical Interface | 1× SC/APC Port |

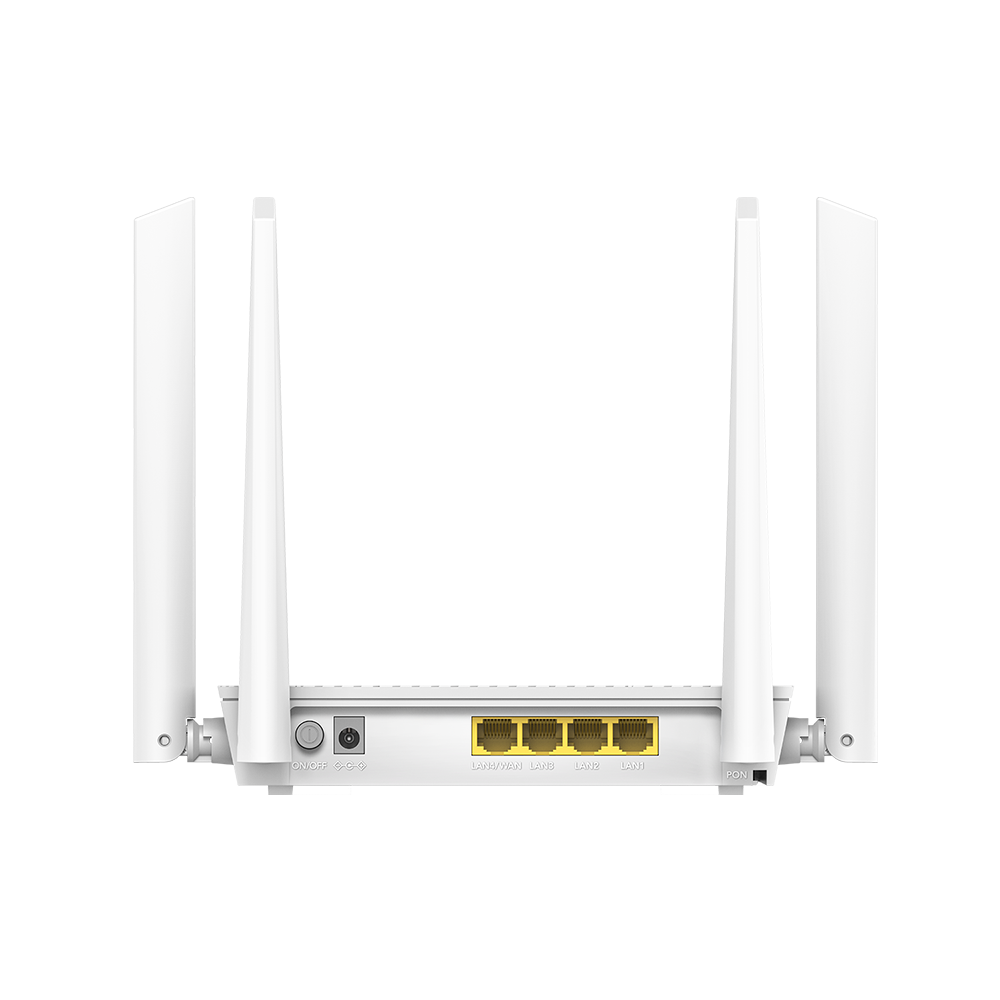

| Ethernet Ports | 4× Gigabit RJ45 (1× LAN/WAN + 3× LAN) |
| USB Port | 1× USB-A 3.0 (Optional – ISP order) |
| LED Indicators | Power, PON, LOS, Internet, 2.4G Wi-Fi, 5G Wi-Fi, WPS, LAN |
| Physical Buttons | Power On/OffResetWPSWi-Fi On/Off |
| Power Input | DC Jack |
| DC Input | 12V ⎓ 1.5A |
| Power Adapter | Input: 100–240V~ 50/60HzOutput: 12V ⎓ 1.5A |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 95% RH (non-condensing) |
| Certifications | FCC, CE |
| Installation Type | Desktop / Wall-mount |
| Dimensions | 173 × 123.8 × 33 mm |
| Product Weight | 352 g |
| Casing Material | Plastic |

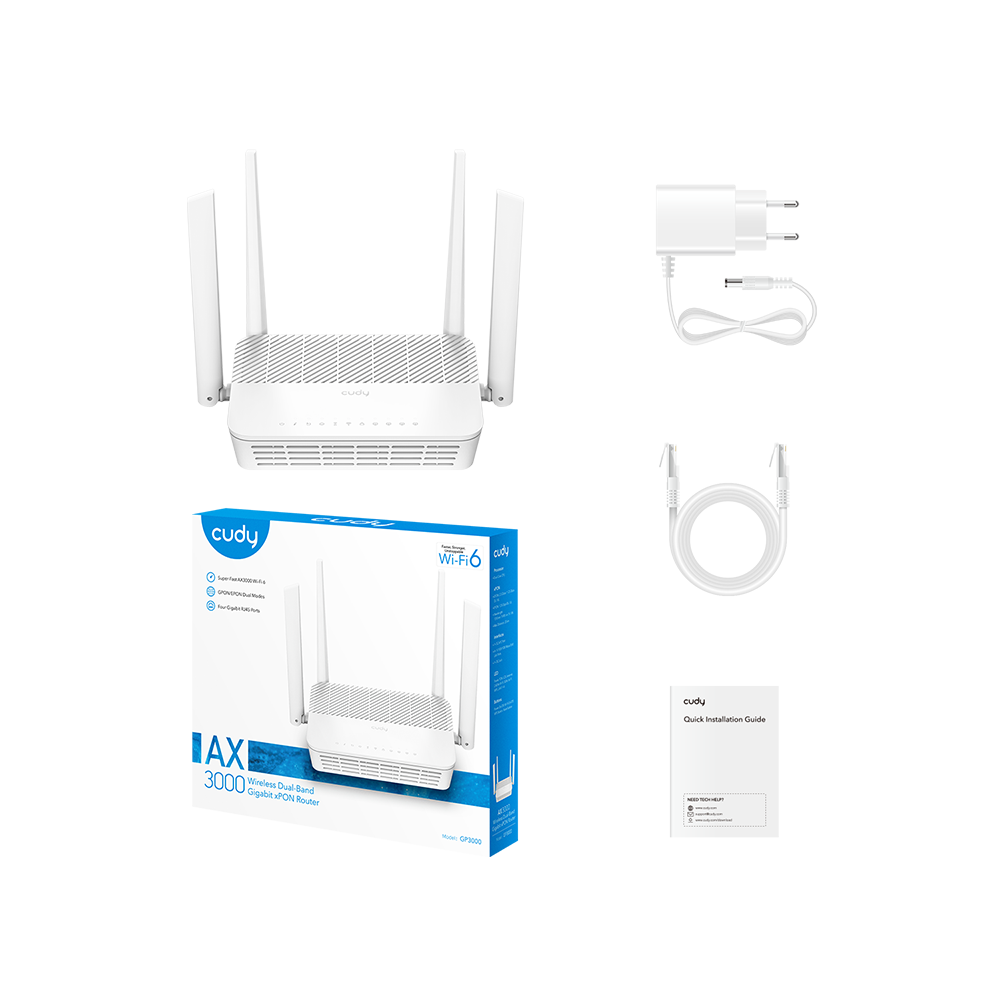

| Package Content | GP3000Power AdapterEthernet CableInstallation Guide |
| Retail Package Size | 304 × 268 × 54 mm |
| Retail Package Weight (EU) | 770 g |
| Units per Carton | 20 |
| Carton Net Weight (EU) | 15.4 kg |
| Carton Gross Weight (EU) | 16.7 kg |
| Carton Dimensions | 55.6 × 55.5 × 32.5 cm |
Software Specification
| Specification | Details |
|---|---|
| Model Version | GP3000 1.0 |
| Wi-Fi Standard | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency Technologies | OFDMAMU-MIMOBSS Color |
| Max Wi-Fi Capacity | 256 clients |
| Recommended Clients | Up to 100 clients |
| Max Channel Width | 160 MHz |
| Wi-Fi Security | WPA / WPA2 / WPA3 |
| Guest Network | 2.4 GHz & 5 GHz |
| WPS | Yes |
| Operation Mode | xPON Wi-Fi Router |
| Mesh Support | EasyMesh R2 |
| Mesh Backhaul | Wireless BackhaulWired Backhaul |
| WAN Connection Modes | DHCPStatic IPPPPoE |
| QoS Features | 4 Queues802.1p ClassificationDSCPTraffic Shaping (By MAC / IP / Port) |
| DHCP Functions | Address ReservationDHCP Client ListDHCP Server |
| IP Versions | IPv4 / IPv6 |
| IPv6 Protocols | Dynamic (SLAAC / DHCPv6)Static (Fixed IP) |
| IPTV / VLAN | Bridge ModeTag VLAN |
| TTL Customization | ExtendSpoofCustom |
| IGMP | IGMP Proxy |
| Port Forwarding | Port ForwardingUPnPDMZ |
| Firewall | SPI Firewall |
| DNS Options | Manual DNS |
| Online Detection | Yes |
| Device Management | MAC FilterIP/MAC Binding |
| Content Management | Domain FilterIP FilterPort Filter |
| Local Management | Web Configuration Page |
| Remote Management | TR-069 / TR-098 / TR-111 / TR-143 / TR-181OMCIOAM |
| Firmware Upgrade | Local Update |
| Backup & Restore | Supported |
| Diagnostic Tools | DiagnosisPingTracerouteNSLookupSystem Log |
| System Languages | EnglishHindiBengaliFrenchPortugueseRussianUrduIndonesianGermanArabicSpanishSimplified Chinese |
DATASHEET
