Dual 4K 10 Gbps USB-C Dock
CS700
Përshkrim

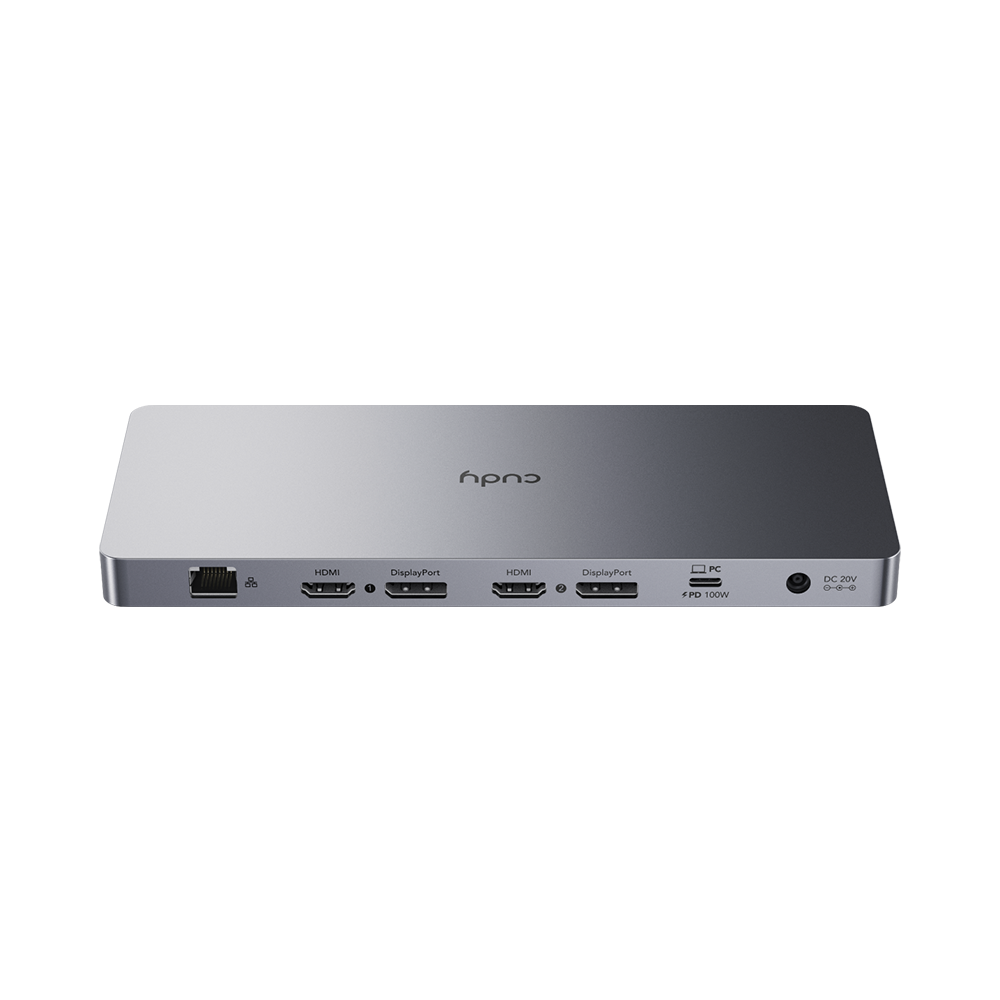

- 2× HDMI 2.0, 2× DP 1.2a, Dual 4K
- 1× Upstream PD USB-C (10 Gbps)

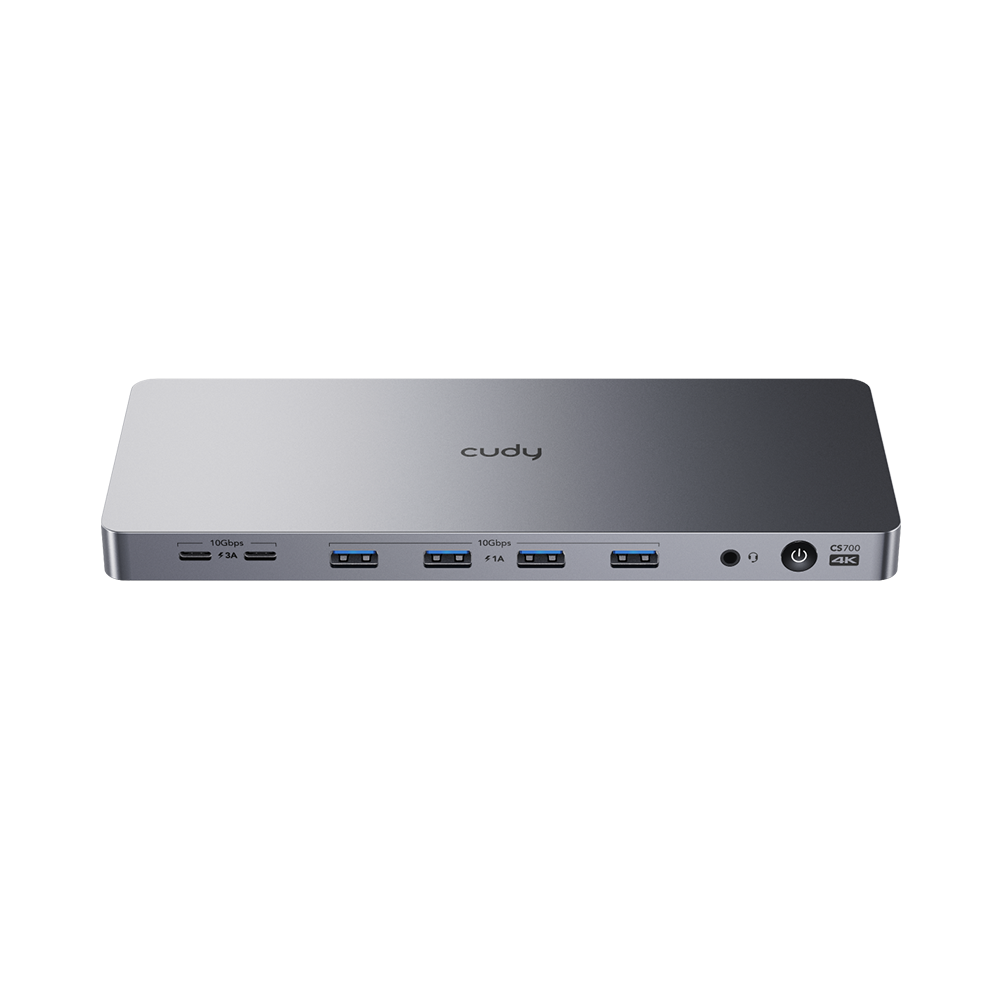

- 2× USB-C 3.2 Gen 2 (10 Gbps, 14W)
- 4× USB-A 3.2 Gen2 (10 Gbps, 5W)
- 1× 3.5mm Audio Combo Jack
- 1× Gigabit Ethernet RJ45 Port
- 100W Upstream PD (150W Adapter Incl.)
- DisplayLink DL-6950-N Chipset
- Aluminum CNC Machining Casing
- Works with Windows/macOS/Linux/Android
Specifications
| Category | Specification |
|---|---|
| Model | CS700 |
| Version | 1.0 |
| CPU / Chipset | DisplayLink |
| Upstream Connection | 1× USB-C 3.2 Gen 2 (10 Gbps, Max 100W Charging) |
| Video Outputs | 2× DisplayPort 1.2a2× HDMI 2.0 |
| Max Video Resolution | 1× 5K (5120×2880) @60Hz or2× 4K (4096×2160) @60Hz |
| 5K Requirement | Requires two DisplayPort cables connected to a compatible 5K monitor |
| Video Output Modes | Extend, Mirror |
| Android Limitation | Mirror mode only |
| USB-C Ports | 2× USB-C 3.2 Gen 2 (10 Gbps, Max 14W charging each) |
| USB-A Ports | 4× USB-A 3.2 Gen 2 (10 Gbps, Max 5W charging each) |
| Network Interface | 1× Gigabit Ethernet (RJ45) |
| Audio Interface | 1× 3.5 mm Audio & Mic Combo Jack |
| Power Input | DC Jack |
| Physical Button | Power On / Off |
| LED Indicator | Power |
| Power Method | DC |
| DC Input | 20V ⎓ 7.5A |
| Power Adapter Input | 100–240V AC, 50/60Hz |
| Power Adapter Output | 20V ⎓ 7.5A |
| Max Power Consumption | 150W |
| Idle Power Consumption | 2W |
| Color | Silver Gray, Matte Finish |
| Casing Material | Aluminum CNC MachiningAl6061-T5 Base MaterialSandblasting & Anodization |
| Security | 1× Kensington Security Slot |
| Hardware Requirement | USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3 / Thunderbolt 4 |
| Supported Operating Systems | Windows 7 or latermacOS 10.14 or laterUbuntu LTS 18.04 or laterChromeOS RS1 or laterAndroid 5+ (Max 1×1080p, Ethernet disabled)Nintendo Switch (PD-IN powered) |
| Driver Installation | Auto: Windows 10/11, ChromeOS R51+Manual: macOS, Windows 7/8/8.1, UbuntuAndroid: DisplayLink Presenter App |
| Operating Temperature | -20°C ~ 60°C (-10°F ~ 140°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Humidity | 5%–90% RH (non-condensing) |
| Product Weight | 340 g (11.99 oz.) |
| Product Dimensions | 210 × 85 × 15.6 mm8.27 × 3.35 × 0.61 in |

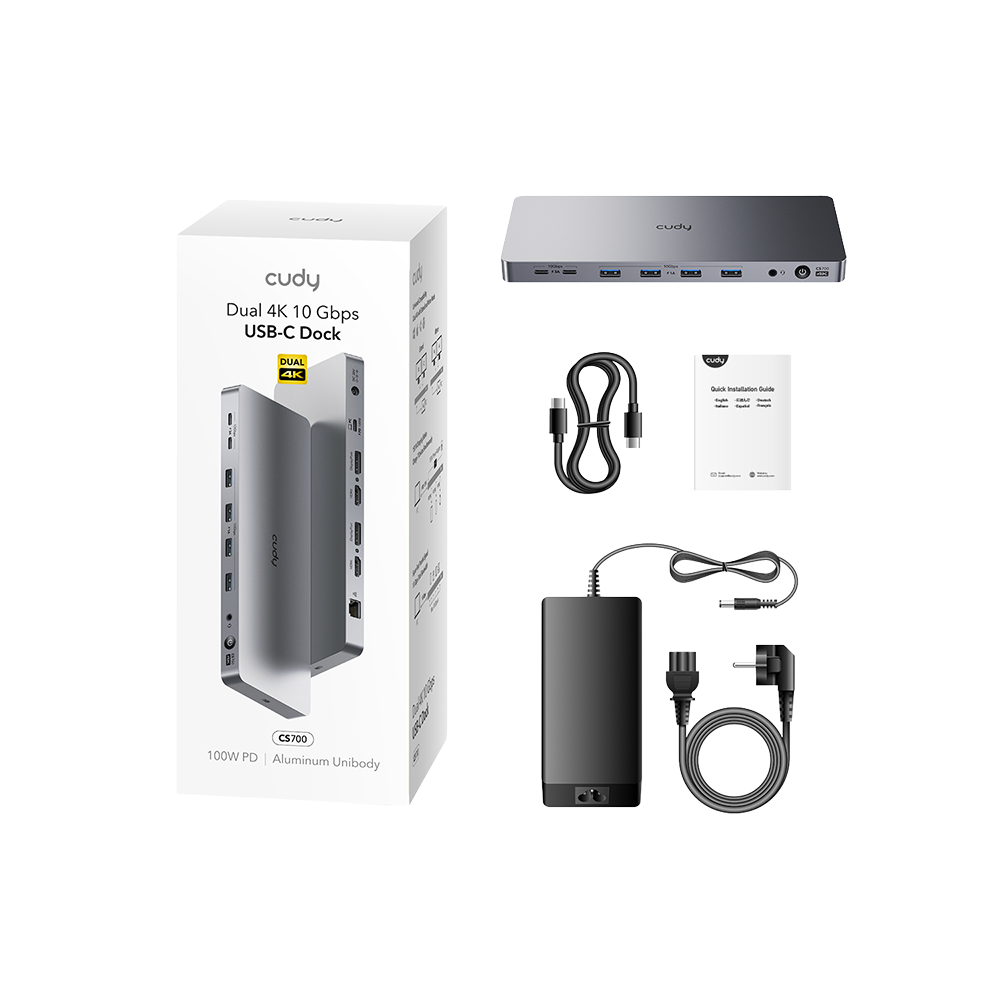

| Package Contents | CS700 Docking StationPower AdapterInstallation Guide |
| Retail Package Weight | EU / US: 1100 g (38.8 oz.) |
| Retail Package Dimensions | 226 × 95.5 × 98.5 mm8.9 × 3.76 × 3.88 in |
| Units per Carton | 10 |
| Carton Net Weight | EU / US: 11.1 kg (24.47 lbs) |
| Carton Gross Weight | EU / US: 11.6 kg (25.57 lbs) |
| Carton Dimensions | 49.5 × 23.8 × 21.5 cm19.49 × 9.37 × 8.46 in |
