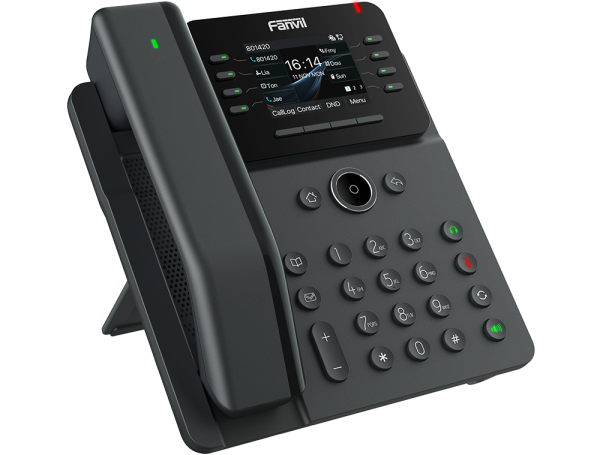

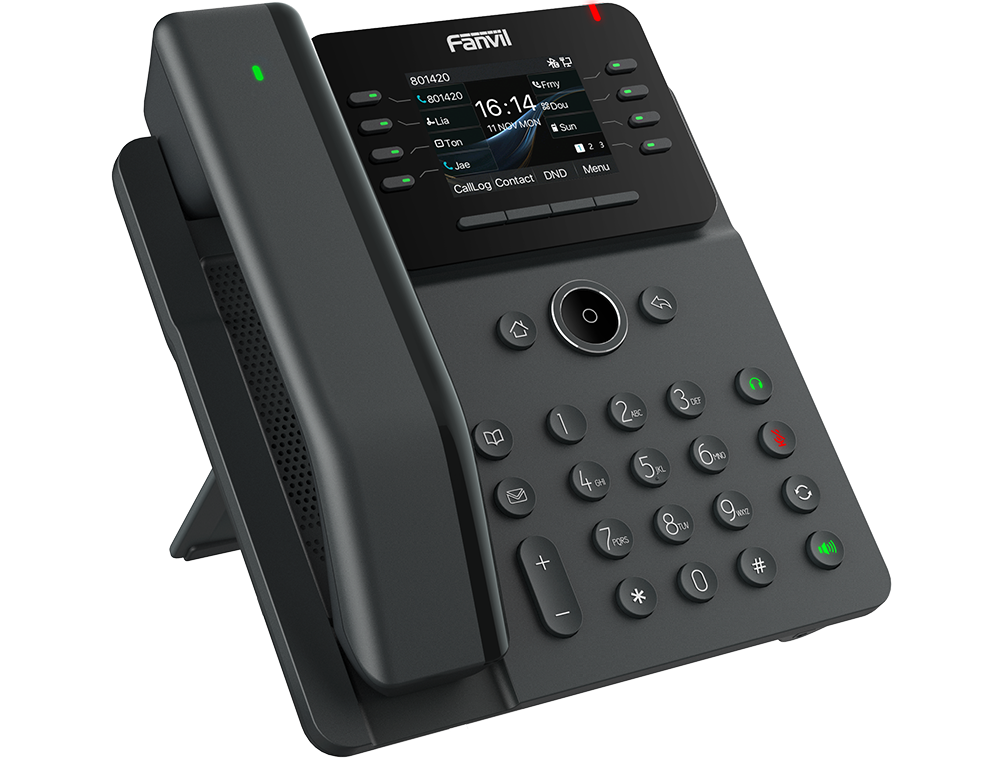

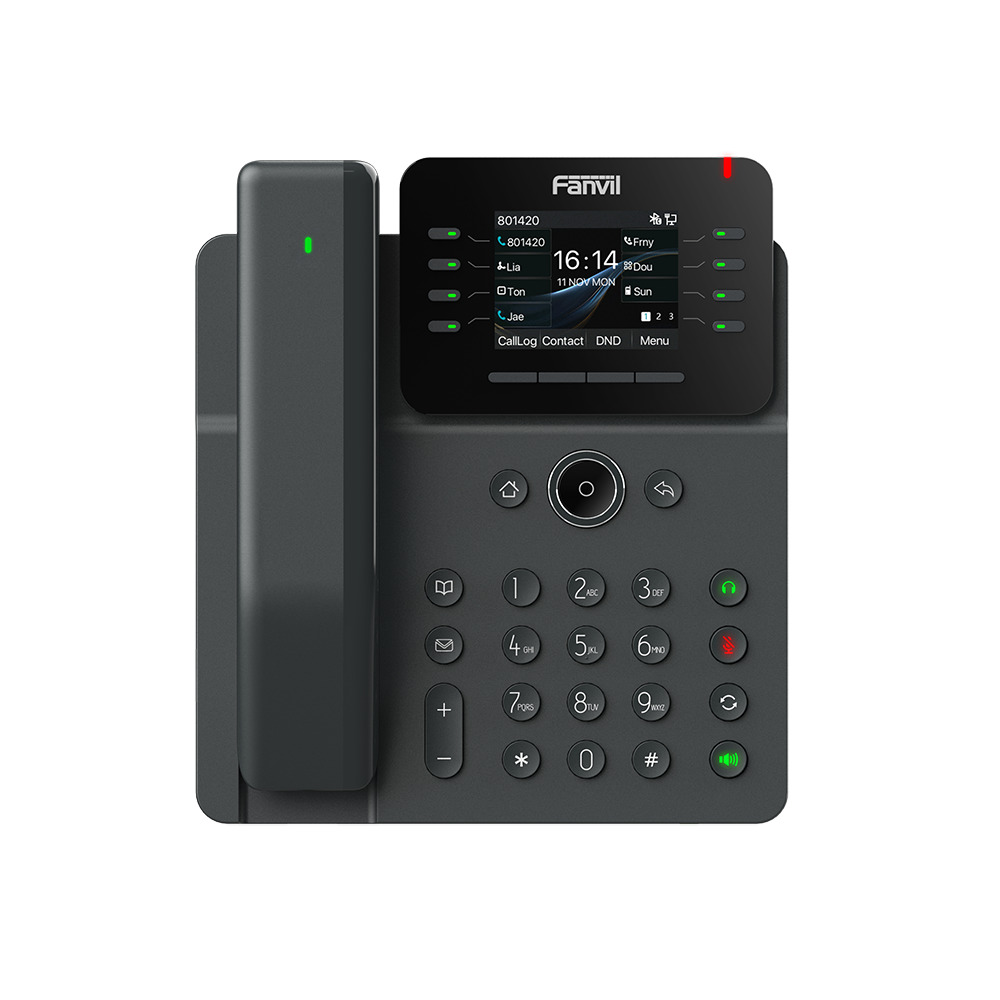

V62 Pro Prime Business Phone

Generic
 12 SIP Lines  HD Voice  Dual Gigabit ports, PoE Enabled
 2.8-inch(320×240) color screen  Handset / Hands-free / Headset mode  Desktop Stand / Wall mountable
(optional)
 Optional External Power Supply
 Handset with Hall-effect Sensor Switch
Phone Functions
 Local Phonebook (1000 entries)
 Remote Phonebook (XML/LDAP)
 Call logs (In/Out/Missed, 1000 entries)
 Blocked List/Allowed List
 Screen saver  Voice Message Waiting Indication
(VMWI)
 Programmable DSS/Soft keys  Network Time Synchronization  Support Poly wireless headset (Through
Poly APD-80 EHS Cable)
 Support Jabra wireless headset
(Through Fanvil EHS20 EHS Cable)
 Support Recording (Through Server)
 Action URL / Active URI
 XML Browser  Customize Background
 Customize Boot Logo  uaCSTA
 Customize Incoming Call Ringtone  Time Plan (timed reboot/timed
forward/timed upgrade/timed config)
 Hidden DTMF
 Ring From Headset
 Customize DSS icon  Customize DSS LED lights  Customize BLF
 Customize UI Display
Call Functions
 Call out / Answer / Reject
 Mute / Unmute (Microphone)
 Call Hold / Resume  Call Waiting
 Intercom
 Caller ID Display
 Speed Dial
 Anonymous Call (Hide Caller ID)/Ban Anonymous call
 Call Forward (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (Depending on
server)
 Redial
 Predial
 Call Back
 Do-Not-Disturb(DND)/Timed DND
 Auto-Answering
 SIP SMS
 Voice Message (On server)
 SIP Hotspot
 6-way Audio Conference  Hot Line  Hot Desking
 Direct IP call without SIP proxy
 Fuzzy Search Call
 Action Plan  Dial Plan  Call Completion/Auto Redial
 Primary and Backup SIP Servers  Default Ext Line  Multicast
Audio
 HD Voice: HD handset, HD speaker  HAC Handset
 Wideband ADC/DAC 16KHz Sampling
 Narrowband Codec: G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB,
iLBC
 Wideband Codec: G.722, Opus  Full-duplex Acoustic Echo Canceller (AEC)
 Voice Activity Detection (VAD) / Comfort
Noise Generation (CNG) / Background
Noise Estimation (BNE) / Noise Reduction
(NR) / Automatic Gain Control (AGC)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer  DTMF: In-band, Out-of-Band (RFC2833/ SIP
INFO)
 VQM voice quality monitoring
Network
 Physical: 10/100/1000 Mbps Ethernet, dual
bridged port for PC bypass  IP Mode: IPv4/IPv6/IPv4&IPv6
 IP Configuration: Static IP / DHCP / PPPoE
 Network Access Control: 802.1x  VPN: L2TP / OpenVPN
 VLAN
 LLDP
 QoS
 RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
 DNS-SRV (RFC 3263)
 Support Redundant Servers  Agent
 HTTPS Mutual Authentication Protocols
 SIP v1 (RFC2543) v2(RFC3261)
 UDP/TCP/TLS
 RTP/RTCP/SRTP（Optional/Compulsory）
 STUN
 DHCP
 IPv6
 LLDP
 PPPoE
 802.1x  802.1p/Q
 L2TP
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR-069
 AES128 & AES256
Deployment & Management
 Auto-Provisioning via
FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
 Screenshot
 Web Management Portal
 Web-based Packet Dump
 Configuration Export / Import
 Phonebook Import/Export
 Firmware Upgrade  Syslog
 Network Firewall
 Online Upgrade Physical Specifications
 LCD: 2.8-inch (320×240) Color Screen Keypad: 39 keys, including
 4 Soft-keys  7 DSS keys + 1 page key (withLED)
 5 Function keys (Contact, MWI, Mute, Headset, Redial)
 4 Navigation keys  1 OK key
 12 Standard Phone Digits keys  2 Volume Control keys, Up/Down 1 Hands-free key
 Bluetooth wireless handset（BTH60）x1 HD Handset (RJ9) x1（Optional） Standard RJ9 Handset Cord x1（Optional） 1.5M CAT.5E Ethernet Cable x1 Desktop Stand x1
 Status Indicator Light x1 (Red)
 Bluetooth Wireless Handset StatusIndicator x1 (Red, Green, andBlue)
 RJ9 Port x2: Handset x1, Headset x1 RJ45 Port x2: Network x1, PCx1(BridgedtoNetwork)
 Security Slot x1
 Power: DC5V/2A or PoE
 POE complies with the IEEE802.3afstandard
 Power adapter:
Input:100-240VAC~50/60Hz Output:5V/2A
 Power Consumption (Adapter): 1.35~4.4W Power Consumption (PoE): 1.89~5.6W Working Temperature: 0~45℃ Working Humidity: 10~95% Installation:  Desktop Stand
 Wall mountable (optional)
 Color: Dark Grey
 Qty/CTN: 10 PCS
 N.W/CTN: 10.11 kg
 G.W/CTN: 11.10 kg  Device Dimensions:  Desktop Stand (40°): 191.8 x 164.5 x 174.2mm Desktop Stand (45°): 191.8 x 154.5 x 181.9 mm Wall mountable: 191.8 x 91.6 x 215.6mm Gift Box Dimensions: 309 x 270x66mm Outer CTN Dimensions: 560 x 355x 329mm(10 PCS

Handset Status Light
 Handset Programmable Keys(DTMF/Mute/Hold/
Speed Dial)
 Handset Auto Pairing
 Handset Searching Function  Handset Call Button (Answer/Double-click to Reject/
Redial/Long Press for 3 Seconds to Power On/Long
Press for 5 Seconds to Power Off)
 Handset Volume Control Keys (Increase/Decrease)
 Standby Time: 14 hours  Talk Time: 13 hours  Connection Distance: 10M/32feet
Handset Status Light
 Steady Orange (Charging)
 Steady Green (Charging/Charged)
 Orange Slow Blink (Disconnected)
 Blue Light (Paired with Phone)
 Blue and Green Blink(Searching for Handset)
 Red Slow Blink (less that 10% battery)
 Green Fast Blink(Answering Incoming Call)
 Green Slow Blink 3 Times (Handset Power Off)
 Steady Green for 3 Seconds (Handset Power On)
Handset Physical Specifications
 Bluetooth Wireless Handset Name: BTH60
 Keys: 4, including:  1 Programmable Key (with Red LED)
 1 Call Key
 2 Volume Control Keys, Increase/Decrease  Status Indicator Light x1 (Red/Green/Blue)
 Battery capacity :300mAh(Built-in)
 Net Weight: 187g/PCS
 Product Dimensions: 203mm x 46mm x 42.3mm
