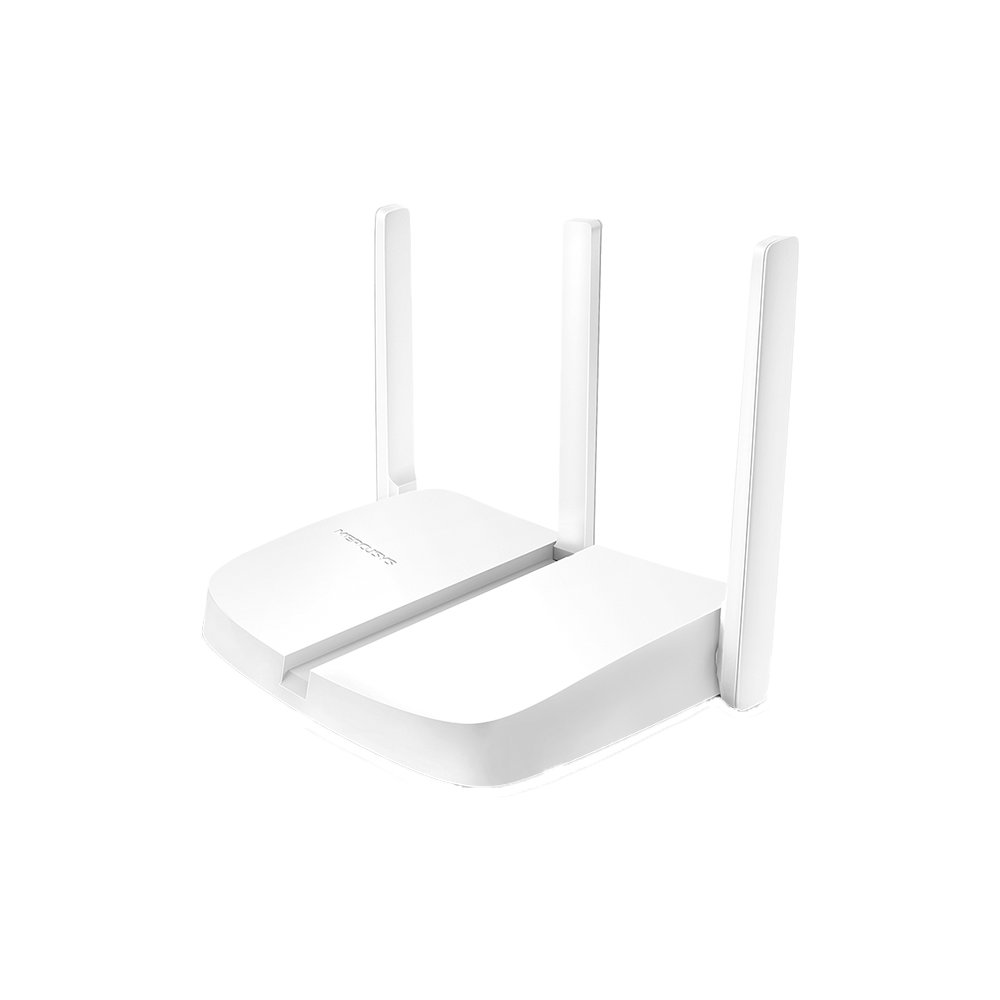

MW305R Mercusys Wireless N Router 300Mbps 3x 5dBi an
Përshkrim
- 300Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads
- Three 5dBi antennas greatly increase wireless signal strength, size and stability
- Intuitive webpage guides you through the setup process in minutes
Specifications
| Parameter | Specification |
|---|---|
| Standards | IEEE 802.11n / g / b |
| Frequency | 2.4 – 2.4835 GHz |
| WiFi Speed | 11n: up to 300 Mbps • 11g: 54 Mbps • 11b: 11 Mbps |
| Transmission Power | < 20 dBm |
| Antenna | 3 × 5 dBi fixed omni-directional antennas |
| Security | WPA-PSK / WPA2-PSK |
| Functions | WDS Bridge |
Reception Sensitivity
| Speed | Sensitivity |
|---|---|
| 270M | -70 dBm |
| 130M | -72 dBm |
| 54M | -74 dBm |
| 11M | -87 dBm |
| 6M | -92 dBm |
| 1M | -94 dBm |
Hardware
| Parameter | Specification |
|---|---|
| Dimensions | 147 × 115 × 34 mm |
| LAN Ports | 3 × 10/100 Mbps |
| WAN Port | 1 × 10/100 Mbps |
| Button | Reset / WPS |
| Power Supply | 5V DC / 0.6A |
Software & Management
| Function | Description |
|---|---|
| WAN Type | Dynamic IP / Static IP / PPPoE / L2TP / PPTP |
| Parental Control | Yes |
| Access Control | Yes |
| Management | Local & Remote |
| Port Forwarding | Virtual Server, UPnP, DMZ |
| Dynamic DNS | DynDNS, NO-IP |
| Firewall | IP & MAC address binding |
| Protocols | IPv4 / IPv6 |
| Guest Network | 2.4 GHz |
| DHCP Server | Yes |
Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -40°C – 70°C |
| Operating Humidity | 10% – 90% non-condensing |
| Storage Humidity | 5% – 90% non-condensing |
