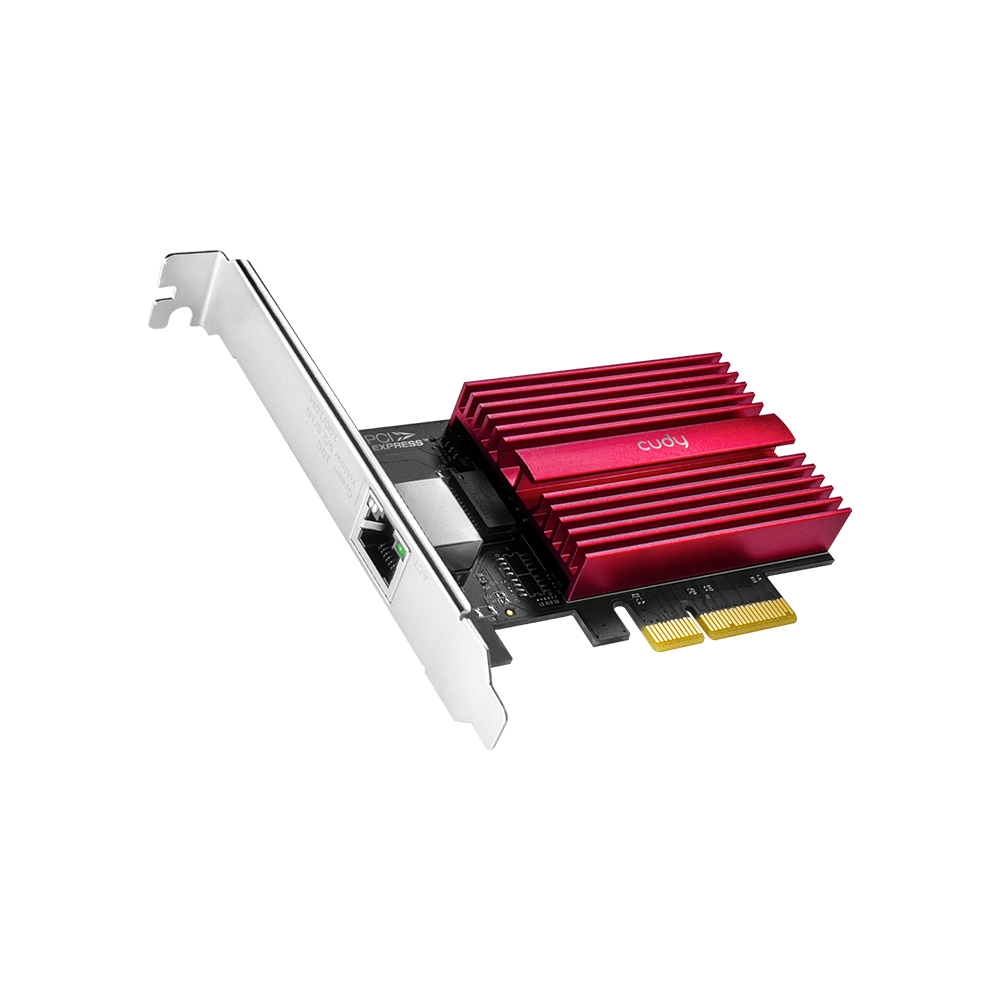

10 Gbps PCI-E Ethernet Adapter (PE10G)
Përshkrim
- 10 Gbps Ethernet Port
- 10G/5G/2.5G/1G/100M/10M 1
- Wake on LAN, Flow Control
- PC, Servers, Synology NAS, etc
- Windows, Linux, DSM etc 2
Specifications
| Category | Specification | Details |
|---|---|---|
| Model | Model Version | PE10G 1.0 |
| Interfaces | Ethernet Port | 1 × 10G RJ45 |
| LED Indicators | LED Status | Speed / Link / ACT |
| Network Standards | IEEE 802.3 Protocols | 802.3x Flow Control802.3az Power Saving802.3i 10BASE-T802.3u 100BASE-T802.3ab 1000BASE-T802.3bz 2.5GBASE-T / 5GBASE-T802.3an 10GBASE-T |
| Performance | Data Rate | Auto-negotiation: 10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps / 10 Gbps |
| System Requirements | Hardware Requirement | PCI-E 3.0 x4 or higher slot required |
| Compatible OS | Operating Systems | Windows 10/11 (64-bit)Windows Server 2022LinuxDSM 7.2+ |
| Environment | Operating Temperature | 0 ℃ ~ 65 ℃ (32 ℉ ~ 149 ℉) |
| Storage Temperature | -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) | |
| Operating Humidity | 10% ~ 90% RH (non-condensing) | |
| Storage Humidity | 5% ~ 95% RH (non-condensing) | |
| Certifications | Compliance | FCC, CE |
| Mechanical | Dimensions (without bracket) | 100 × 66 × 15 mm3.94 × 2.6 × 0.59 inches |
| Product Weight | 84.5 g (2.98 oz.) | |

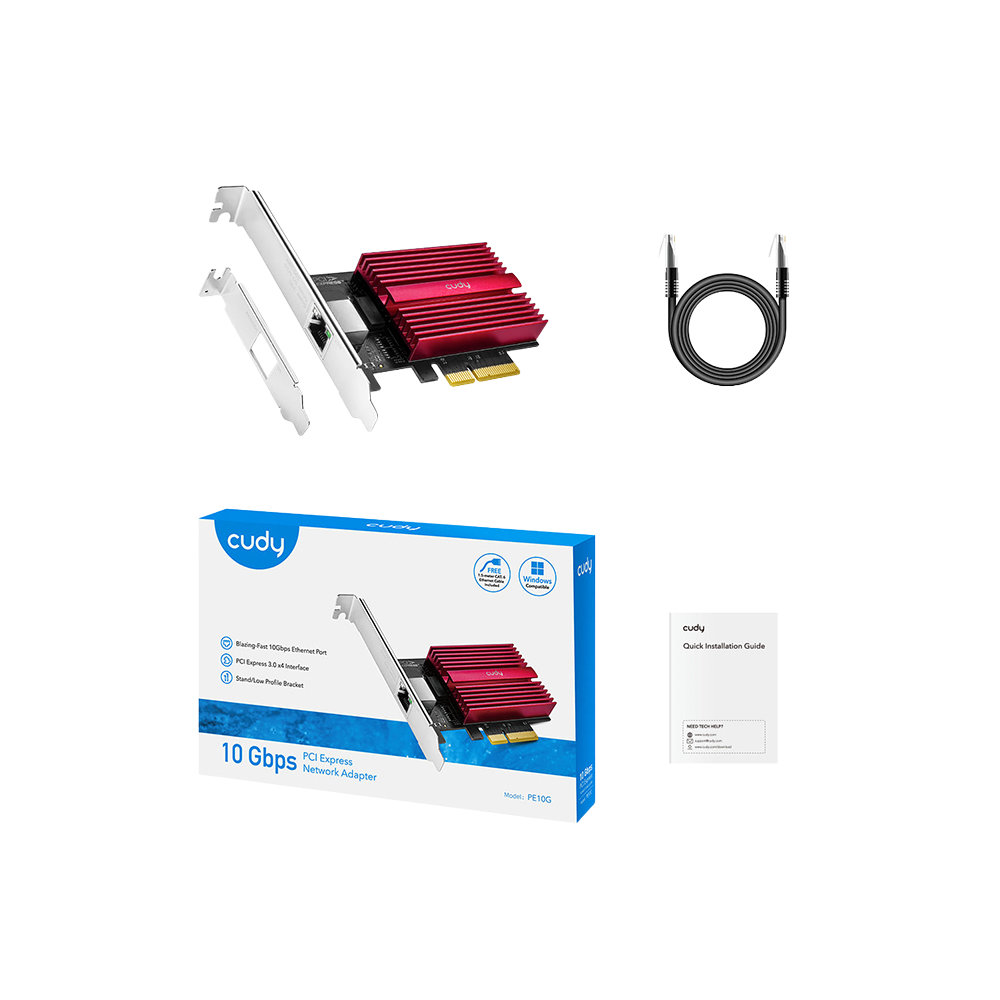

| Package Content | Included Items | PE10G AdapterLow-Profile BracketEthernet CableInstallation Guide |
| Ordering Information | Retail Package Dimension | 220 × 144 × 35 mm8.66 × 5.67 × 1.38 inches |
| Retail Package Weight | 247 g (8.71 oz.) | |
| Units per Carton | 20 | |
| Carton Net Weight | 4.9 kg (10.8 lbs) | |
| Carton Gross Weight | 5.5 kg (12.13 lbs) | |
| Carton Dimension | 38.6 × 30.5 × 23.9 cm15.2 × 12.01 × 9.41 inches |
Software Specification
