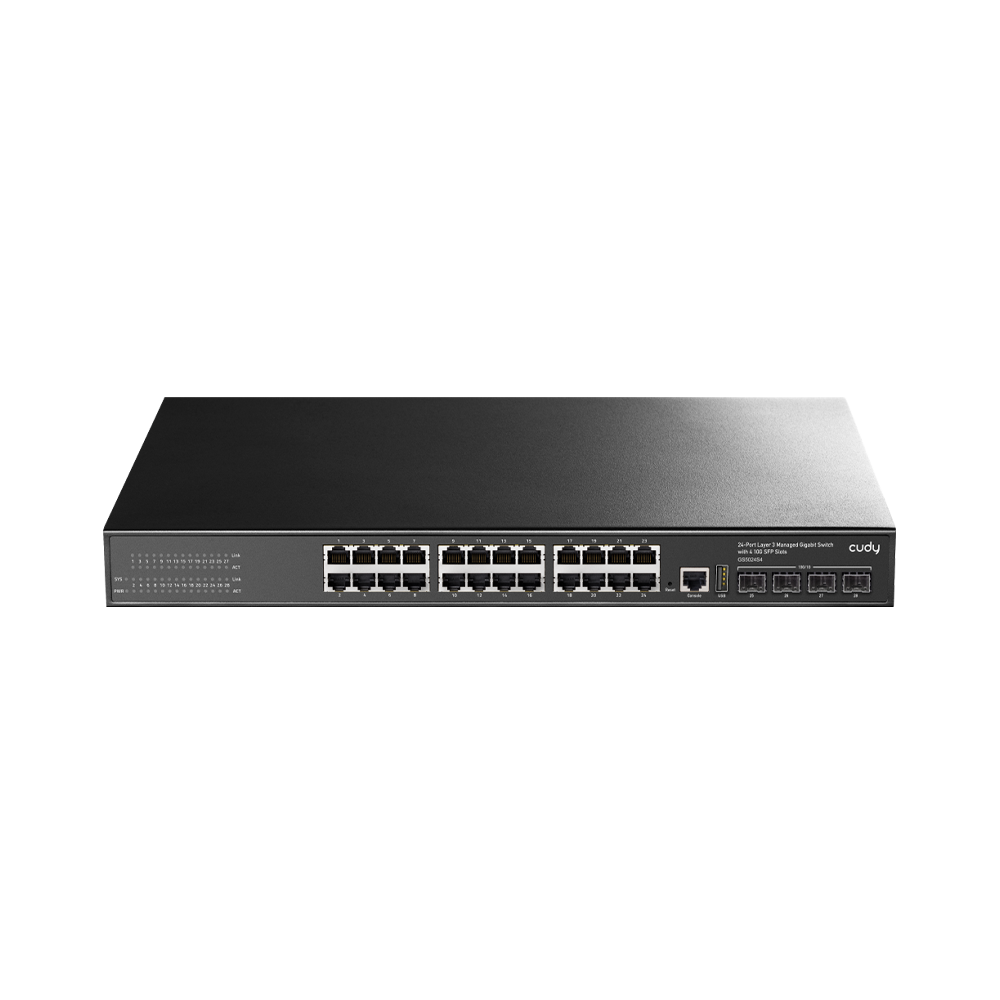

24-GbE 4-SFP+ L3 Managed Gigabit Switch (GS5024S4)
GS5024S4
Përshkrim
- 24× GbE
- 4× 10G SFP+
- Fanless and Silent Cooling
- L3 Managing Features
Hardware Specification
| Specification | Details |
|---|---|
| Model Version | GS5024S4 1.0 |
| Ethernet Protocols | 802.3i (10 Mbps)802.3u (100 Mbps)802.3ab (1 Gbps)802.3z (1.25 Gbps Fiber)802.3ae (10GBASE-SR/SW/LW/EW/LR/PR/ER)802.3aq (10GBASE-LRM)802.3x Flow Control802.3az Power Saving802.3ad Link Aggregation |
| Layer 2 Protocols | 802.1d STP802.1s MSTP802.1w RSTP802.1p QoS / CoS802.1q VLAN802.1ab LLDP / LLDP-MED802.1x Authentication |
| Flash Memory | 16 MB (128 Mbit) NOR |
| RAM | 128 MB (1 Gbit) DDR3 |
| RJ45 Ports | 24 × Gigabit Ethernet |
| SFP+ Ports | 4 × 10G SFP+ |
| Console Ports | 1 × RJ45 Console1 × USB Console |
| Physical Buttons | Reset Button |
| LED Indicators | PowerSystemSpeed / Link / ACT per port |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.232 Mpps |
| MAC Address Table | 16,384 |
| VLAN Support | Up to 4,096 VLANs |
| Jumbo Frame | 12 KB |
| Packet Buffer | 12 Mbit |
| Copper Cable Distance | Cat3+: 100 m @ 10 MbpsCat5+: 100 m @ 100 MbpsCat5e+: 100 m @ 1 Gbps |
| Power Supply | AC 90–260V, 50/60Hz |
| Grounding | Three-prong plugDedicated grounding point |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
| EMI / EMS Standards | FCC Part 15EN55032 Class AEN61000-4-2 (ESD)EN61000-4-4 (EFT)EN61000-4-5 (Surge) |
| Installation | DesktopRack-mount (brackets included) |
| Casing Material | Metal |
| Dimensions | 440 × 205 × 44 mm |
| Product Weight | 2643 g |

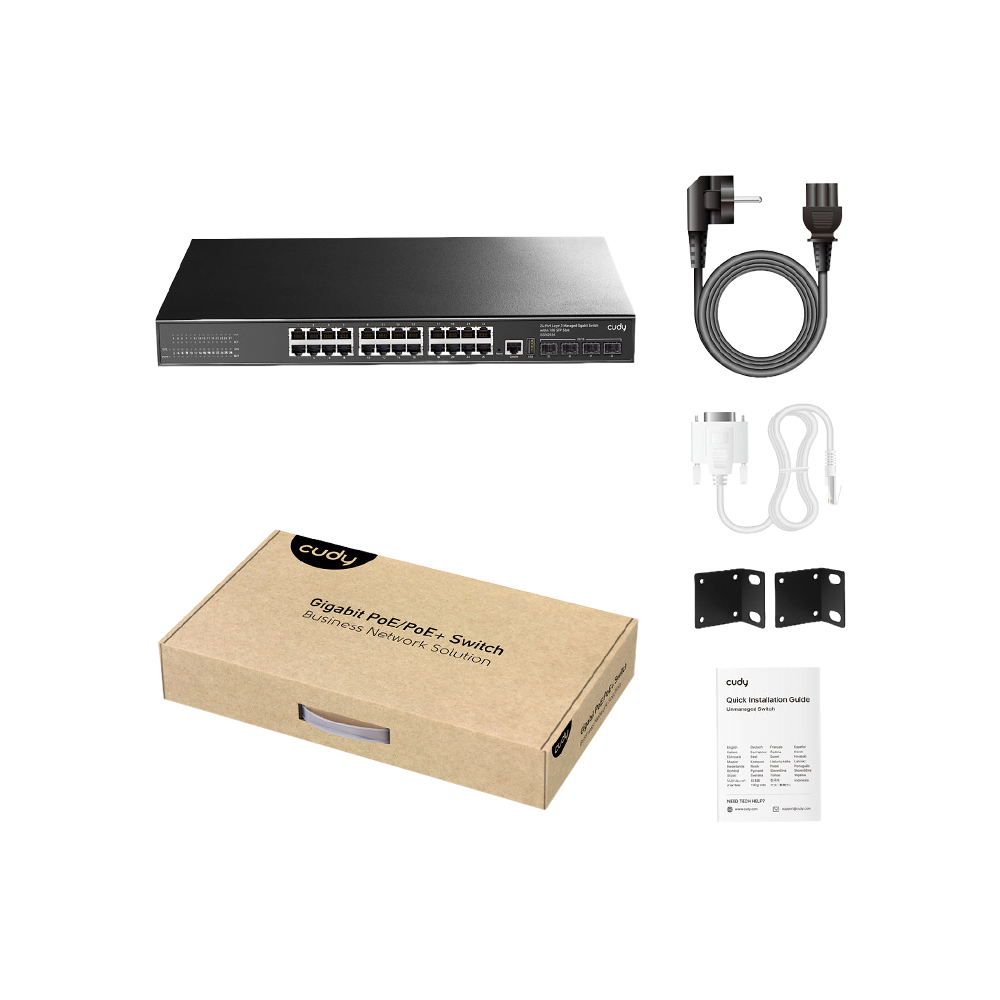

| Package Contents | Switch UnitPower CordInstallation GuideRack Mounting Kit |
| Retail Package Size | 500 × 290 × 85 mm |
| Retail Package Weight | 3281 g |
| Carton Net Weight | 16.4 kg |
| Carton Gross Weight | 17.4 kg |
Software Specification
| Protocol | Description |
|---|---|
| 802.1d | STP (Spanning Tree Protocol) |
| 802.1s | MSTP (Multiple Spanning Tree Protocol) |
| 802.1p | Layer 2 QoS / CoS (Traffic Priority) |
| 802.1q | VLAN Bridge Operation |
| 802.1w | RSTP (Rapid Spanning Tree Protocol) |
| 802.1ab | LLDP / LLDP-MED |
| 802.1x | User Authentication |
DATASHEET
