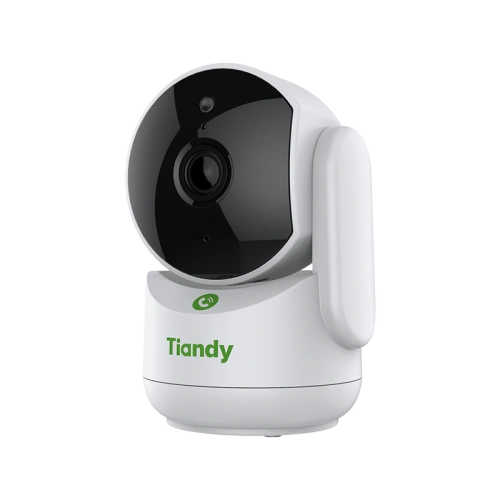

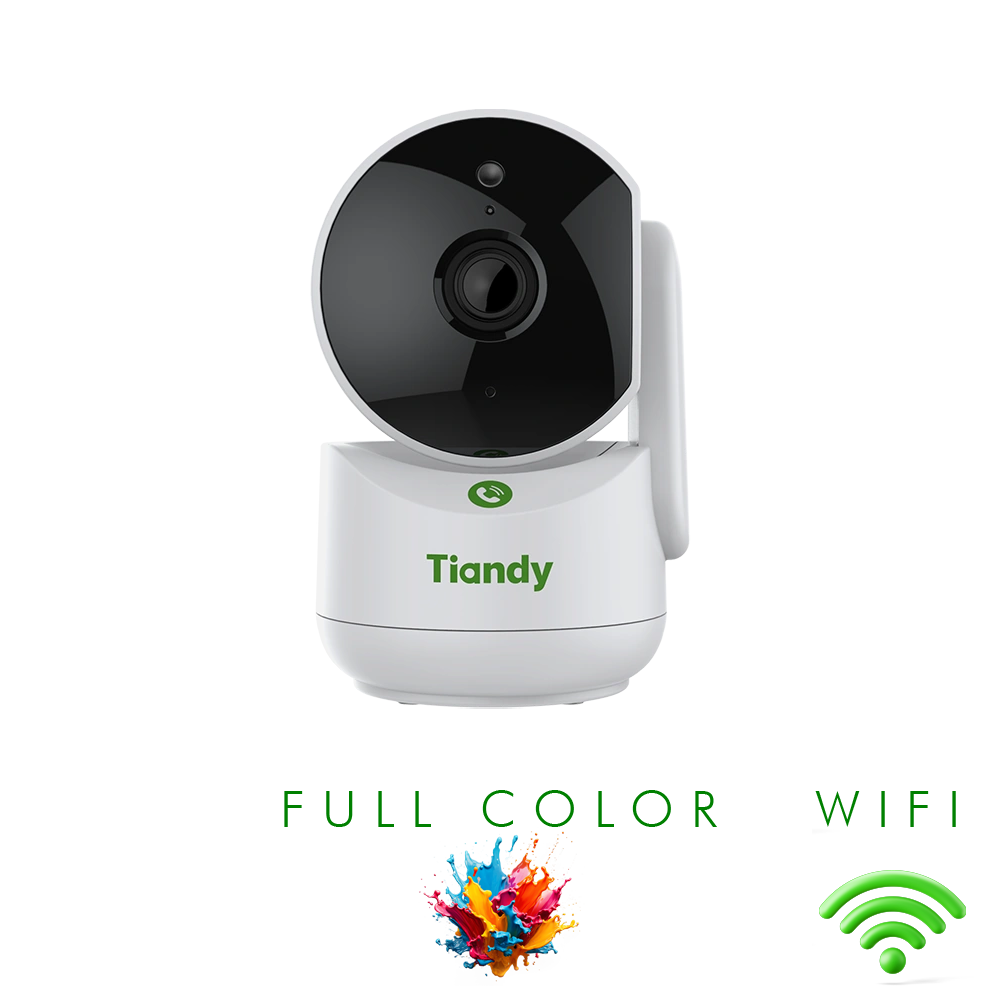

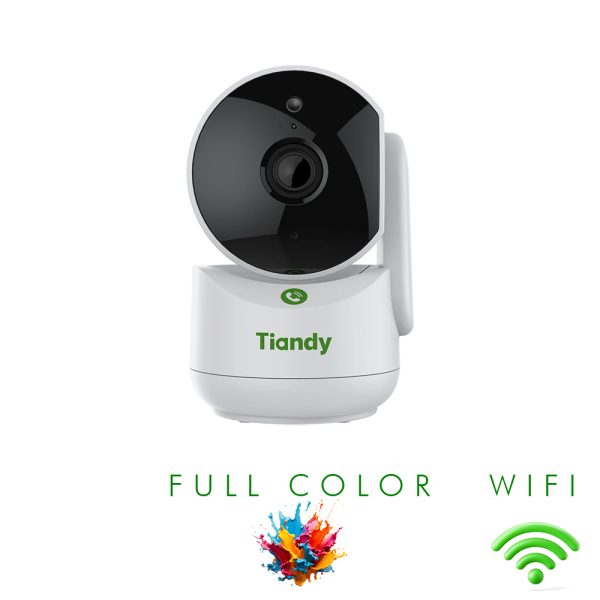

3MP Fixed Color Maker Wi-Fi PT Camera (TC-H332A)
TC-H332A
Spec:I2W/WIFI/Eu/4mm
48.04 €
|
Camera |
|
|
Image Sensor |
1/3″CMOS |
|
Min. Illumination |
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
IR-cut filter with auto Switch (ICR) |
|
Smart IR |
Yes |
|
WDR |
DWDR |
|
S/N |
>38dB |
|
Angle Adjustment |
0~350°(P); -90~90°(T) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
4mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F2.0 |
|
Aperture Type |
Fixed |
|
Field of View |
82.5°(H); 44°(V); 97.8°(D) |
|
DORI Distance |
Detect:65.31m Observe:25.92m Recognize:13.06m Identify:6.53m |
|
Pan&Tilt |
|
|
Pan Speed |
45°/s |
|
Tilt Speed |
30°/s |
|
Preset |
255 |
|
Illuminator |
|
|
IR LEDs |
4 |
|
IR Distance |
Up to 15m |
|
Wavelength |
850nm |
|
White LEDs |
1 |
|
Whitelight Distance |
8m |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~4Mbps |
|
Audio Compression |
G.711A/G.711U |
|
Audio Sampling Rate |
8kHz/16kHz |
|
Image |
|
|
Max. Resolution |
3MP,2304×1296@20fps |
|
Main Stream |
PAL: 20fps(2304×1296, 1920×1080, 1280×720, 704×576) NTSC: 20fps(2304×1296, 1920×1080, 1280×720, 704×480) |
|
Sub Stream |
PAL:20fps(704×576, 704×288, 352×288, 640×360) NTSC:20fps(704×480, 704×240, 352×240, 640×360) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
Exceptions Alarm |
Disk Full; Disk R/W Error; IP Address Conflict |
|
Linkage Method |
Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
|
Video Analytics |
Smart Alarm |
|
Auto-Tracking |
Yes |
|
Network |
|
|
Protocols |
TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
|
System Compatibility |
ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Moblie Client |
EasyLive Plus |
|
Wi-Fi |
|
|
Transmission Distance |
Up tp 30m( based on actual environment) |
|
Wireless Standard |
IEEE802.11b/ 802.11g/802.11n |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
20/40MHz |
|
Wi-Fi Security |
WPA-PSK/WPA2-PSK |
|
Interface |
|
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes |
|
Reset Button |
Yes |
|
On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 512GB |
|
General |
|
|
Operating Temperature |
-10℃-45℃(14℉~113℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-10℃-45℃(14℉~113℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC5V±25%,Max. 7W |
|
Protection |
Surge500V; ESD6000V |
|
Boundary Dimensions |
74(L)74(W)118(H)mm |
|
Package Dimensions |
97(L)97(W)165(H)mm |
|
GrossWeight |
0.38Kg |
