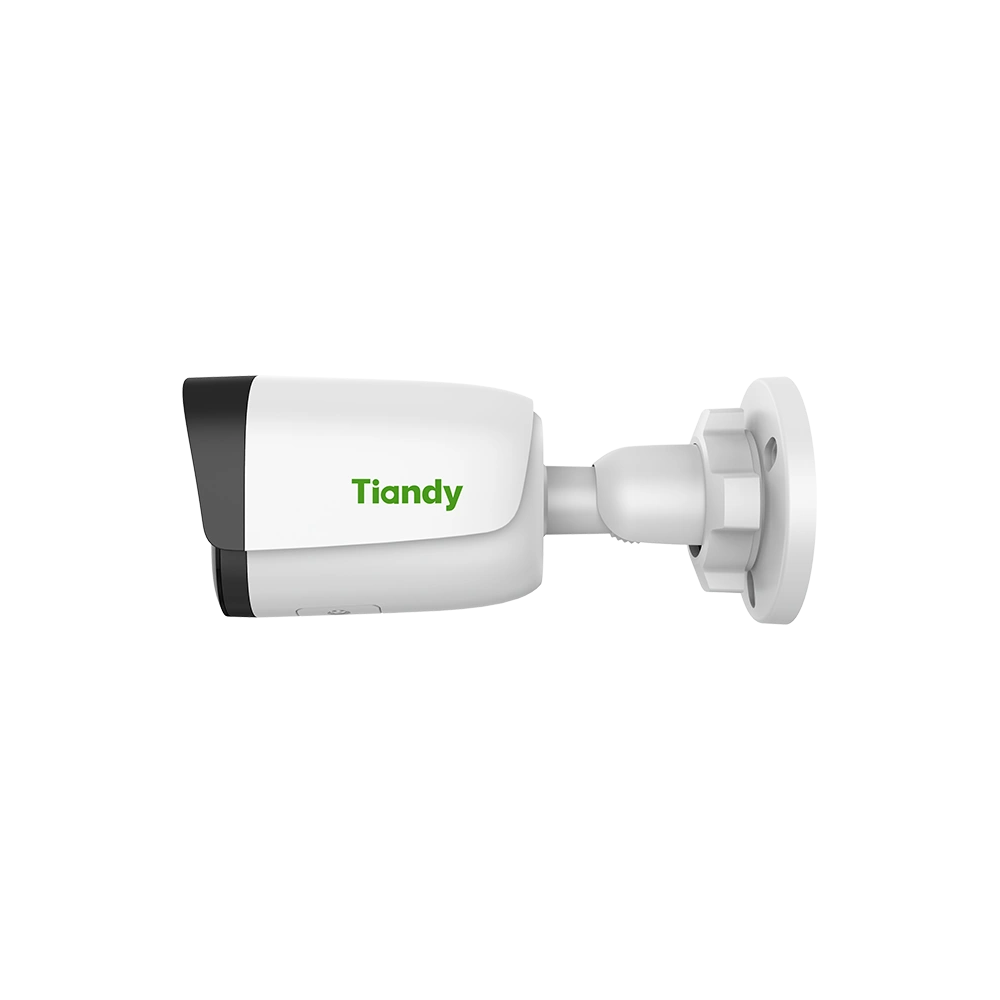

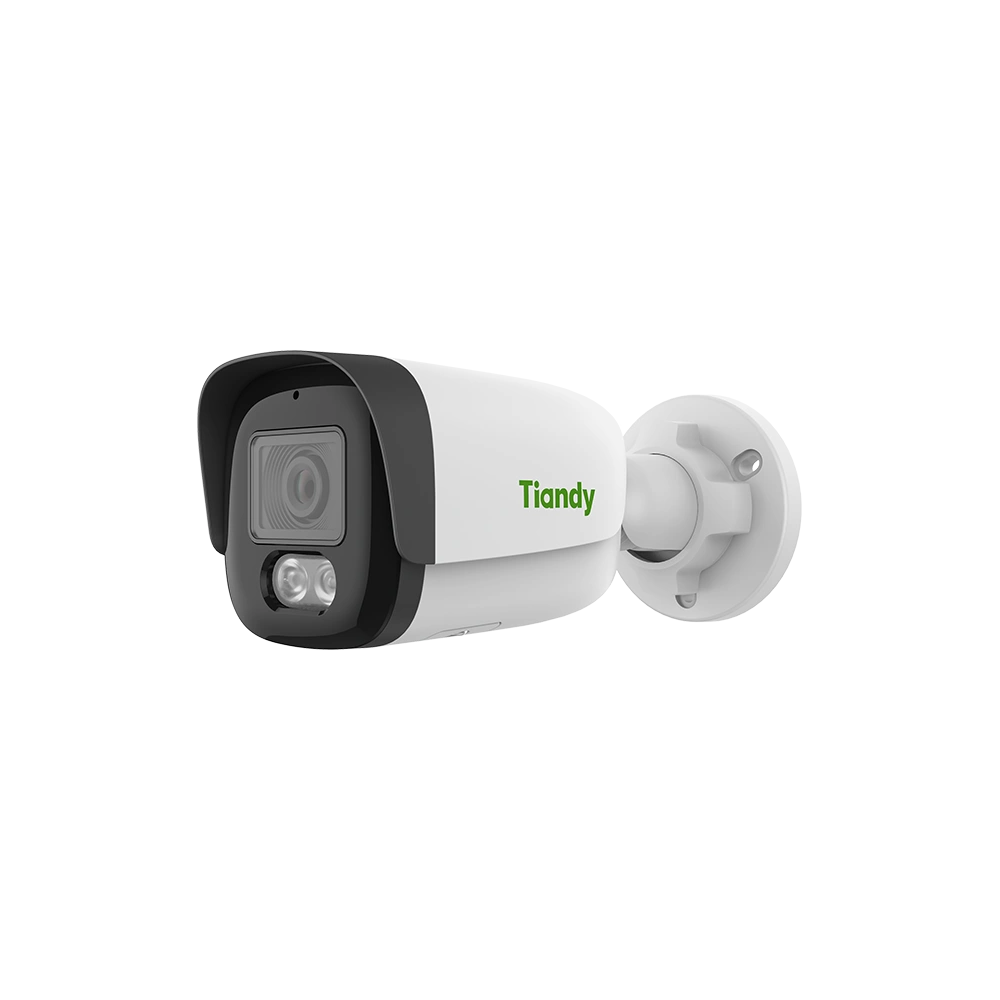

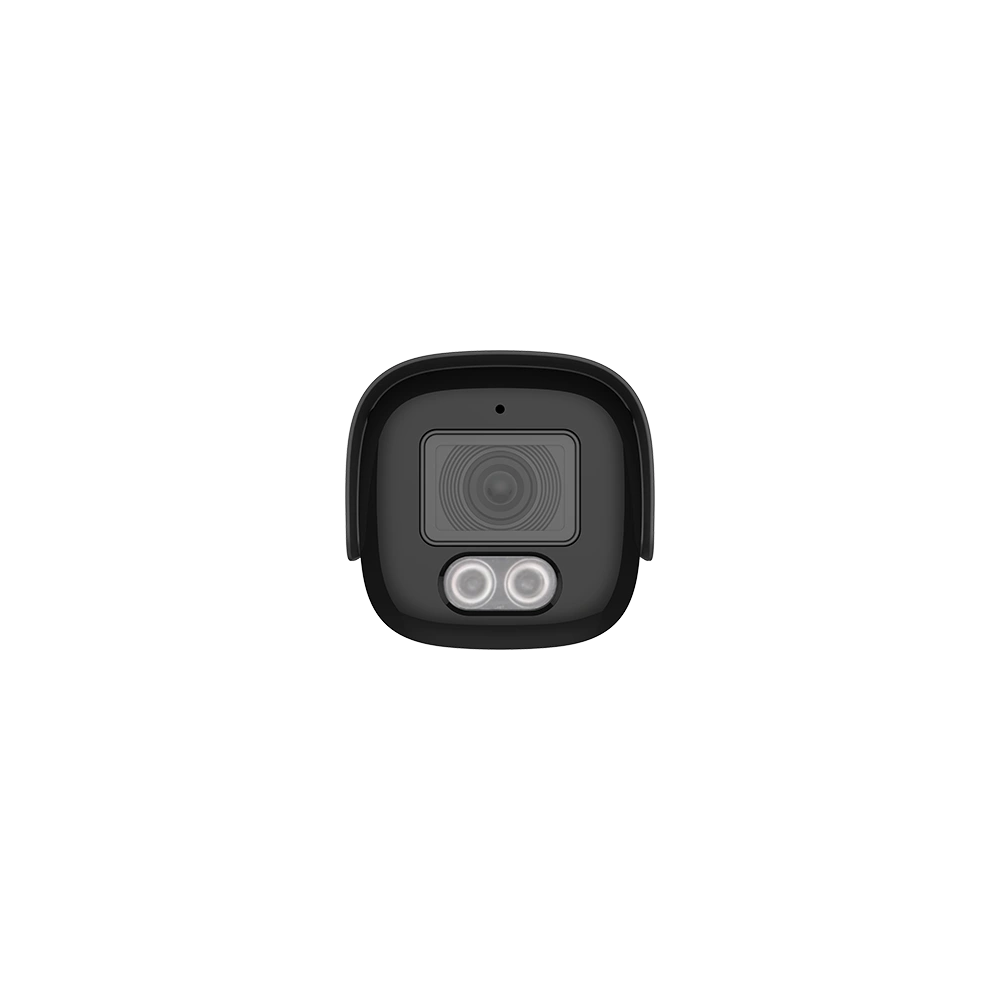

5MP Fixed Color Maker Bullet Camera (TC-C35WP 3FRA-28)
Përshkrim
Kjo kamerë IP 5MP me WDR 120dB ofron cilësi shumë të lartë imazhi edhe në ndriçim ekstrem, falë aperturës F1.0 dhe ndriçimit aktiv me dritë të bardhë. Me analitikë inteligjente për njerëz dhe automjete, Tripwire dhe Perimeter, si dhe mbrojtje IP67, është ideale për siguri profesionale 24/7 në ambiente të jashtme dhe të brendshme.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.0004 Lux @ (F1.0, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1s – 1/100000s |
| Day & Night | Fixed IR-cut |
| WDR | True WDR 120 dB |
| Signal-to-Noise Ratio | >39 dB |
| Angle Adjustment | Pan: 0–360° / Tilt: 0–90° / Rotate: 0–360° |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Aperture | F1.0 (Fixed) |
| Field of View | H: 109° / V: 59° / D: 125.4° |
| DORI Distance | Detect: 56 m / Observe: 22 m / Recognize: 11 m / Identify: 5.6 m |
| White LEDs | 2 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32 kbps – 6 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate | 8 kHz / 32 kHz / 48 kHz |
| Maximum Resolution | 5 MP (3072 × 1728 @ 30 fps) |
| Main Stream | PAL: up to 25 fps / NTSC: up to 30 fps |
| Sub Stream | PAL/NTSC up to 30 fps |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Presets |
| ROI | 8 rectangular static areas |
| OSD | Up to 48 characters per line |
| Privacy Mask | 4 static black areas |
| Defog | Yes |
| General Alarms | Motion Detection, Mask Alarm |
| Exception Alarms | Disk Full, Disk R/W Error, IP Conflict, Network Disconnection |
| Linkage Method | Recording, Capture, Notify Surveillance Center |
| Video Analytics | Human & Vehicle Classification, Tripwire, Perimeter |
| Behavior Analysis Rules | 2 rules per scene |
| ANR | Yes |
| Network Protocols | RTSP, HTTP/HTTPS, TCP, UDP, SNMP, DHCP, DNS, NTP, TLS v1.2, IPv4, SSH, FTP, Multicast |
| System Compatibility | ONVIF (Profile S/T/G), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web Browser | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Network Interface | 1× RJ-45 (10/100 Base-T) |
| Built-in Microphone | Yes |
| Reset Button | Yes |
| On-board Storage | microSD / microSDHC / microSDXC up to 512 GB |
| RTC | Yes |
| Operating Temperature | -35°C ~ 65°C |
| Operating Humidity | ≤95% RH |
| Storage Temperature | -35°C ~ 65°C |
| Power Supply | DC 12V ±25%, Max. 6W; PoE IEEE 802.3af, Max. 7W |
| Protection | Surge 4000V, ESD 6000V, IP67 |
| Dimensions | 161 × 68 × 66 mm |
| Package Dimensions | 215 × 95 × 120 mm |
| Gross Weight | 0.44 kg |
