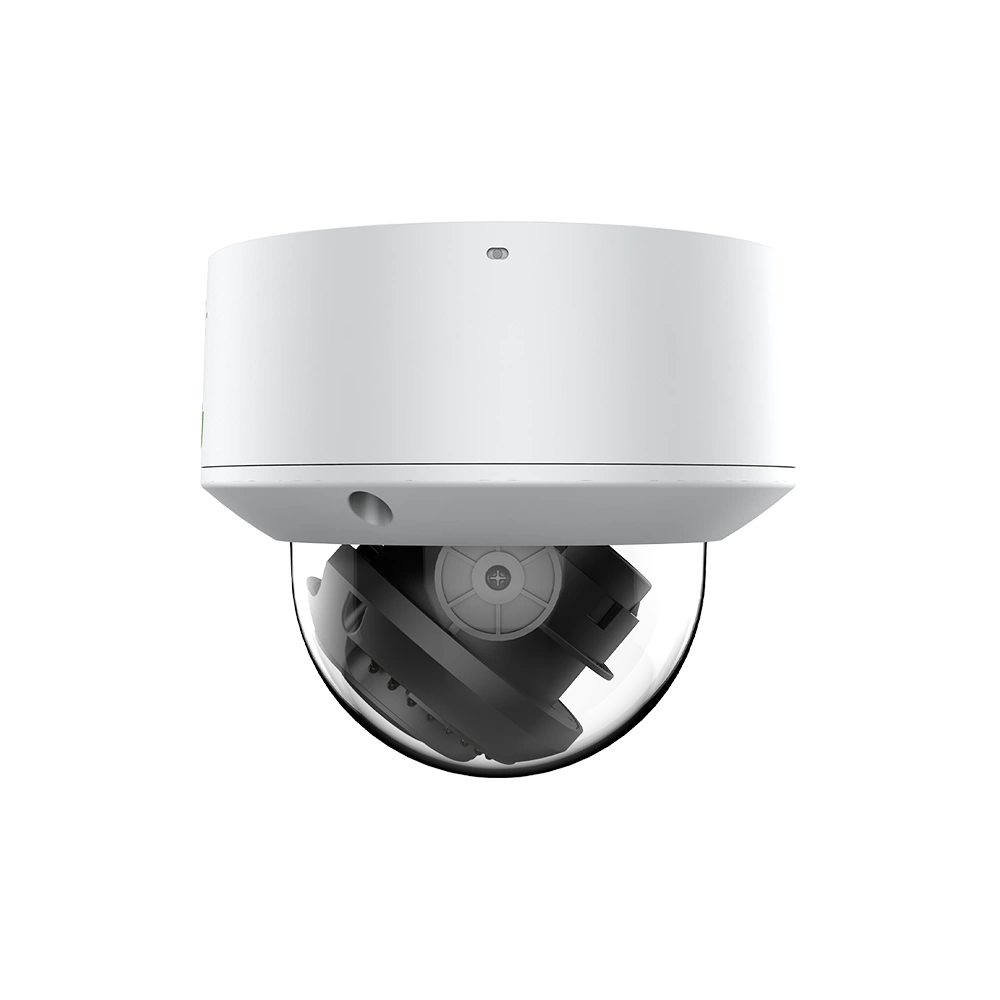

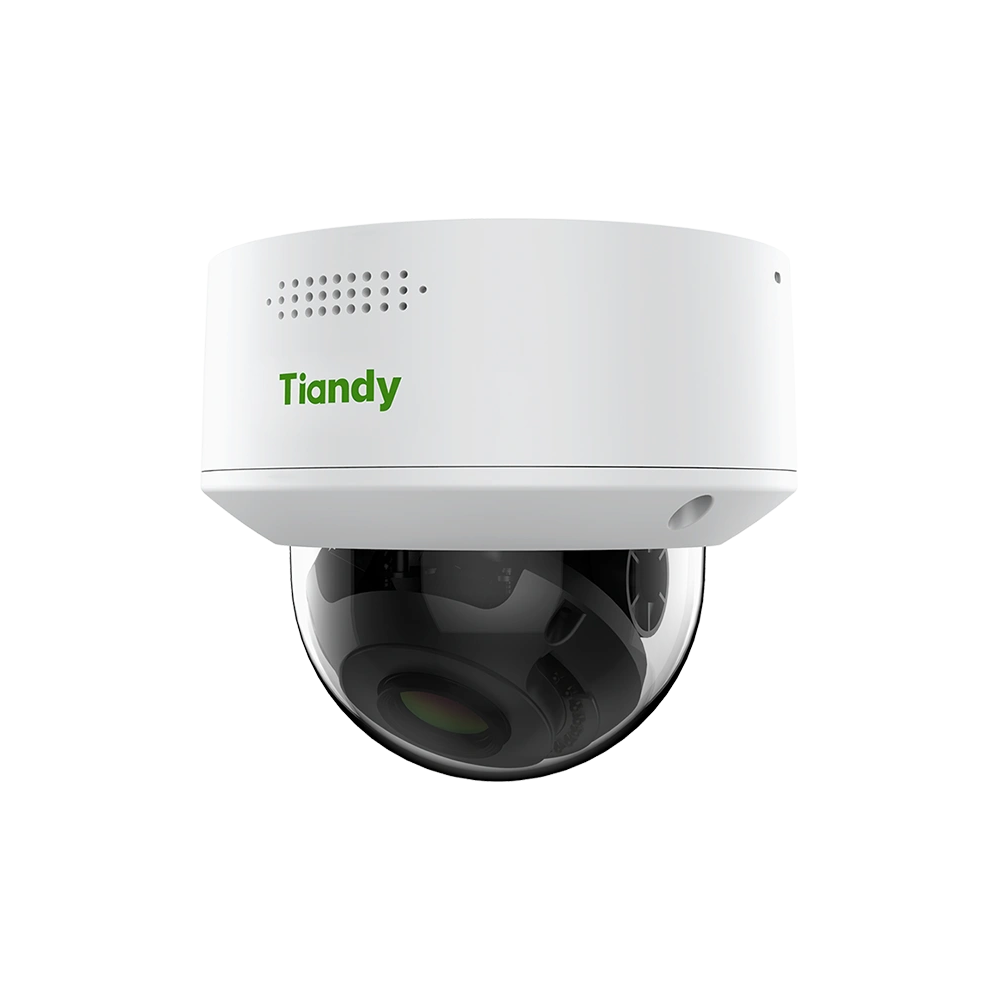

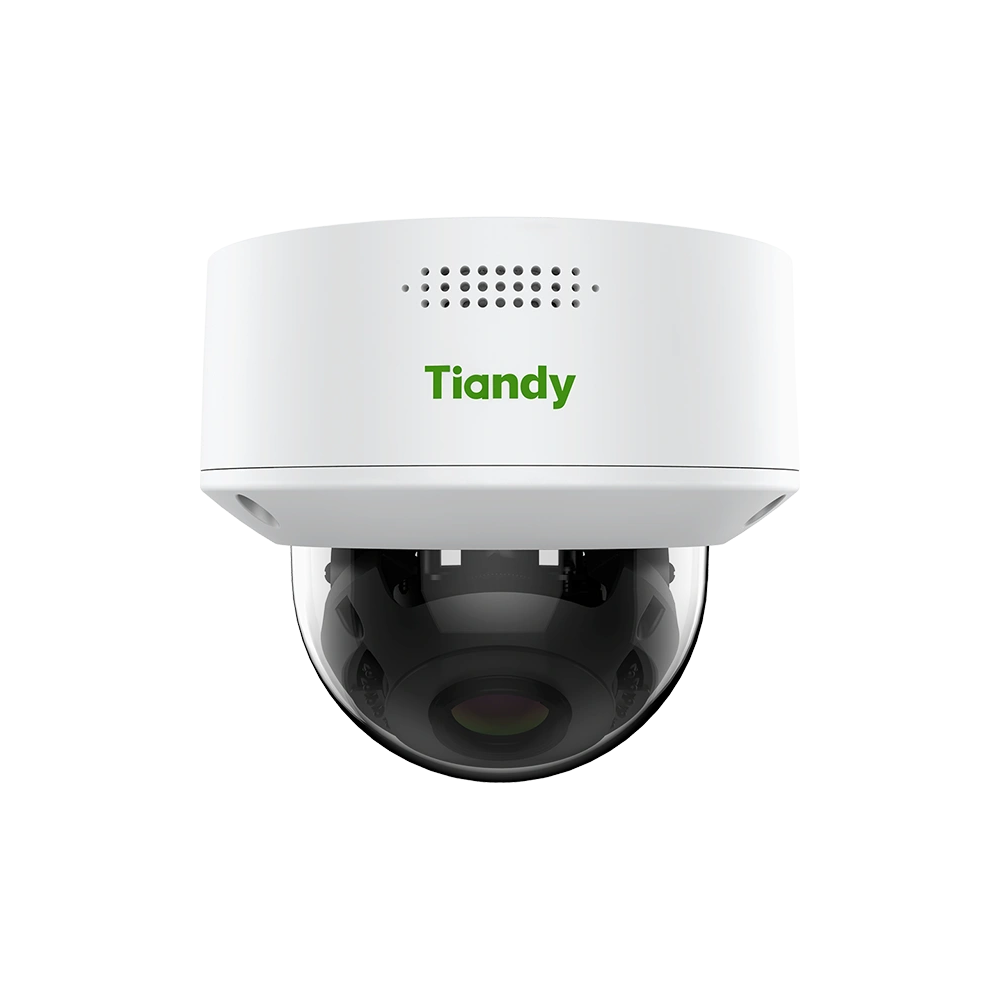

5MP Motorized Color Maker Dome Camera (TC-C35MS 3LHA-27135)
Përshkrim
Kjo kamerë IP 5MP me lente motorike (2.7–13.5 mm) ofron fleksibilitet të lartë në zmadhim, cilësi të shkëlqyer imazhi dhe ndriçim të fuqishëm falë 18 IR LED dhe 18 White LED. Me WDR 120dB, analitikë inteligjente për njerëz dhe automjete, si dhe mbrojtje IP67 & IK10, është ideale për monitorim profesional të perimetrave, ambienteve industriale, magazinave dhe hapësirave të jashtme me kërkesa të larta sigurie.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120 dB |
| Signal-to-Noise Ratio | >39 dB |
| Angle Adjustment | Pan: 0–345° / Tilt: 0–90° / Rotate: 0–350° |
| Lens Type | Motorized |
| Focal Length | 2.7 – 13.5 mm |
| Lens Mount | Φ14 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 98.3°–32.2° / V: 54.9°–18.2° / D: 125.6°–37° |
| DORI Distance | Detect: 56–240 m / Observe: 22–95 m / Recognize: 11–48 m / Identify: 5.6–24 m |
| IR LEDs | 18 |
| IR Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| White LEDs | 18 |
| White Light Distance | Up to 10 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32 kbps – 6 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate | 8 kHz / 32 kHz / 48 kHz |
| Maximum Resolution | 5 MP (3072 × 1728 @ 30 fps) |
| Main Stream | PAL: up to 25 fps / NTSC: up to 30 fps |
| Sub Stream | PAL/NTSC up to 30 fps |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Presets |
| ROI | 8 rectangular static areas |
| OSD | Up to 48 characters, multi-size |
| Privacy Mask | 4 static black areas |
| Defog | Yes |
| General Alarms | Motion Detection, Mask Alarm, Alarm Input |
| Exception Alarms | Disk Error, IP Conflict, Network Disconnection |
| Linkage Methods | Recording, Capture, Notify Center, Alarm Output |
| Video Analytics | Human & Vehicle Classification, Tripwire, Perimeter |
| Behavior Analysis Rules | 2 rules per scene |
| ANR | Yes |
| Network Protocols | RTSP, HTTP/HTTPS, TCP/UDP, SNMP, DHCP, DNS, IPv4, SSH, FTP |
| System Compatibility | ONVIF (Profile S/T/G), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Network Interface | 1× RJ-45 (10/100 Base-T) |
| Audio I/O | 1× Audio In / 1× Audio Out |
| Alarm I/O | 1× Alarm In / 1× Alarm Out |
| Built-in Microphone | Yes |
| Reset Button | Yes (Built-in) |
| On-board Storage | microSD / microSDHC / microSDXC up to 512 GB |
| RTC | Yes |
| Operating Temperature | -35°C to 65°C |
| Operating Humidity | ≤95% RH |
| Power Supply | DC 12V ±25%, Max. 7W / PoE IEEE 802.3af, Max. 8W |
| Protection | Surge 4000V, ESD 6000V, IP67, IK10 |
| Dimensions | 143 × 143 × 123 mm |
| Package Dimensions | 250 × 180 × 175 mm |
| Gross Weight | 1.147 kg |
