AX3000 2.5G Wi-Fi 6 Access Point (AP3000)
85.99 €
AP3000
Përshkrim
- 1.3 GHz Dual-Core CPU
- 512 MB RAM
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi 1
- 1× Shielded 2.5GbE PoE IN
- 802.3at, Passive PoE, DC
- Watchdog, Schedule Reboot
- 150 Connected Devices 2
- Covers 130 m² (1,400 ft²) 3
Hardware Specification
| Specification | Details |
|---|---|
| Model Version | AP3000 1.0 |
| CPU | 1.3 GHz Dual-Core CPU |
| Flash / ROM | 256 MB (2 Gbit) NAND |
| RAM | 512 MB (4 Gbit) DDR4 |
| Wi-Fi 5 GHz Speed | 2402 Mbps |
| Wi-Fi 2.4 GHz Speed | 574 Mbps |
| 5 GHz Streams | 3T3R (3×3 MIMO) |
| 2.4 GHz Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 5× Internal |
| FEM / PA / LNA | 5 GHz: 3× External2.4 GHz: 2× External |
| Beamforming | Yes |
| Max Wireless Range | Up to 200 m (open space) |
| Wall Penetration | 2× wooden walls (<10 cm)1× concrete wall (<20 cm) or 2× concrete walls (<10 cm) |
| Ethernet Port | 1× 2.5G RJ45 (PoE Supported) |
| LED Indicator | System |
| Buttons | Reset |
| Power Methods | DC Power802.3af / 802.3at PoEPassive PoE |
| Power Input | DC: 12V⎓1.5APassive PoE: 48–57V⎓PoE: IEEE 802.3af/at |
| Power Adapter | AP3000: Not includedAP3000_P: 48V Passive PoE Adapter |
| Max Power Consumption | 12 W |
| Idle Power Consumption | 6.1 W |
| Hardware Protection | Hardware Watchdog |
| ESD Protection | Contact: 4kVAir: 8kV |
| Operating Temperature | -10 ℃ ~ 60 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
| Certifications | FCC, CE |
| Installation | Wall-mount / Ceiling-mount |
| Dimensions | Ø231.9 × 57.1 mm |
| Product Weight | EU: 489.6 g |

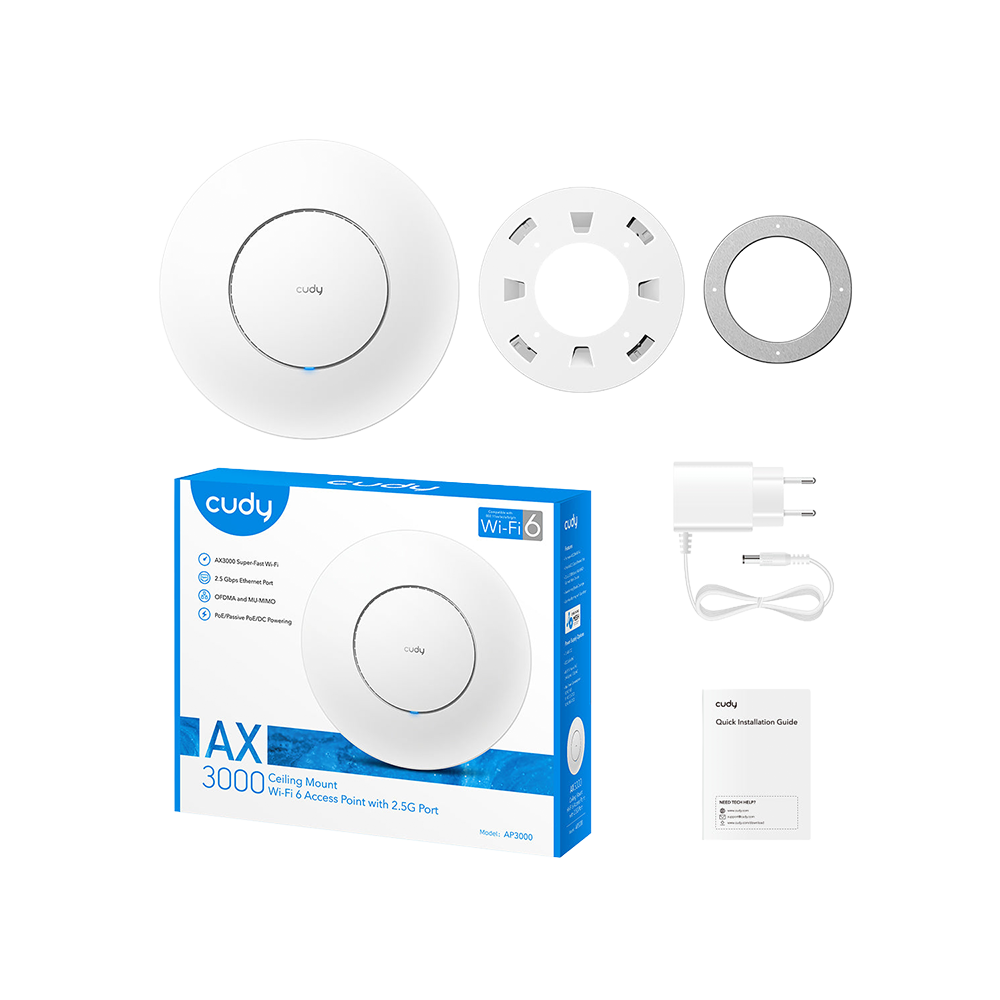

| Package Content | AP3000Mounting KitEthernet CableInstallation Guide |
| Retail Package Dimension | 283 × 238 × 68 mm |
| Units per Carton | 20 |
Software Specification
| Specification | Details |
|---|---|
| Model Version | AP3000 1.0 |
| Wi-Fi Standard | Wi-Fi 6 |
| Max Modulation | 1024-QAM |
| Wi-Fi Efficiency | OFDMA, MU-MIMO, BSS Color |
| Max Client Capacity | 256 |
| Recommended Clients | ≤150 |
| Max Channel Width | 160 MHz |
| Wi-Fi Security | WPA / WPA2 / WPA3 |
| WPS | Yes |
| Operation Modes | Wi-Fi RouterAccess PointRange ExtenderWISPClient |
| Mesh Technology | Cudy Mesh |
| Mesh Backhaul | Wireless BackhaulWired Backhaul |
| Multi-Band Backhaul | Yes |
| WAN Connection Modes | DHCPStatic IPPPPoEPPTPL2TP |
| QoS | Per-User Rate Limiting |
| DHCP Functions | ServerClient ListAddress Reservation |
| IP Versions | IPv4 / IPv6 |
| IPv6 Protocols | RelaySLAAC / DHCPv6Static IPPassthrough464XLATMAP-EDS-Lite |
| IPTV / VLAN | BridgeTag VLANVoIP VLANIPTV VLAN |
| TTL Customization | ExtendSpoofCustom |
| IGMP | IGMP ProxyIGMP Snooping |
| Port Forwarding | Port ForwardingPort TriggeringUPnPDMZ |
| Firewall | SPI FirewallDoS ProtectionBlock PING |
| ALG Support | IPSecL2TPPPTPFTPTFTPH323SIPRTSP |
| Captive Portal | Yes |
| VPN Server | WireGuardOpenVPNIPsecZerotierPPTPL2TP |
| VPN Client | WireGuardOpenVPNIPsecZerotierPPTPL2TP |
| DNS Options | DNS over TLSManual DNSRebind ProtectionOverride Clients’ DNS |
| DNS over TLS Providers | CloudflareGoogleQuad9Custom |
| Wake on LAN | Yes |
| Online Detection | Yes |
| Device Management | Wi-Fi ScheduleMAC FilterIP/MAC Binding |
| Per-Device Control | Internet On/OffVPN On/OffOnline Time ScheduleDevice Rename |
| Content Management | Domain FilterIP Filter |
| LED Control | Yes |
| Local Management | Web Configuration PageMobile App |
| Remote Management | HTTPS Config PageMobile AppTR-069 / TR-098 / TR-111 / TR-143 / TR-181 |
| Firmware Upgrade | Local UpdateOTA (App)Online Update |
| Reliability Features | Timed RebootBackup & Restore |
| Diagnostic Tools | DiagnosisPingTracerouteNSLookupSystem Log |
| Supported Languages | English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard Panels | Internet StatusMesh StatusDevice ManagementWAN / LAN StatusWISP StatusWi-Fi StatusVPN StatusDHCP Server StatusSystem Version |
| Dashboard Charts | Mesh TopologyInternet SpeedWISP SpeedWi-Fi Speed |
| Internet Failover Sequence | WAN → WISP |
DATASHEET
