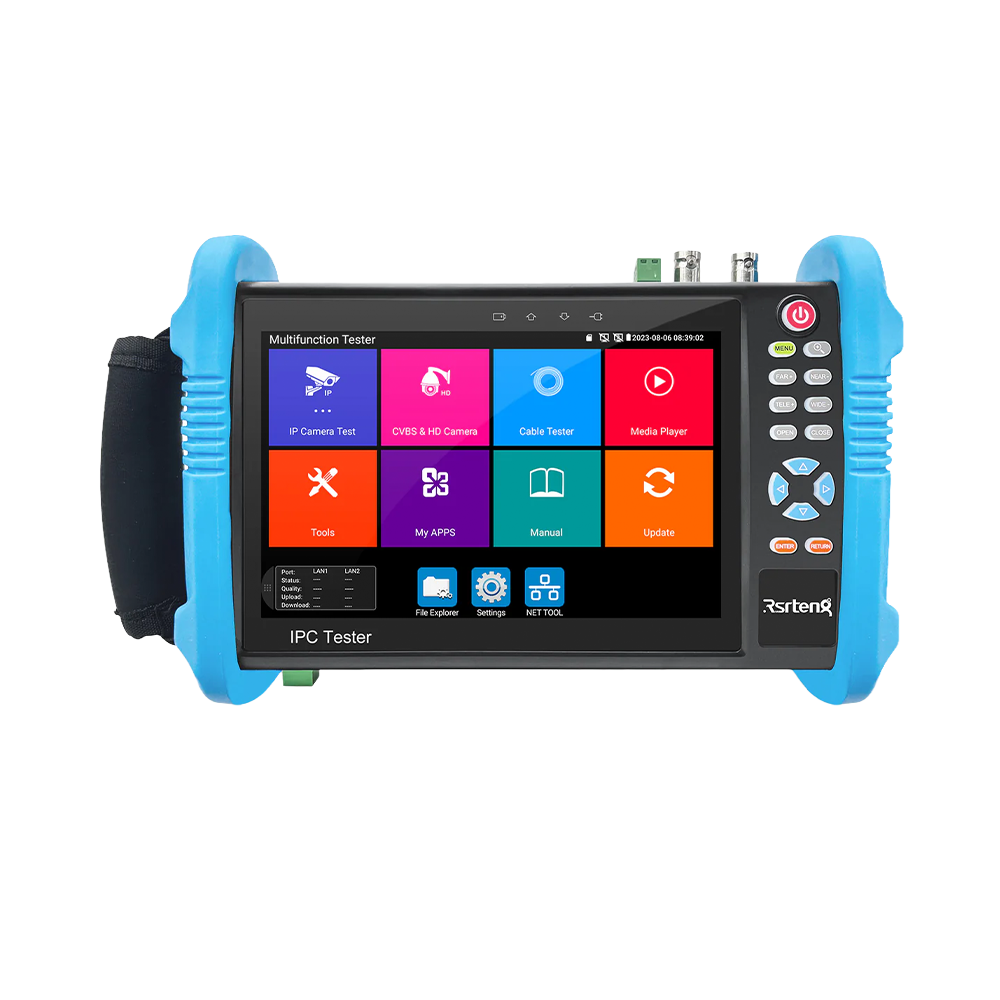

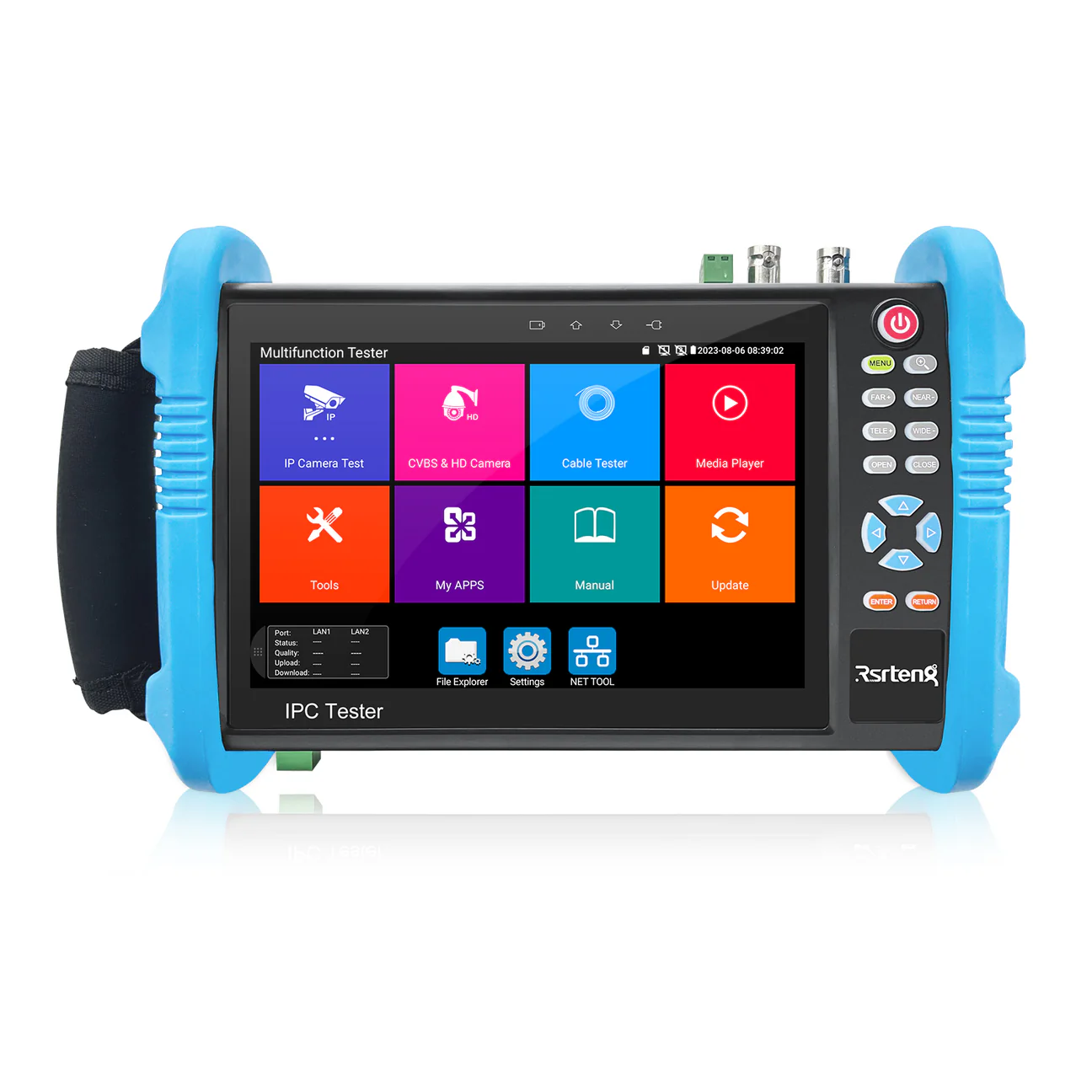

CCTV Tester IPC-9800ADH Pro
368.80 €
Përshkrim
Parameters
| Brand | Rsrteng | ||
| Model | IPC-9800ADH Pro | ||
| CPU/RAM/ROM | 4-core 2.0GHz/1GB(DDR)/8GB(EMMC) | ||
| Operating system | Android 11.0 | ||
| Display | 7 inch IPS touch screen, 1280*800 resolution, Backlit buttons | ||
| CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | ||
| Support CVBS color bar test | |||
| PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
| CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable | |||
| IP camera test Max 8K 32MP |
IP Discovery/ONVIF/IPC test /RTSP play /Client APK | ||
| Rapid Video, Auto view the video, create testing report | |||
| Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters | |||
| Dahua test tool, Dahua camera test, modify the user name, password and IP parameters | |||
| IP& CVBS test | IP& CVBS test at the same time, converter test from analog to digital with dual test window | ||
| Coaxial HD test | 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio | ||
| 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu | |||
| 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu | |||
| Don’t support SDI camera test | |||
| HDMI input | 1 channel HDMI input, support 4K 3840x2160P 30fps | ||
| HDMI output | 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details) | ||
| VGA input | 1 channel VGA input, support 1920x1080P 60fps | ||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||
| Analog Video out | color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | ||
| Power output | USB DC5V/2A power output, as a power bank | ||
| DC12V/3A power output ,supply temporarily power for the camera | |||
| DC24V/2A power output ,supply temporarily power for the speed dome camera | |||
| Standard PoE power output, DC48V, max power 25.5W | |||
| Cable test | Cable tracer*(Optional function)：N/A (This feature requires additional purchase of a cable tracer WT255.) |
||
| UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen | |||
| RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. | |||
| Digital Multimeter (DMM) |
N/A | ||
| Optical power meter (OPM) |
N/A | ||
| Visual fault locator (VFL) |
N/A | ||
| TDR cable test (hardware support) | N/A | ||
| Video level test | N/A | ||

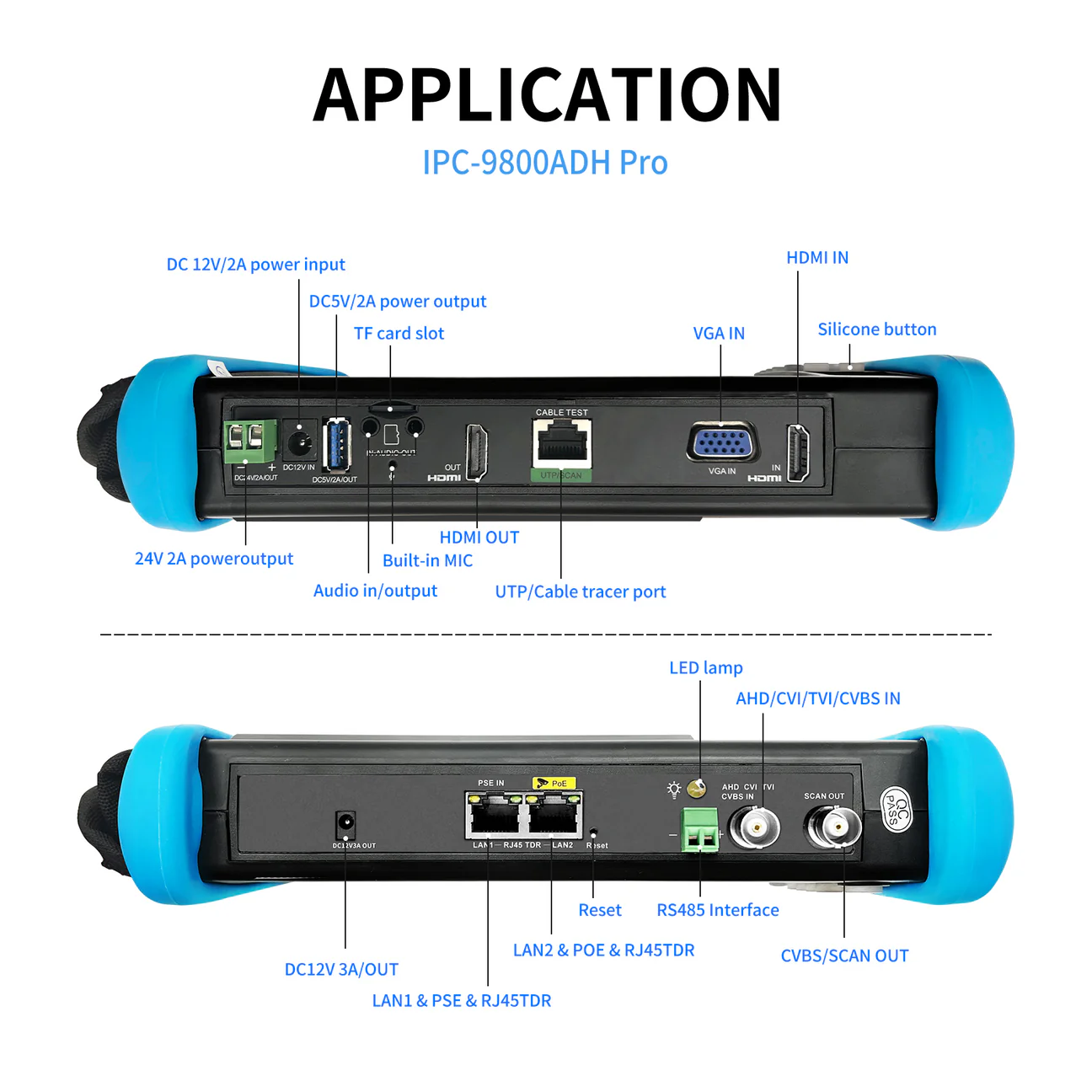

| Network interface | RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive | ||
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | ||
| Wi-Fi | Built in WIFI, 2.4GHz, speeds150Mbps | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
| Power management | View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. | ||
| Drop-down menu | You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface | ||
| TesterPlay | screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) | ||
| Power supply | DC12V/2A | ||
| Battery | Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh | ||
| Rechargeable | After charging 3 to 4hours, normal working time 15 hours | ||
| Operation setting | OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. | ||
| Auto off | 1 to 30(mins) | ||
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) | ||
| Working Humidity | 30% to 90% | ||
| Dimension/Weight | Tester: 240x135x35mm(9.4×5.3×1.4inch) / 965g(2.12lbs) Package: 320x290x100mm(12.6×11.4×3.94) / 2090g(4.61lbs) |
