Highlights
□√ 2.3-inch 132×64 pixel dot-matrix screen
□√ Support audio codec G.722 and Opus, HD audio on speakerphone and handset
□√ Support 6-way Audio Conference
□√ Fast Ethernet – 10/100Mbps Ethernet, integrated PoE
□√ HAC HD voice handset and full duplex hands-free speaker hardware configuration to provide users withanoutstanding audio experience
□√ Two installation methods of desktop stand and wall mountable
□√ Compatible with EHS headset

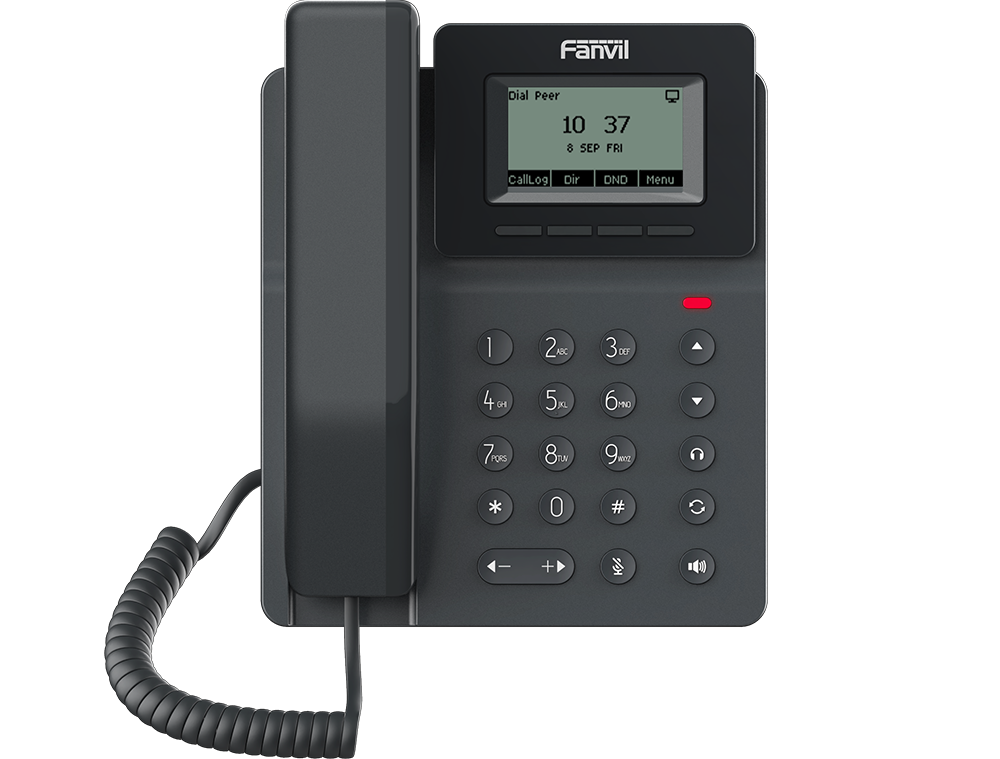

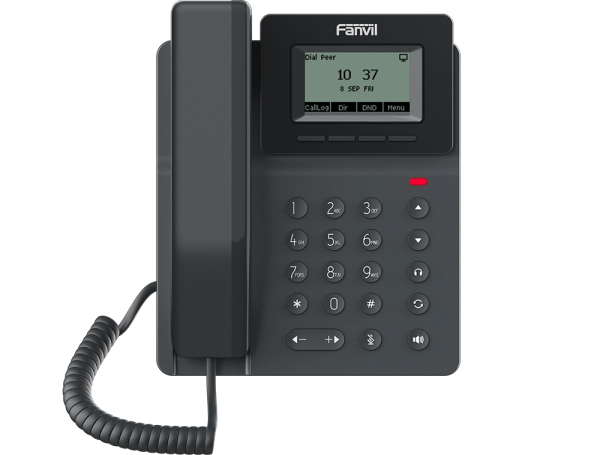

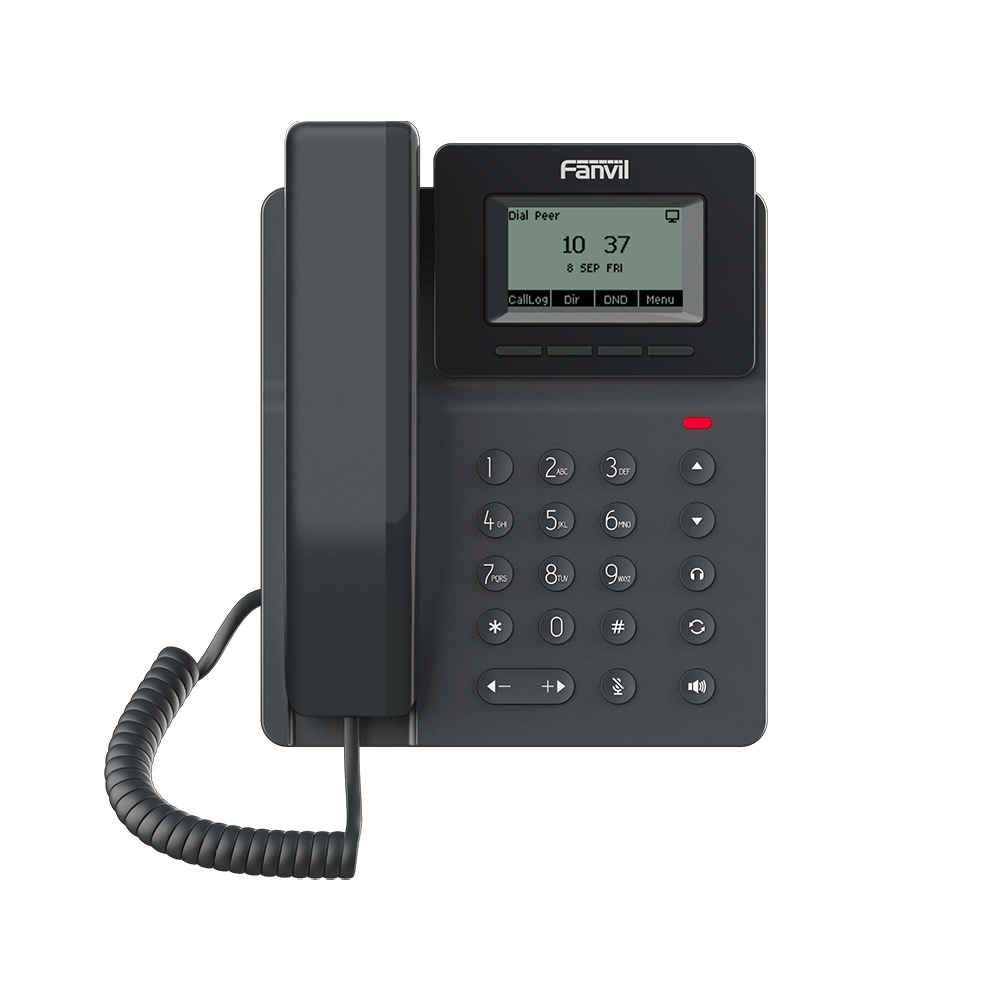

IP Phone V50P
V50P is a stylish, high-performance entry-level IP phone with a 2.3-inch 132×64 pixel dot-matrixscreen,support for 2 SIP lines and 6-way audio conference, support PoE power supply, and HDvoice. It canmeettheapplication scenarios of different enterprises, and provide users with excellent interactionandcomfortableinstant Internet communication experience.
37.40 € 41.14 €
Generic
2.3-inch 132×64 pixel dot-matrix
screen(No backlight)
2 SIP lines HD voice PoE enabled
Handset / hands-free / headset mode Desktop Stand / Wall-mounted
(optional)
Optional external power supply
Handset with Hall-effect Sensor Switch
Phone Functions
Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP)
Call logs (In/out/missed, 1000 entries)
Blocked List/Allowed List
Screen saver Voice Message Waiting Indication
(VMWI)
Programmable Soft keys Network Time Synchronization Support Poly wireless headset (Through
Poly APD-80 EHS Cable)
Support Jabra wireless headset
(Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
XML Browser uaCSTA
Customize Incoming Call Ringtone time Plan (timed reboot/timed
forward/timed upgrade/timed config)
Hidden DTMF
Ring From Headset
Call Functions
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume/Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)/Ban Anonymous call
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on
server)
Redial/Predial
Call Back
Do-Not-Disturb(DND)/Timed DND
Auto-Answering
SIP SMS
Voice Message (On server)
6-way Audio Conference Hot Line Hot Desking
Direct IP call without SIP proxy
Fuzzy Search Call
Action Plan
Dial Plan Intercom
Call Completion/Auto Redial
Primary and Backup SIP Servers Default Ext Line Multicast
Audio
HD Voice: HD handset, HD speaker Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB,
iLBC
Wideband Codec: G.722, Opus Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort
Noise Generation (CNG) / Background
Noise Estimation (BNE) / Noise Reduction
(NR) / Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer DTMF: In-band, Out-of-Band (RFC2833/ SIP
INFO)
VQM voice quality monitoring
Network
Physical: 10/100 Mbps Ethernet, dual
bridged port for PC bypass IP Mode: IPv4/IPv6/IPv4&IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
DNS-SRV (RFC 3263)
Support Redundant Servers Agent
Https Mutual Authentication Protocols
SIP v1 (RFC2543) v2(RFC3261)
UDP/TCP/TLS
RTP/RTCP/SRTP(Optional/Compulsory)
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x 802.1p/Q
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
AES128 & AES256
Deployment &Management Auto-Provisioning via
FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPNP/TR-069
Screenshot
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade Syslog
Network Firewall
Physical Specifications
LCD: 132×64 pixel dot-matrix screen Keypad: 24 keys, including
3 Function keys (Mute, Headset, Redial) 4 Soft-keys 2 Navigation keys 12 Standard Phone Digits keys 2 Volume Control keys, Lower/Increase(Left/Right)
1 Hands-free key
HD Handset (RJ9) x1
Handset with Hall Switch
Standard RJ9 Handset Wire x1 1.5M CAT5.E Ethernet Cable x1 Desk Stand x1
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1 RJ45 Port x2: Network x1, PCx1(BridgedtoNetwork)
Security Slot x1
Power: DC5V/1A or PoE
POE complies with the IEEE802.3af standard
Power adapter:
Input:100-240VAC~50/60Hz Output:5V/1A
Power Consumption(Adapter): 0.9~1.8W Power Consumption(PoE): 1.4~2.5W Working Temperature: 0~45℃ Working Humidity: 10~95% Installation: Desktop Stand
Wall-mounted (Optional)
Color: Dark Grey
Qty/CTN: 10pcs N.W/CTN: 8.25 kg
G.W/CTN: 8.785kg
Device Dimensions: Desktop Stand (40°): 173.00×184.96×169.90 mm Desktop Stand (45°): 173.00×173.93×177.96 mm Wall mountable: 173.00×91.34×215.55mm
Gift Box Dimensions: 250x220x55mm Outer CTN Dimensions: 460x300x270mm(10 PCS)jn
