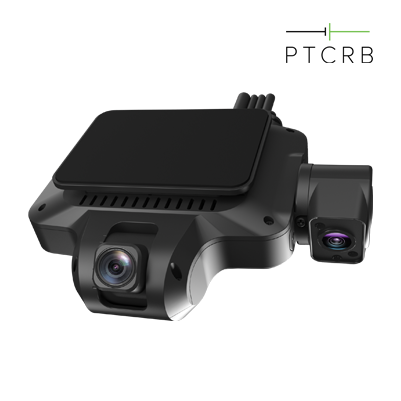

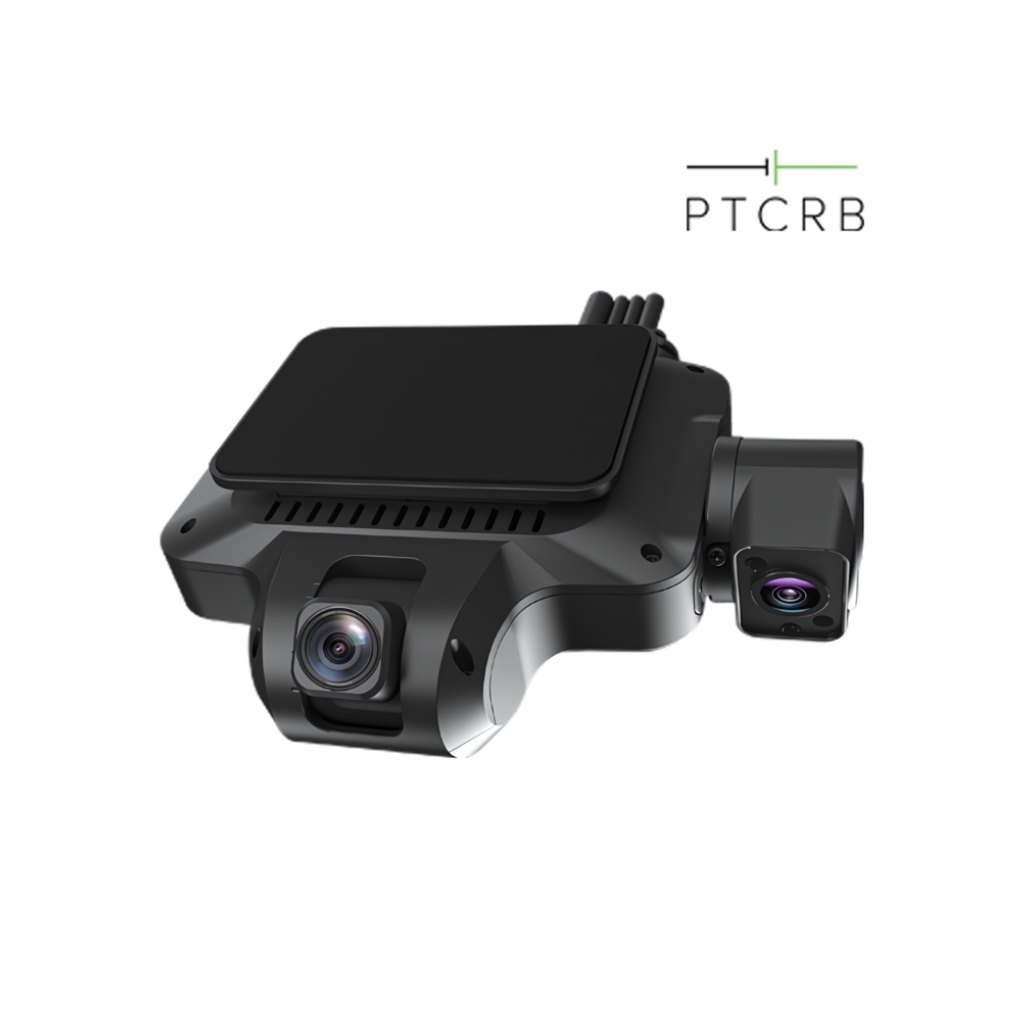

JC450 – Multi-Channel AI DashCam
The JC450 Series is an LTE dashcam system designed specifically for use in commercial vehicles. This feature-rich camera system is capable of recording 4/5 separate channels simultaneously, and provides valuable ADAS and DMS algorithms that actively assist drivers increase awareness and safety on the road by providing real-time, actionable alerts. Video clips triggered by key events or the in-cab SOS button are saved to the cloud for later review or evidentiary support. Other features of this system, including support for peripheral sensors, the ability to connect via WiFi, and expanded on-device storage make the JC450 Series a perfect solution for a variety of applications across multiple industries.
350.73 €
Koha e arritjes së produktit : 12/07/2025 - 14/07/2025
Video Visibility via Up to 5 Channels in Real-time
The JC450 has 1 built-in camera (720P by default or 1080P upon your request) and supports up to 4 remote cameras (optional) to monitor the outside, the cabin, the sides, the rear, or the driver of a vehicle regardless of it being in motion or parking. The main unit can even sound alerts to remind drivers or passengers of any potential risks.

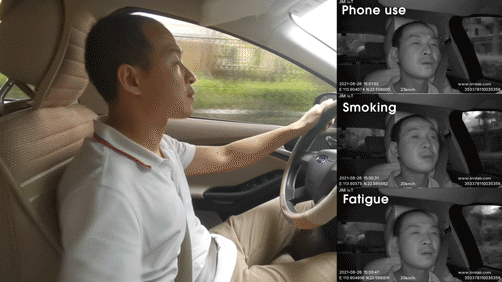

Driver Coaching/Assistance
The DMS camera (optional) can track the driver’s face to monitor their attentiveness and warn them with in-cab alerts if needed.
Critical Video to Cloud
Worry that critical video footage about collisions or other events overwritten by loop recording or be deleted accidentally or on purpose on your device? No worries. These data will remain unaffected by loop recording and will be uploaded to the platform for storage. They can be used as evidentiary support if any dispute arises in the near future.
Extended Storage for More Data
There are 2 microSD slots on the main unit of JC450 camera system, allowing for up to 512 GB on-device storage. This allows you to store much more data than you anticipated and meet long-distance transportation data requirements fully.

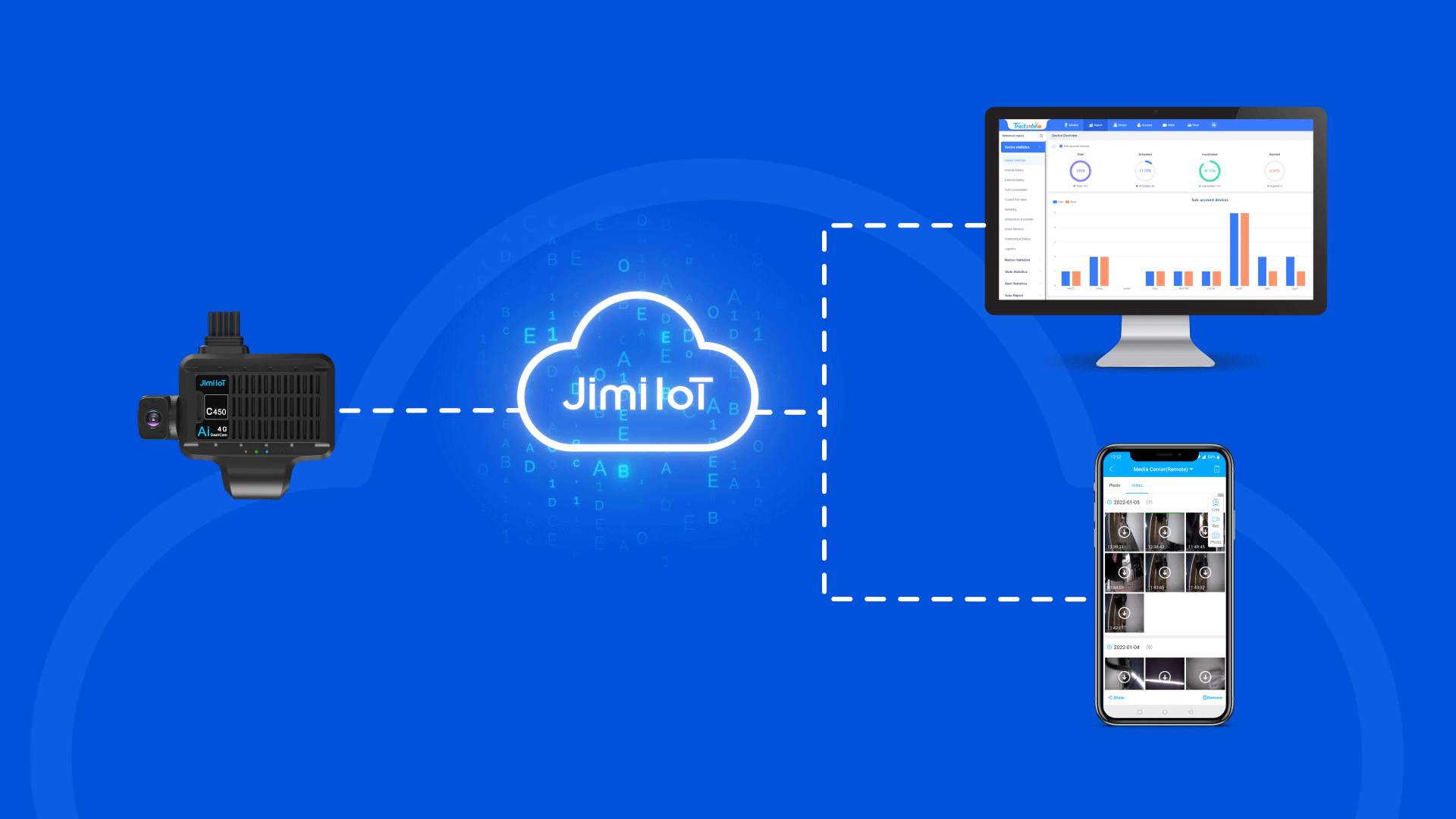

One Platform for All Your Operations
As operators, you can check the locations, surroundings, alerts, and other information about your fleets via our dedicated platform, Tracksolid Pro, in real-time from anywhere. Note: You can use your own platform as well. We will assist you through the interoperation process.
| Specification | |
| Network | |
| Standard | 4G LTE Cat.4 |
| WiFi | 2.4GHz, Support AP Mode/STA Mode/WiFi Direct |
| Bluetooth | BLE 4.0 |
| Band | Eurasian Version FDD-LTE: B1/B3/B7/B8/B20/B28A TDD-LTE: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
| Northern American Version FDD-LTE: B2/B4/B5/B12/B13/B14/B66 WCDMA: B2/B4/B5 |
|
| Latin American Version FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD-LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
|
| Camera | |
| Front Camera (Main) | 1920×1080/25FPS/F2.0/Full color/80° (HFoV) |
| Sub Camera (Optional) | CI02: 1280×720/15FPS/F2.5/Full color in daytime & monochrome in dim light/135° (HFoV) |
| Peripheral Camera (Optional ) | CI01: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV) |
| CI03: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV) | |
| CD02: 1280×720/15FPS/F2.0/Monochrome/56° (HFoV) | |
| CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV) | |
| Video Format | .ts |
| Configuration | |
| GNSS | GPS/BDS |
| Sensor | 3-axis |
| Microphone | Support |
| Speaker | Support |
| Interface | Type-C USB*1, SOS*1, RS232*1, TTL*1, Relay*1, Digital Input*2, CVBS-OUT*1 |
| Memory Support | TF Card (Up to 256GB*2) |
| SIM Card Type | Nano |
| LED Indication | Red (Power), Blue (Cellular), Green (GNSS) |
| Others | |
| Power Supply | Power cable: B+/ACC/GND |
| Operating Voltage | DC 9–30V |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –30°C to +85°C |
| Device Weight | 374g |
| Device Dimension | 114*113*33mm |
| Certifications | CE/FCC/PTCRB/RoHS |
