GPS Tracker

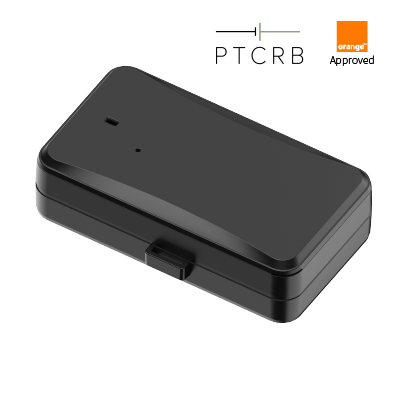

LL01 – LTE Cat M1 & NB2 Asset GNSS Tracker
The JM-LL01 is a Cat M1/NB-IoT asset tracker with ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. The JM-LL01’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.
101.03 €
Koha e arritjes së produktit : 21/06/2025 - 23/06/2025
GPS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
LTE Cat M1/NB2 & GSM
Communications over IoT-specific LTE networks, with reliable 2G GSM fallback.
10,000mAh Rechargeable Battery
High-capacity battery is ideal for long standby applications, and is easily recharged for re-deployment.
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
IP65 Dust and Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Bluetooth Configuration
Fast and simple device configuration via app for iOS.
Strong Magnetic Base
Fast and easy installation via strong magnetic mount or eyelets.
Multiple Working Modes
Configurable working modes according to your actual demands.
| Positioning & Location | |
| Technology | GPS, BDS, LBS |
| Accuracy | ＜2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤40sec |
| Cellular | |
| Technology | LTE Cat M1 & NB2, GSM |
| Frequency | LTE Cat M1 & NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B66 GSM: 850/900/1800/1900 MHz |
| Power | |
| Battery | 10,000mAh/3.7V industrial-grade Li-Polymer battery (rechargeable) |
| Working modes | Mode 0: Standby mode Mode 1: Intelligent mode Mode 2: Power-saving mode |
| Battery life | 6 days to 3 years |
| Interface | |
| LED indication | Cellular (Red), Battery (Blue) |
| SIM | Standard-SIM |
| Memory capacity | 1000 GPS data entries |
| Tamper proof | Light sensor |
| USB | USB：Micro USB/USB Type-C |
| GNSS antenna | Internal |
| Bluetooth antenna | Internal |
| Feature | |
| Voice monitoring range | N/A |
| Sensors | 3-Axis accelerometer, Light sensor |
| Scenarios | Low battery alert, Tamper alert, Vibrating alert, Over-speed alert, Cover removal alert, Installation alert, Geo-fence entry & exit alert |
| Mount method | Magnet or straps |
| Bluetooth | BLE 4.2 |
| RFID | N/A |
| Configuration support | APP, Tracksolid Pro, PC Tools, SMS |
| Certification | CE, FCC, PTCRB, RoHS, AT&T, TELEC, Orange, WEEE |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5% to 95%, non-condensing |
| IP rating | IP65 |
| Physical specification | |
| Dimensions | 109.0 x 61.0 x 30.5mm |
| Weight | 297g |
