LL705 – 4G Wireless Asset Tracker
89.48 €
Përshkrim

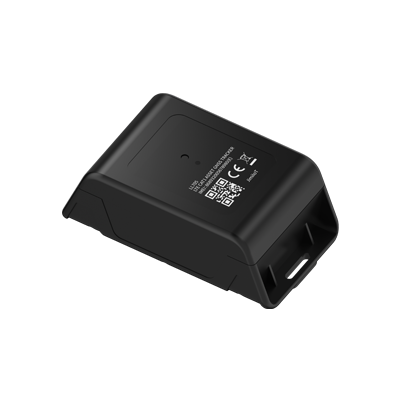

The LL705 is a 4G wireless GPS tracker, engineered specifically for monitoring high-value assets such as construction and mining equipment. Its powerful 18,000mAh internal battery enables the device to operate up to a decade, given the most energy-efficient settings. This makes it ideal for scenarios needing extended service life and infrequent location updates. The LL705 can accurately identify the location of your assets through GPS+Beidou satellite systems, cell towers, or Bluetooth signals. Additionally, it provides installation flexibility, allowing customization with mounting accessories of your choice.
LTE Cat 1 Network
Stable communication via IoT-specific 4G LTE networks, with 2G fallback
GPS & BDS & LBS & BLE Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
18,000mAh Battery
High-capacity battery supports the device to operate as long as 10 years.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Tamper Alert
Receive a tamper alert when the light sensor of the device detects any change in ambient light, which can be disabled via a command.
Low Battery Alert
Users’ll be alerted when the remaining battery power of the device falls below 20%.
Flexible Installation
The device can be installed via the standard configuration – screws or via an optional configuration – the inbuilt magnet, 3M double-sided adhesive tape, or cable ties.
Multiple Working Modes
Configurable working modes according to your actual demands.
Specification
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Frequency | L1 |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM |
| Frequency | LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B34/B40/B41 GSM: 850/900/1800/1900MHz |
| Power | |
| Battery | 18,000mAh Li-SOCl2 battery string |
| Working modes | Regular GPS mode
Tracking mode Phase-based mode Alarm-based mode |
| Standby time | 10 years (one update per day) |
| Interface | |
| LED indication | Power (yellow) |
| SIM | Nano-SIM |
| Physical specification | |
| Dimensions | 120.0 x 68.0 x 43.5mm |
| Weight | 289.0g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP67 |
| Feature | |
| Sensors | Light sensor, Accelerometer |
| Scenarios | Low battery alert, Tamper alert, Vibrating alert (optional) |
| FOTA | Yes |
