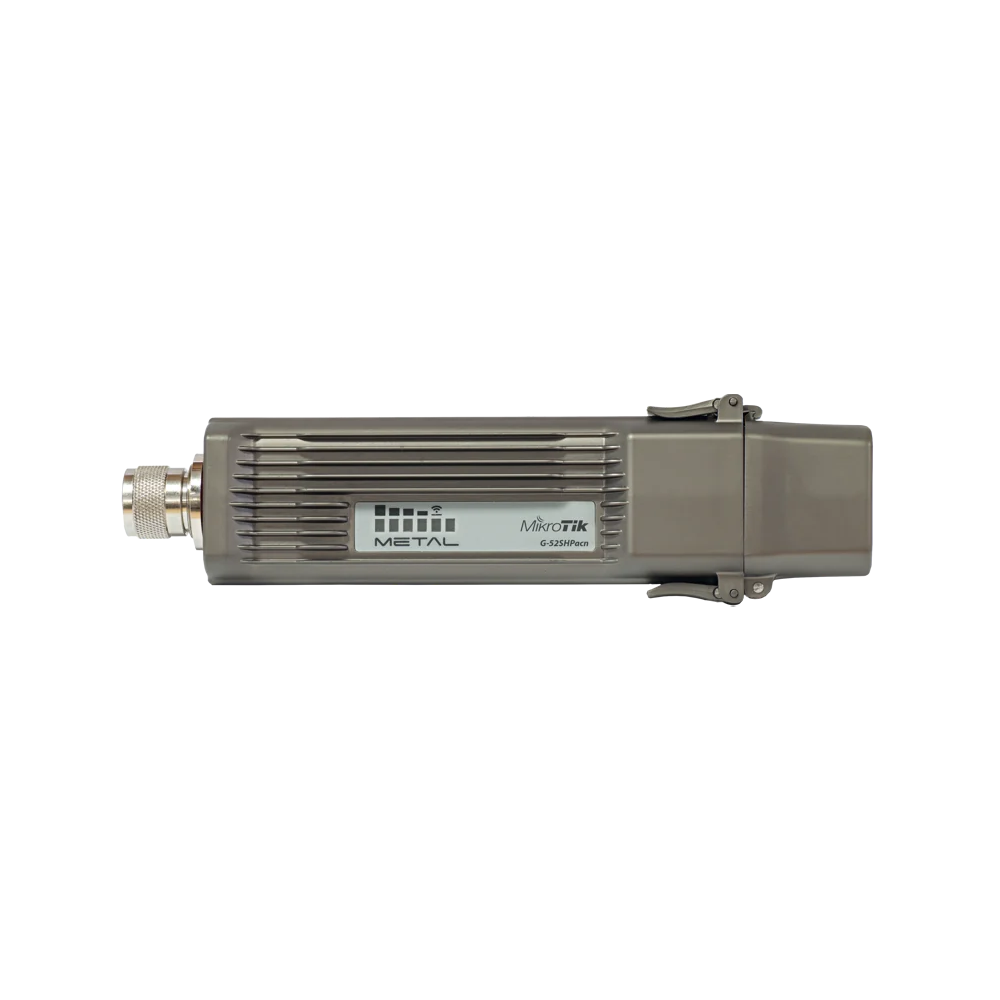

Metal 52 ac
2.4/5GHz software selectable AP/Backbone/CPE with AC support, high TX power, N-male connector, Omni antenna included
122.84 €
Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 a/n/ac for 5GHz).
| Details | |
|---|---|
| Product code | RBMetalG-52SHPacn |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 215x60x38mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/n/ac, 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -93 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -93 |
| MCS7 | 26 | -74 |
| MCS9 | 22 | -69 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 31 | -97 |
| 11MBit/s | 31 | -91 |
| 6MBit/s | 31 | -93 |
| 54MBit/s | 28 | -77 |
| MCS0 | 31 | -93 |
| MCS7 | 27 | -72 |
