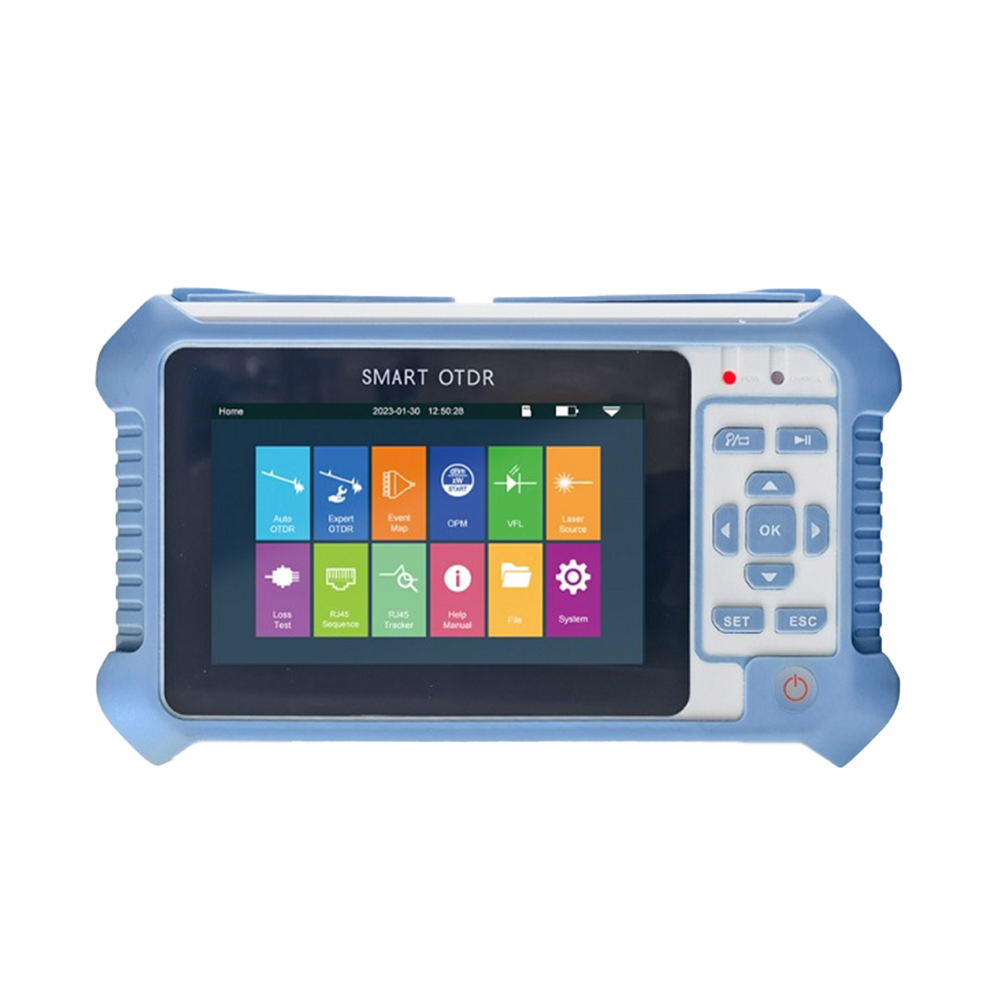

Features
1. Two wavelength 1310/1550nm or single wavelength 1310/1550/1610/1625nm
2. Measurement distance: 80km
3. Capacitive touching screen, clear, sensitive touch and quick response, can operate by both key and touching screen.
4. Test record is saved as SOR format.
5. Standard function: OTDR, Event Map, Optical Power Meter , Optical Light Source, VFL, Optical Loss Test, RJ45 Sequence,Flash Light
Optional function: RJ45 Tracker
6. Keyboard input, can edit and save file name and line number.
7. Support user upgrading.
8. With USB and TF card data interface, easy to export curve data.
9. Fast startup, only 2 seconds to test
2. Measurement distance: 80km
3. Capacitive touching screen, clear, sensitive touch and quick response, can operate by both key and touching screen.
4. Test record is saved as SOR format.
5. Standard function: OTDR, Event Map, Optical Power Meter , Optical Light Source, VFL, Optical Loss Test, RJ45 Sequence,Flash Light
Optional function: RJ45 Tracker
6. Keyboard input, can edit and save file name and line number.
7. Support user upgrading.
8. With USB and TF card data interface, easy to export curve data.
9. Fast startup, only 2 seconds to test
Specifications
| OTDR | ||||||
| Wavelength(nm) | 1310/1550nm | 1310nm | 1550nm | 1610nm | 1625nm | 1650nm |
| Dynamic Range(dB) | 24/22dB | 24dB | 22dB | 22dB | 22dB | 22dB |
| Type of Fiber | 9/125um SM | |||||
| Type of Connectors | FC/PC/; SC/PC (FC/APC SC/APC–Optional) | |||||
| Peak Value of laser | >=30mW | |||||
| Unit | Meter/ inch/ mile | |||||
| Dead Zone of Reflection | 2m | |||||
| Dead Zone of attenuation Event | 12m | |||||
| Accuracy Distance (Reflection Event) |
About ±(1m+2 *10(-4)* distance) | |||||
| Storage of records | >100,000 groups | |||||
| Visual Fault locator（VFL） | ||||||
| Wavelength (nm) | 650nm | |||||
| Output power | >=10mW | |||||
| Mode | CW，1Hz，2Hz | |||||
| Fiber type | SM/MM | |||||
| Optical Power Meter | ||||||
| Measurement range dBm | -70～+10 dBm | -50～+26 dBm | ||||
| Wavelength range（nm） | 800～1650 | |||||
| Calibrated wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625/1650 | |||||
| Detector | InGaAs | |||||
| Accuracy | <±3% （-10dBm、22℃） | |||||
| Resolution | Linearity：0.1%，Non-linearity：0.01dBm | |||||
| Connector | 2.5mm Universal interface | |||||
| Optical Light Source | ||||||
| Emitter | FP-LD | |||||
| wavelength (nm) | Same with OTDR Wavelength | |||||
| Connector | FC/PC（SC/ST as optional） | |||||
| Output power | ≥-5dBm | |||||
| Output stability(dBm) | ±0.04@20℃@15min | |||||
| Modulation | CW/270Hz/1KHz/2KHz | |||||
| Fiber type | SM | |||||
| Optic Loss | ||||||
| Connector | FC/ SC | |||||
| Test Range | 0-30dB | |||||
| Accuracy | 10% | |||||
| Others | ||||||
| LCD | 4.3 inch,800*480pixels, IPS Capacitive Touch Screen | |||||
| Battery | Lithium-ion battery, >5000 tests | |||||
| Temperature | Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C | |||||
| Humidity | 0～85%(Non-condensing) | |||||
| Dimensions（mm） | 185×105×50 | |||||
| Weight(g) | 530 | |||||
