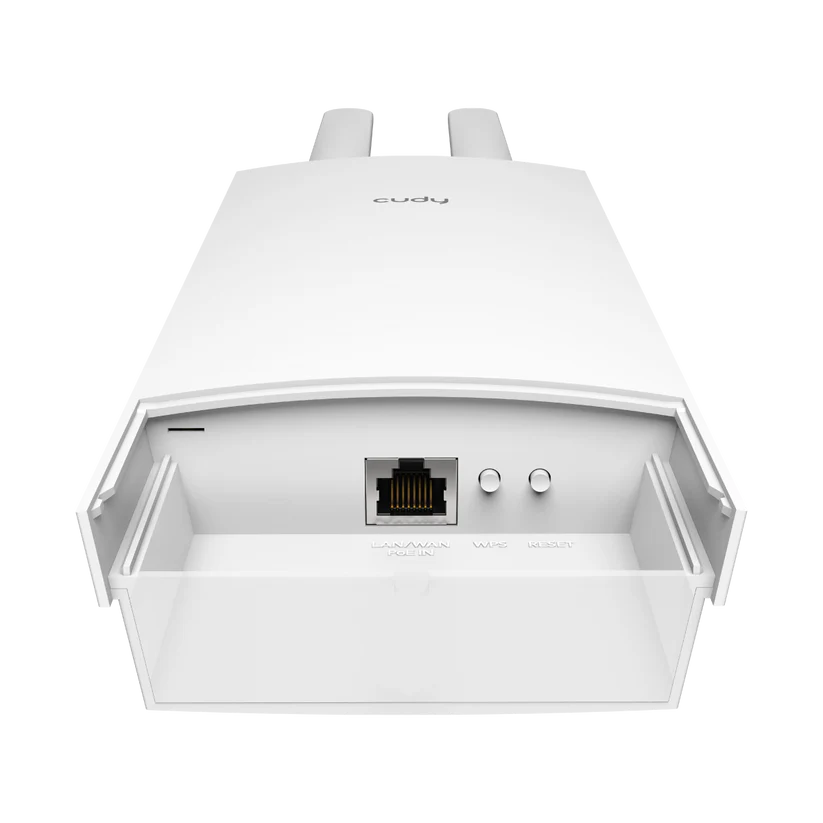

Name: Outdoor AC1200 Wi-Fi Range Extender ( RE1200 Outdoor )
SKU: 9400
Availability: InStock

Outdoor AC1200 Wi-Fi Range Extender ( RE1200 Outdoor )

A pole/wall-mounted range extender with IP65 casing and PoE features, featuring Access Point and Range Extender modes, and Cudy Mesh features. It requires a router to work as a gateway in front of it.

DATASHEET

IP65, -40~65°C (-40~149°F), 4kV Surge
24V Passive PoE
1× Fast Ethernet Port
30 Connected Devices
Cudy Mesh Satellite
Multi-Band Simultaneous Backhaul
Ethernet Backhaul

Model Version	RE1200 Outdoor 1.0
CPU	Chipset	MT7628DA+MT7613B
	CPU Details	580 MHZ Single-Core, MIPS24KEC
Memory/Stroage	Flash/ROM	8 MB (64 Mbit ) NOR
	DDR/RAM	64 MB (512 Mbit) DDR3
Wireless	5 GHz Wi-Fi Speed	867 Mbps
	Wi-Fi Bands	EU , US
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Detachable
	2.4 GHz Antenna Gain Max	4.6 dBi
	5 GHz Anntenna Gain Max	4.4 dBi
	Detachable Wi-Fi Antennas Connector	RP-SMA Female
	Range Performance	Max: 170 m (558 ft) Park: 150 (492 ft) Street: 50 (164 ft) Woods: 30 (98 ft)
Interfaces	10/100 Mbps RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	Power Internet LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi
	Physical Buttons	WPS Button Reset Button
	Power Input	PoE via Ethernet Port
Power	Power Methods	Passive PoE
	Passive PoE	24 V
	AC	110V ~ 220V
	Max Power Consumption (W)	12W
	Idle Power Consumption (W)	2.5W
Reliability	Lightning/Surge Protection	4 kV Lightning/Surge Protection
	ESD Air Protection	4 kV Contact ESD Protection, 8 kV Air ESD Protection
	Environment	Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Wireless	Wi-Fi Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz 5 GHz)
Reliability	Grounding Methods	Three-Prong Plug
Mechanical	Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
	Installation	Wall-Mounting Pole-Mounting
	Casing Material	Plastic
	Dimension	Device Body: 240×100×53.7 mm 9.45×3.94×2.11 inches Each Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches
	Product Weight	EU: 420 g (14.82 oz.)
Power	Basic Power Saving	0
Package Content	Main Product Detachable Antennas PoE Adapter Power Cord Mounting Kit Ethernet Cable Installation Guide
