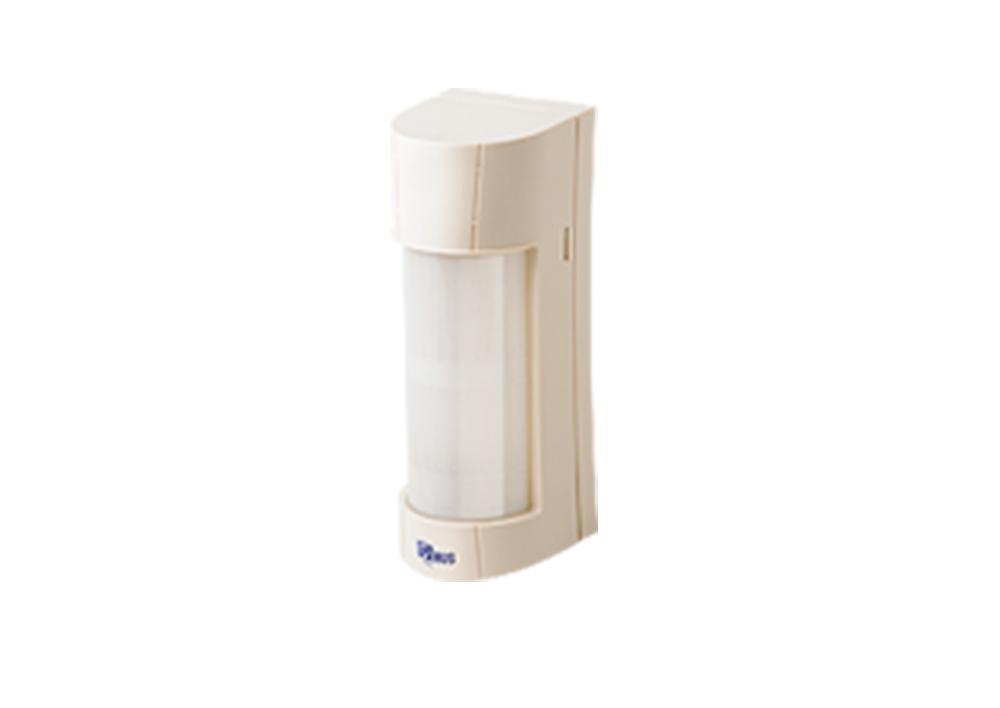

Spectrum DT WS AM 4 Bidirect
Wireless universal outdoor double technology detector with antimasking
– Detection through double PIR and Microwave 10.525 GHz
– Detection range from 3 to 12 meters
– Antimasking with active IR (left + right)
– Universal compatible with all the third part WL transmitter
– Digital temperature compensation
– Detection angle up to 100°
– Orientation horizontal plane 180°
– Installation height: 1,2 meters with standard lens
– Light filter
– PET IMMUNITY
– Power consumption in stand-by 15 μA
– Power consumption in alarm:9 mA
– Alarm output/nc
– Tamper output c/nc
– Walk test with led and buzzer activation
– Lithium battery: 3,6 Vdc 2,2 Ah (included)
– Battery life: 2 years with energy saving function enabled
– Dimensions (D x W x H): 68,3 x 75,4 x 189,4 mm
Protection class: IP 55
