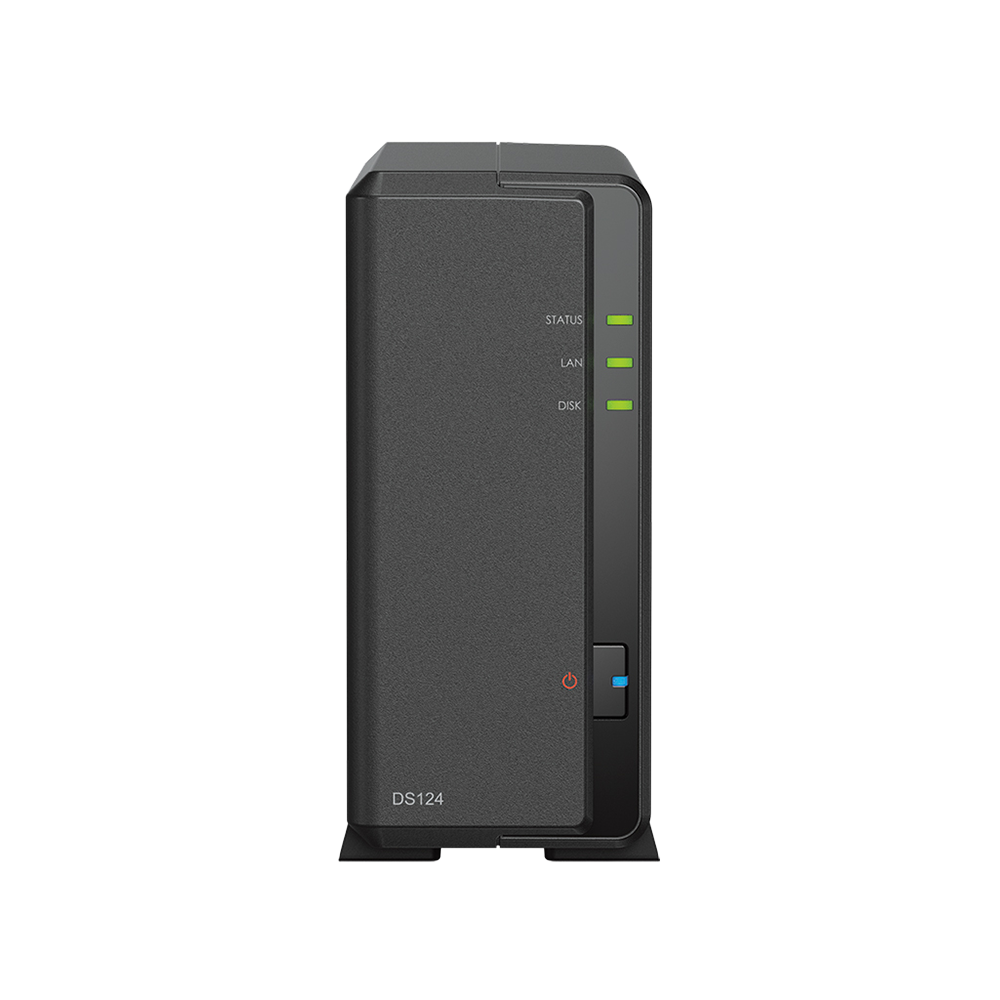

Synology DiskStation DS124 1-Bay NAS 1
186.00 €
DS124
Hardware Specifications
| Category | Specification |
|---|---|
| CPU Model | Realtek RTD1619B |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 1.7 GHz |
| Hardware Encryption Engine | Yes |
| System Memory | 1 GB DDR4 non-ECC |
| Memory Notes | Synology may replace modules with same/higher frequency depending on lifecycle; all replacements tested for compatibility and reliability. |
| Drive Bays | 1 |
| Supported Drive Types | 3.5" SATA HDD, 2.5" SATA SSD (requires 2.5" Disk Holder) |
| Hot-Swappable Drives | No |
| LAN Port | 1 × RJ-45 1GbE |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Network Notes | 1GbE port MTU limited to 1500 bytes |
| Dimensions (H × W × D) | 166 mm × 71 mm × 224 mm |
| Weight | 0.7 kg |
| System Fan | 60 mm × 60 mm × 1 |
| Fan Modes | Full-Speed, Cool, Quiet, Low-Power |
| Front LED Brightness Control | Yes |
| Power Recovery | Supported |
| Noise Level | 19.0 dB(A) |
| Scheduled Power On/Off | Yes |
| Wake on LAN / WAN | Supported |
| Power Supply | 36-Watt Adapter |
| AC Input Voltage | 100–240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption (Access) | 10.69 W |
| Power Consumption (HDD Hibernation) | 3.44 W |
| Thermal Output (Access) | 36.50 BTU/hr |
| Thermal Output (Hibernation) | 11.75 BTU/hr |
| Noise Testing Notes | Tested fully loaded with Synology SATA HDDs; 1m microphone distance; controlled temperature and humidity environment. |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –20°C to 60°C |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS |
| Warranty | 2-year hardware warranty (extendable to 4 years with Extended Warranty Plus) |
| Warranty Notes | Warranty starts from purchase date; Extended Warranty Plus available only in EU & North America. |
| Environmental Compliance | RoHS Compliant |
| Packaging Content | Main Unit, Accessory Pack, AC Power Adapter, RJ-45 LAN Cable, Quick Installation Guide |
| Optional Accessories | Plus Series 3.5" SATA HDD (HAT3300 Series) |
Software Specifications
| Category | Specification |
|---|---|
| Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 1 |
| SSD TRIM | Supported |
| Supported RAID Types | Basic |
| Storage Notes | Actual max storage pool/volume size depends on drive capacity, bay count, and RAID configuration. Usable volume capacity is always lower due to filesystem and metadata overhead. |
| Internal File Systems | Btrfs, ext4 |
| External File Systems | Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| File Protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Maximum SMB Connections (FSCT) | 5 |
| Windows ACL Support | Yes |
| NFS Kerberos Authentication | Supported |
| SMB Notes | Tested fully populated with SATA HDDs; FSCT workload: HomeFolder; test duration: 600s; Windows Server 2022 domain/FSCT; 8 × Windows 10 clients; directory leasing enabled. |
| Maximum Local User Accounts | 256 |
| Maximum Local Groups | 64 |
| Maximum Shared Folders | 64 |
| Maximum Shared Folder Sync Tasks | 2 |
| Hyper Backup | Folder & Package Backup |
| Syslog Events per Second | 400 |
| Supported Protocols | SMB1/2/3, NFSv3/v4/v4.1, Kerberized NFS, iSCSI, HTTP/HTTPS, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Chrome, Firefox, Edge, Safari |
| Supported Languages | EN, DE, FR, IT, ES, DA, NO, SV, NL, RU, PL, HU, PT-BR, PT-PT, TR, CS, TH, JA, KO, ZH-TW, ZH-CN |
| Download Station – Max Concurrent Tasks | 80 |
| SAN Manager – Max iSCSI Targets | 2 |
| SAN Manager – Max LUNs | 4 |
| LUN Clone/Snapshot, Windows ODX | Supported |
| Media Server (DLNA) | Supported |
| Synology Photos – Facial Recognition | Supported |
| Snapshot Replication – Max Snapshots per Shared Folder | 128 |
| Snapshot Replication – Max Snapshots per LUN | 32 |
| Snapshot Replication – Max Snapshots per System | 1,024 |
| Snapshot Replication – Max Replication Tasks (Folders) | 16 |
| Snapshot Replication – Max Replication Tasks (LUNs) | 8 |
| Snapshot Replication – Max Tasks per System | 16 |
| Surveillance Station – Default Licenses | 2 |
| Surveillance (H.264) | 1080p: 12 ch / 300 FPS • 3MP: 12 ch / 200 FPS • 5MP: 12 ch / 140 FPS • 4K: 9 ch / 90 FPS |
| Surveillance (H.265) | 1080p: 12 ch / 360 FPS • 3MP: 12 ch / 240 FPS • 5MP: 12 ch / 200 FPS • 4K: 12 ch / 140 FPS |
| Surveillance Notes | Tested fully populated; performance varies by configuration and workload; simultaneous viewing limit is 2× max camera count per codec/resolution. |
| Synology Drive – Max Users | 5 |
| Synology Drive – Max Hosted Files | 100,000 |
| Synology Drive Notes | Based on 20% active/80% idle workload; SSD volume used for tests; exceeding limits increases latency but does not block operations. |
| Synology Office – Max Users | 5 |
| Office Notes | Based on 20% active workload; tested with single SSD volume; client PC for tests: i3-3220 / 8GB RAM. |
| VPN Server – Max Connections | 2 |
