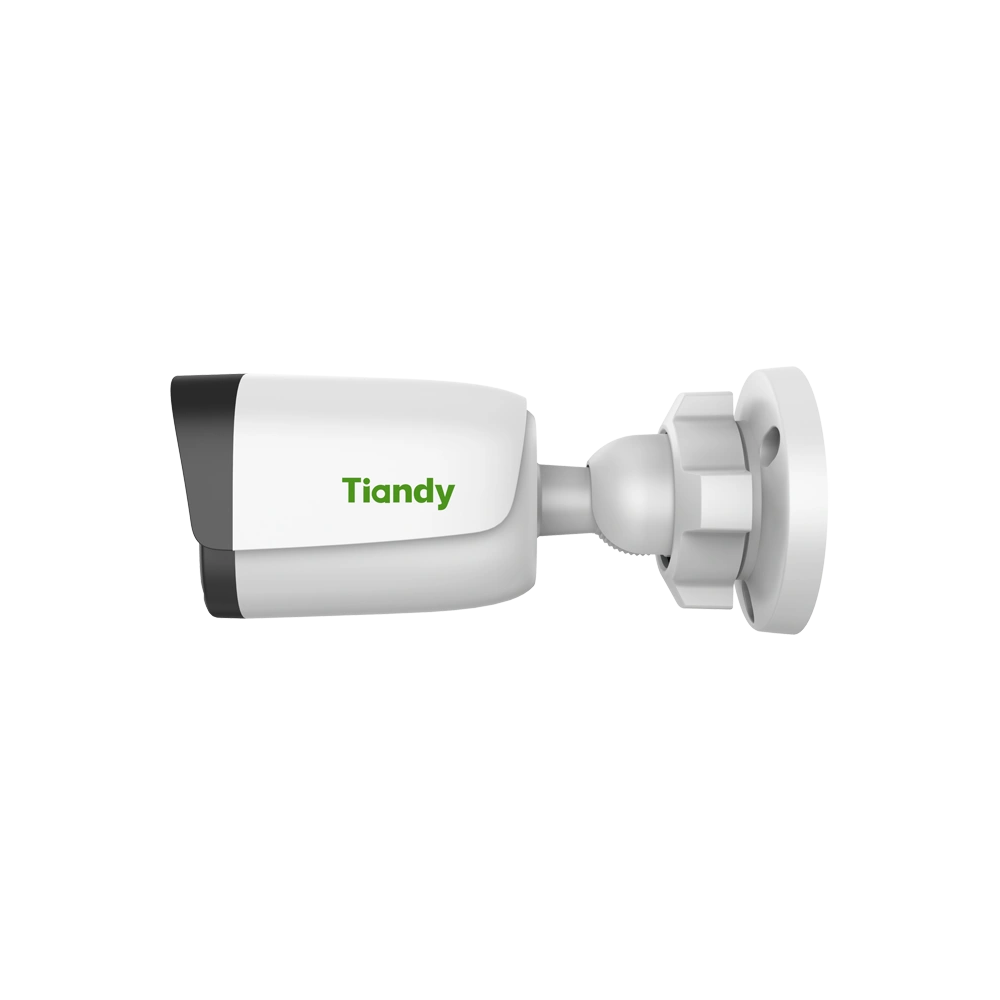

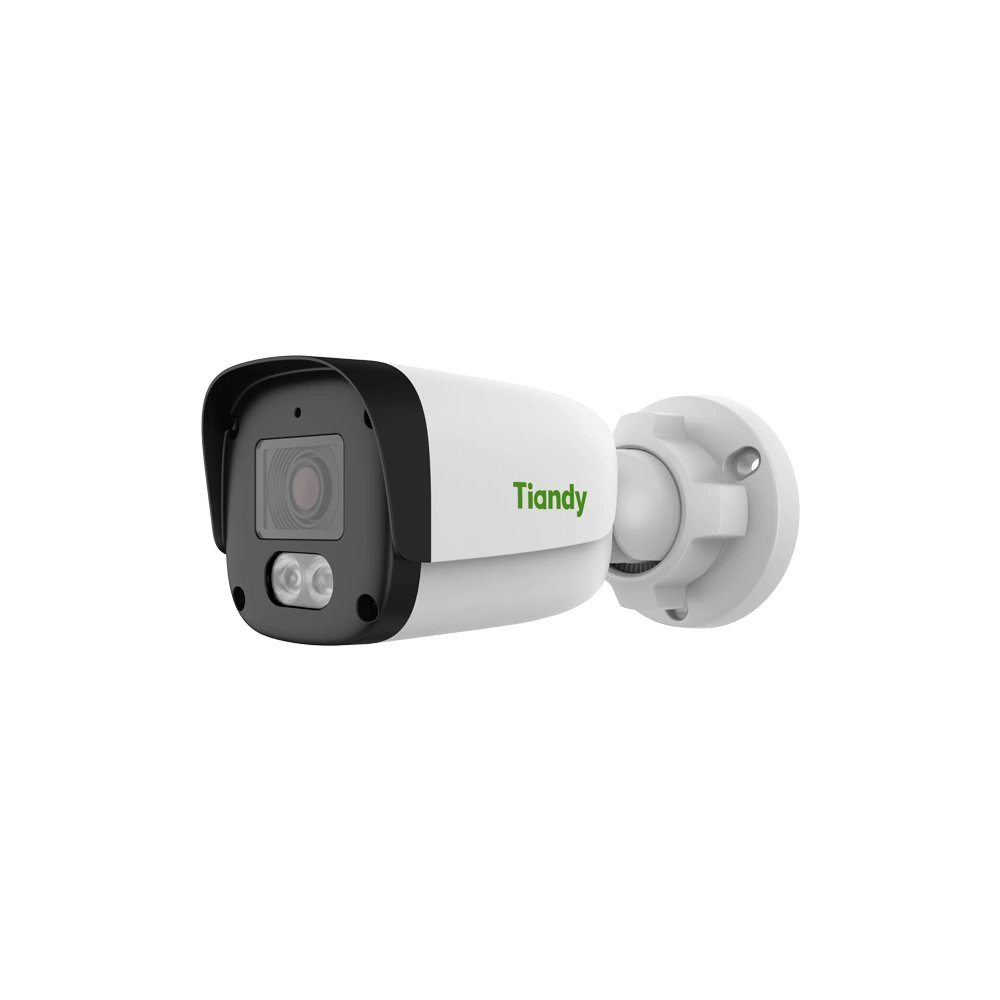

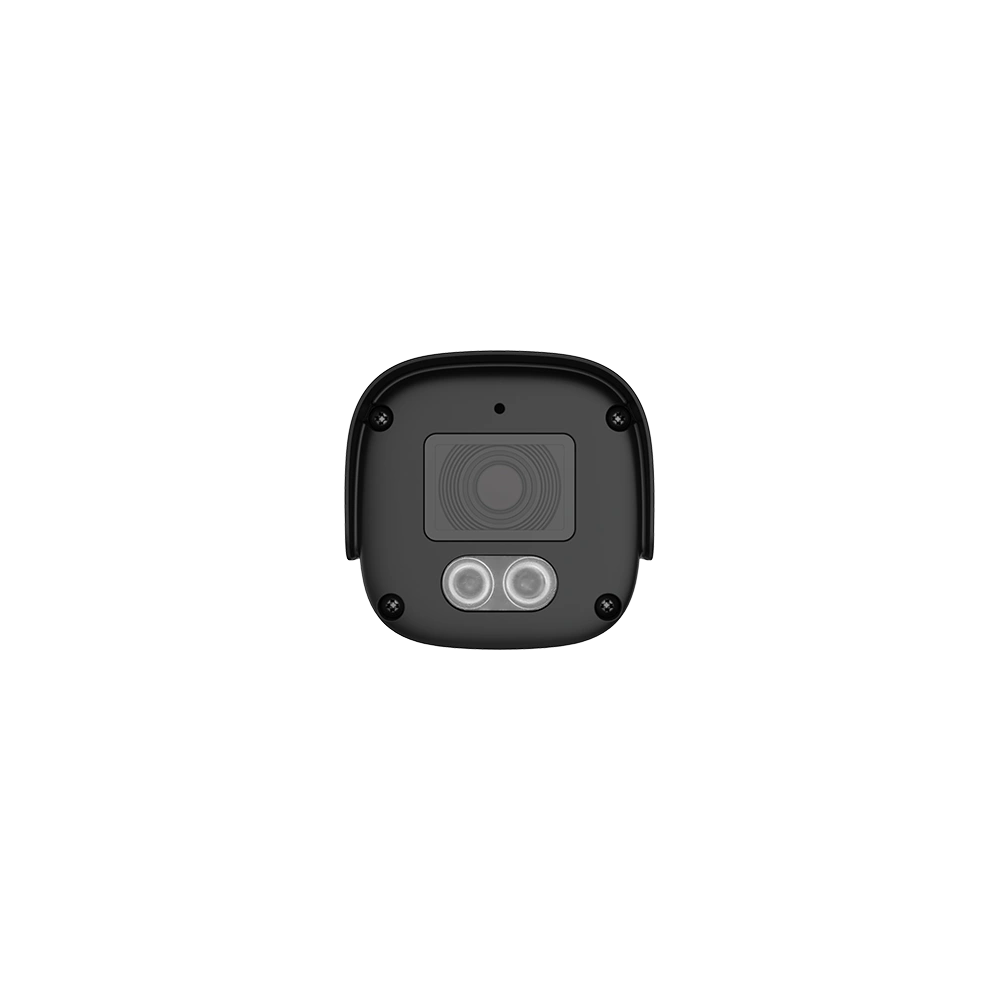

6MP Bullet Camera (TC-C36QN 2ENA-4)
Përshkrim
Kjo kamerë IP 6MP me WDR të vërtetë ofron imazh shumë të detajuar edhe në kushte të vështira ndriçimi. Me detektim inteligjent të njerëzve dhe automjeteve, IR deri në 30m, dritë të bardhë deri në 15m dhe audio të integruar, siguron mbikëqyrje të besueshme 24/7. Falë kompresimit S+265, PoE, dhe mbrojtjes IP67, është ideale për instalime profesionale në ambiente të brendshme dhe të jashtme.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.02 Lux @ (F1.6, AGC ON) / B&W: 0 Lux with IR |
| Shutter Time | 1s – 1/100000s |
| Day & Night | IR-cut filter with Auto Switch (ICR) |
| Smart IR | Yes |
| WDR | True WDR |
| Signal-to-Noise Ratio | >52 dB |
| Angle Adjustment | Pan: 0–360° / Tilt: 0–80° / Rotate: 0–360° |
| Lens Type | Fixed focal lens |
| Focal Length | 4 mm |
| Lens Mount | M12 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 95.1° / V: 49.2° / D: 111.1° |
| DORI Distance | Detect: 80 m / Observe: 31.8 m / Recognize: 16 m / Identify: 8 m |
| IR LEDs | 2 |
| IR Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| White LEDs | 2 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32 kbps – 6 Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8 kHz |
| Maximum Resolution | 6 MP (3200 × 1800 @ 30 fps) |
| Main Stream | PAL: 25 fps / NTSC: 30 fps (up to 3200 × 1800) |
| Sub Stream | PAL: 25 fps / NTSC: 30 fps |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Presets |
| OSD | Up to 96×96, Lattice |
| Privacy Mask | 4 areas |
| Defog | Yes |
| General Alarm | Smart Alarm (Human & Vehicle Detection) |
| Exception Alarm | IP Address Conflict |
| Linkage Method | Trigger Capture |
| Network Protocols | RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast |
| System Compatibility | ONVIF (Profile S/T), SDK, CGI, Milestone, P2P |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web Browser | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Network Interface | 1× RJ-45 (10/100 Base-T) |
| Built-in Microphone | Yes |
| Web Client Language | 12 languages |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH |
| Storage Temperature | -30°C ~ 60°C |
| Storage Humidity | 10% ~ 95% RH |
| Power Supply | PoE IEEE 802.3af |
| Max Power Consumption | 5 W |
| Protection | Surge 4000V, ESD 6000V, IP67 |
| Dimensions | 164 × 73 × 73 mm |
| Package Dimensions | 180 × 90 × 95 mm |
| Gross Weight | 0.3 kg |
