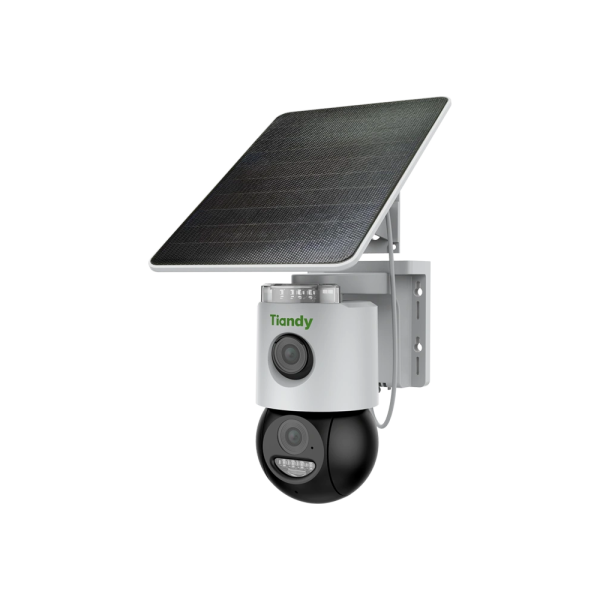

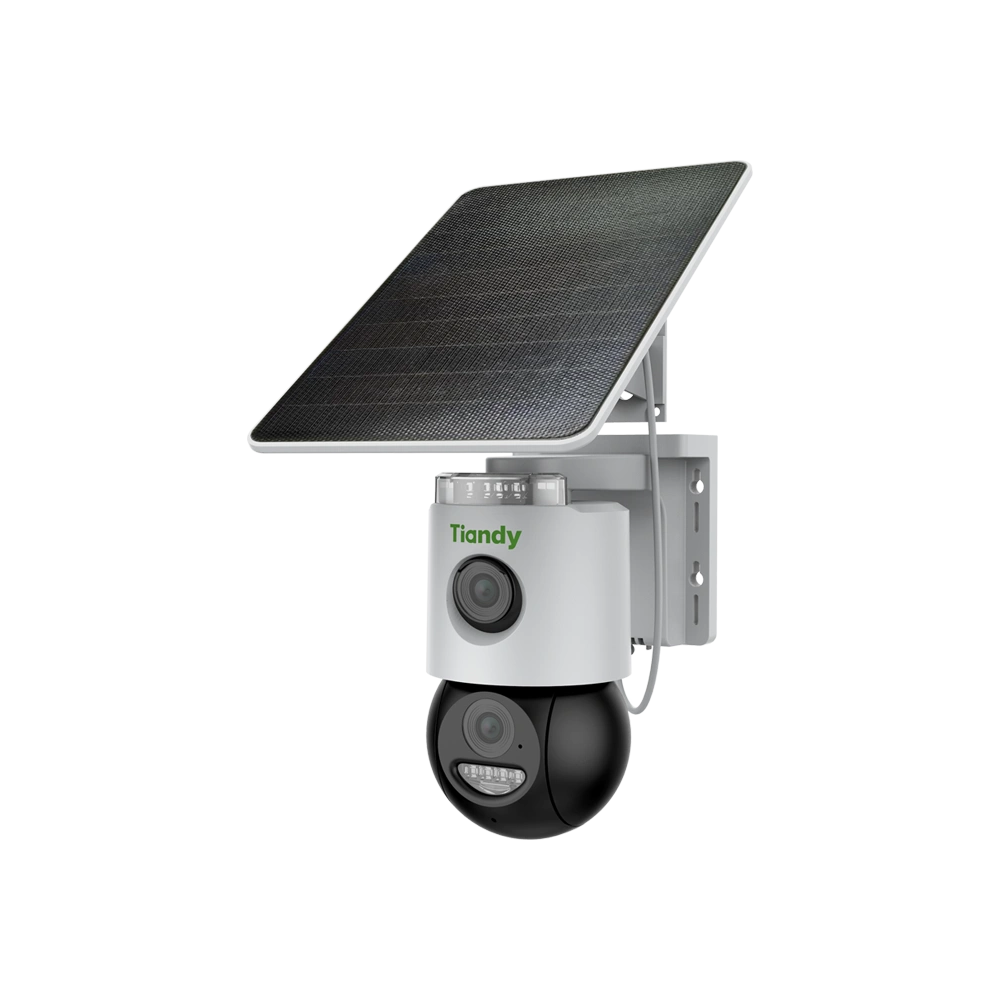

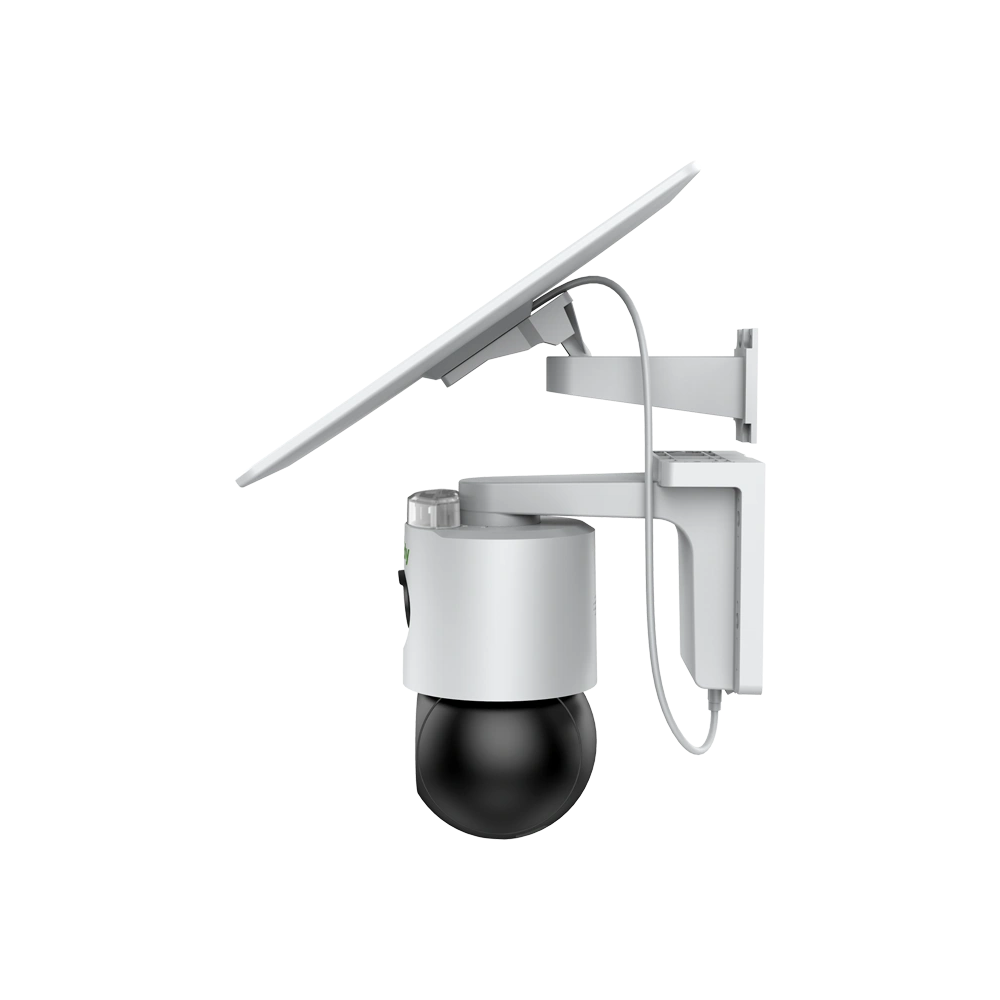

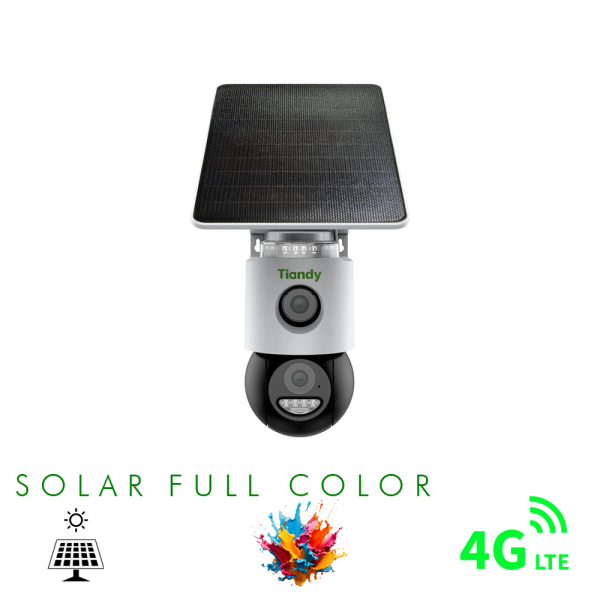

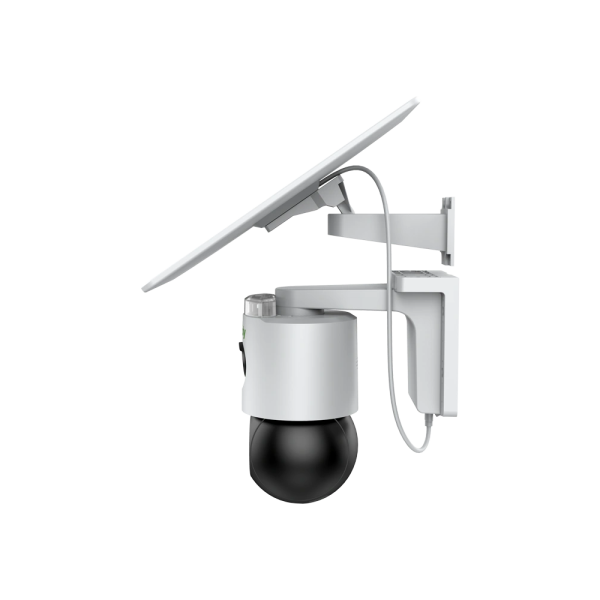

Tiandy WIFI Camera
6MP Solar Color Maker 4G (TC-H363U)
TC-H363U
Spec:W/4G/U/SE/4mm/V4.0
182.57 €
Koha e arritjes së produktit : 28/10/2025 - 29/10/2025
· Early Warning (EW)
· Up to 1920X1080@30fps
· Min. illumination Color: [email protected]
· Optical zoom: 4×, digital zoom 16×
· Smart IR, IR Range: 30m
· Support Human/Vehicle Classification
· Built-in Mic&Speaker
· S 265/H.265/H.264/M-JPEG
| Camera | |
| Image Sensor | 1/2.9″CMOS |
| Min. Illumination | Color:0.002Lux@(F1.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | NO IR-cut |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >50dB |
| Angle Adjustment | Panorama:-60~60°(P) Details:0~345°(P); Panorama:5~15° Details:-15~90° |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.0 |
| Aperture Type | Fixed |
| Field of View | Panorama:81.8°(H) Detail:81.8°(H); Panorama:44.9°(V) Detail:44.9°(V); Panorama:94.9°(D) Detail:94.9°(D) |
| DORI Distance | Detect:57.14m Observe:22.68m Recognize:11.43m Identify:5.71m |
| Illuminator | |
| White LEDs | Panorama:4 Detail:4 |
| Whitelight Distance | 20m |
| Red and Blue Alarm Flash | Yes |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | Panorama:3MP,2304×1296@15fps Detail:3MP,2304×1296@15fps |
| Main Stream | Panorama: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) Detail: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) |
| Sub Stream | Panorama: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240) Detail: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto |
| OSD | 16*16/32*32/48*48 |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Network | |
| Protocols | TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | SDK |
| Remote Connection | ≤2 |
| Moblie Client | EasyLive Plus |
| Interface | |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 256GB |
| General | |
| Operating Temperature | -10℃~50℃(14℉~122℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -10℃~50℃(14℉~122℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC5V/2A |
| Protection | Surge500V; ESD6000V; IP65 |
| Boundary Dimensions | 183(L)105W)102(H)mm |
| Package Dimensions | 265(L)195(W)285(H)mm |
| GrossWeight | 1.66kg |
