Përshkrim

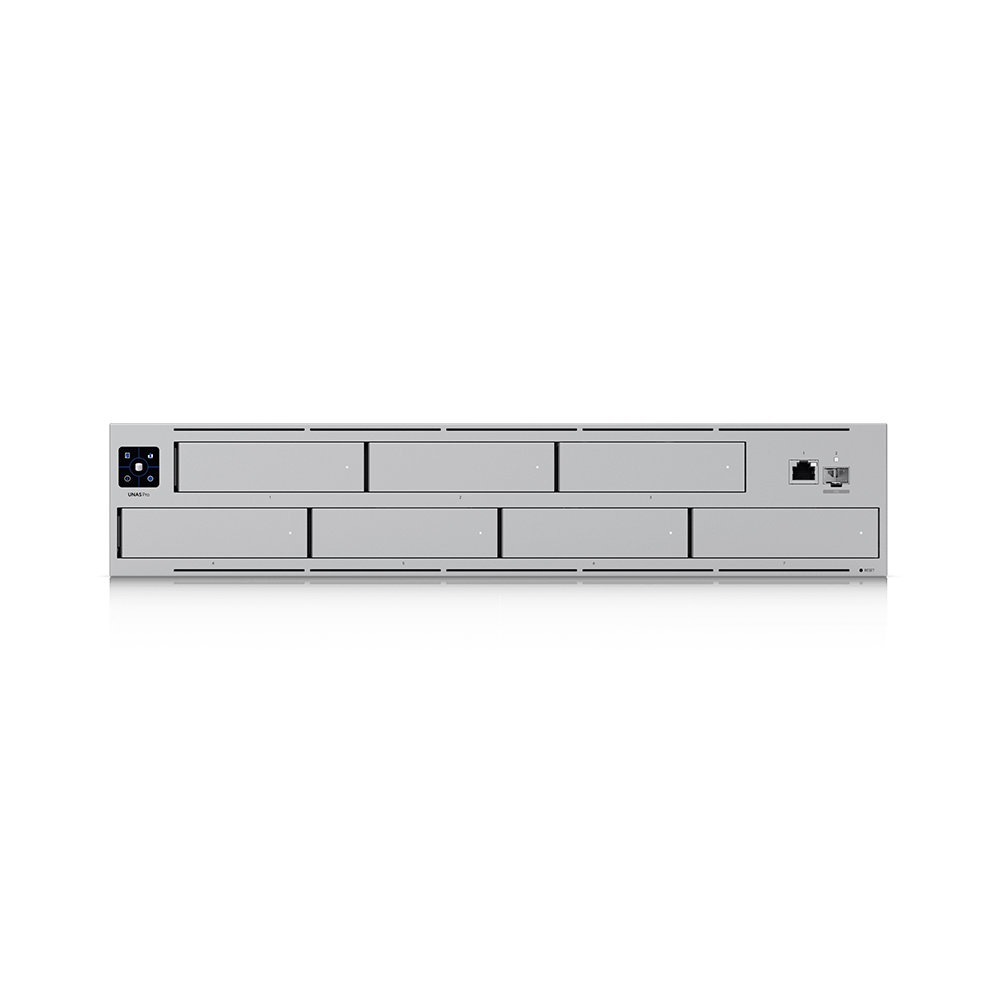

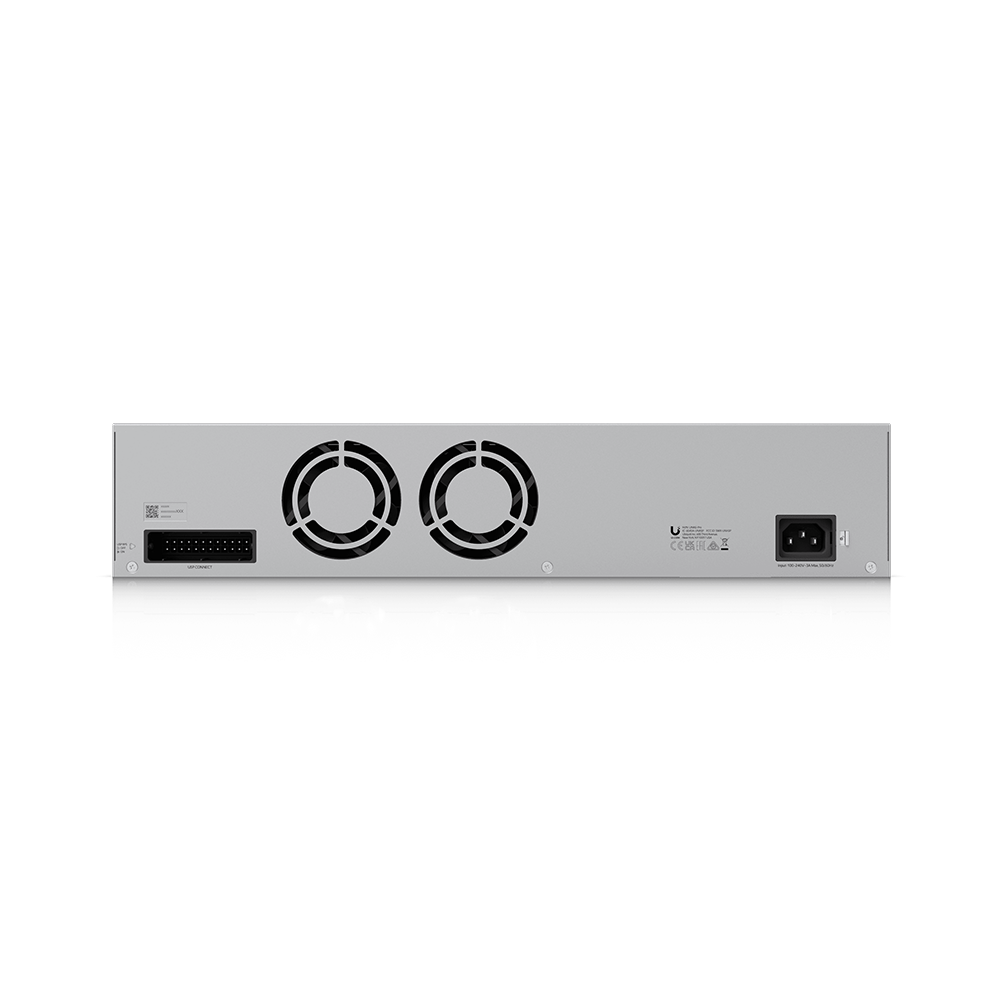

2U rack-mount NAS with (7) 2.5/3.5″ drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
Specifications
| Parameter | Specification |
|---|---|
| Overview | |
| Dimensions | 442.4 × 325 × 87.4 mm (17.4 × 12.8 × 3.4") |
| Form Factor | Rack mount (2U) |
| Storage Capacity | 7 × 3.5" drive bays |
| Power Redundancy | Yes |
| NDAA Compliant | Yes |
| Networking Interfaces | |
| Network Ports | 1 × 10G SFP+ (10G/1G)1 × GbE RJ45 (1G/100M/10M) |
| Management Interface | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Hardware | |
| Processor | Quad-Core ARM® Cortex®-A57 @ 1.7 GHz |
| Memory | 8 GB |
| Hard Drive Support | 2.5" / 3.5" HDD & SSD |
| Max Power Budget for Drives | 135 W |
| Display | 1.3" touchscreen |
| Power | |
| Power Method (AC) | Universal AC input, 100–240V AC, 3A Max., 50/60 Hz |
| Power Method (DC) | USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | Internal AC/DC, 200 W |
| Max Power Consumption | 160 W |
| LED Indicators | |
| Ethernet | ✓ |
| SFP+ | ✓ |
| HDD | ✓ |
| RPS | ✓ |
| Mechanical | |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Weight (without brackets) | 9.2 kg (20.3 lb) |
| Weight (with brackets) | 9.5 kg (20.8 lb) |
| Environment | |
| Operating Temperature | −5 to 40 °C (23 to 104 °F) |
| Operating Humidity | 5% to 95% non-condensing |
| Certifications | |
| Certifications | FCC, CE, IC, Anatel (01886-25-08356) |
| Software | |
| Application | UniFi Drive |
| Required Version | 1.16.0 and later |
| Supported File Protocols | NFS ✓SMB ✓ |
| RAID Types | RAID 5 / RAID 6 / RAID 10 |
| RAID Groups | Multiple |
| Hot Spare Support | ✓ |
| Personal & Shared Drives | ✓ |
| File Encryption | ✓ |
| Backup to Remote UNAS | ✓ |
| Backup to CIFS/SMB Server | ✓ |
| Cloud Backup | Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi |
| Snapshots | ✓ |
| Share Links | ✓ |
| Time Machine Backup | ✓ |
| Client App Support | ✓ |
| User Groups | ✓ |
