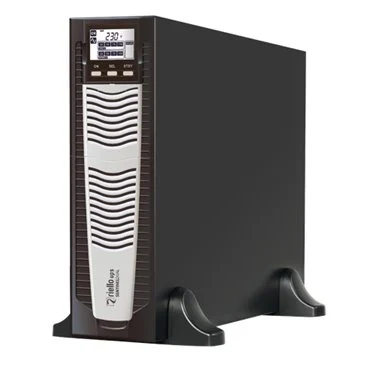

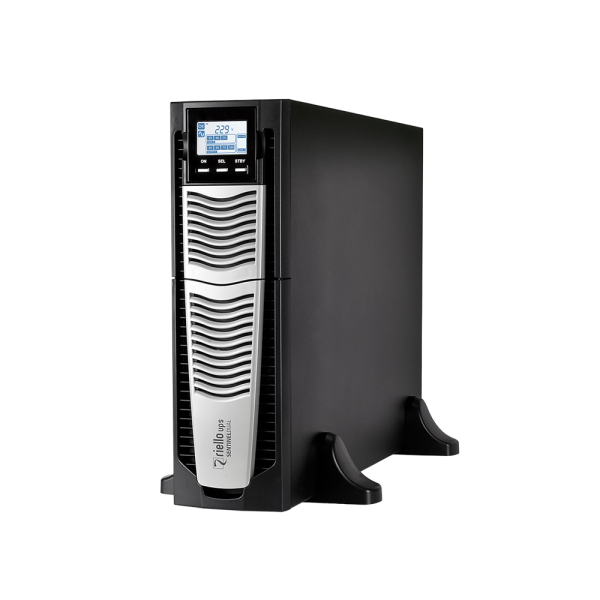

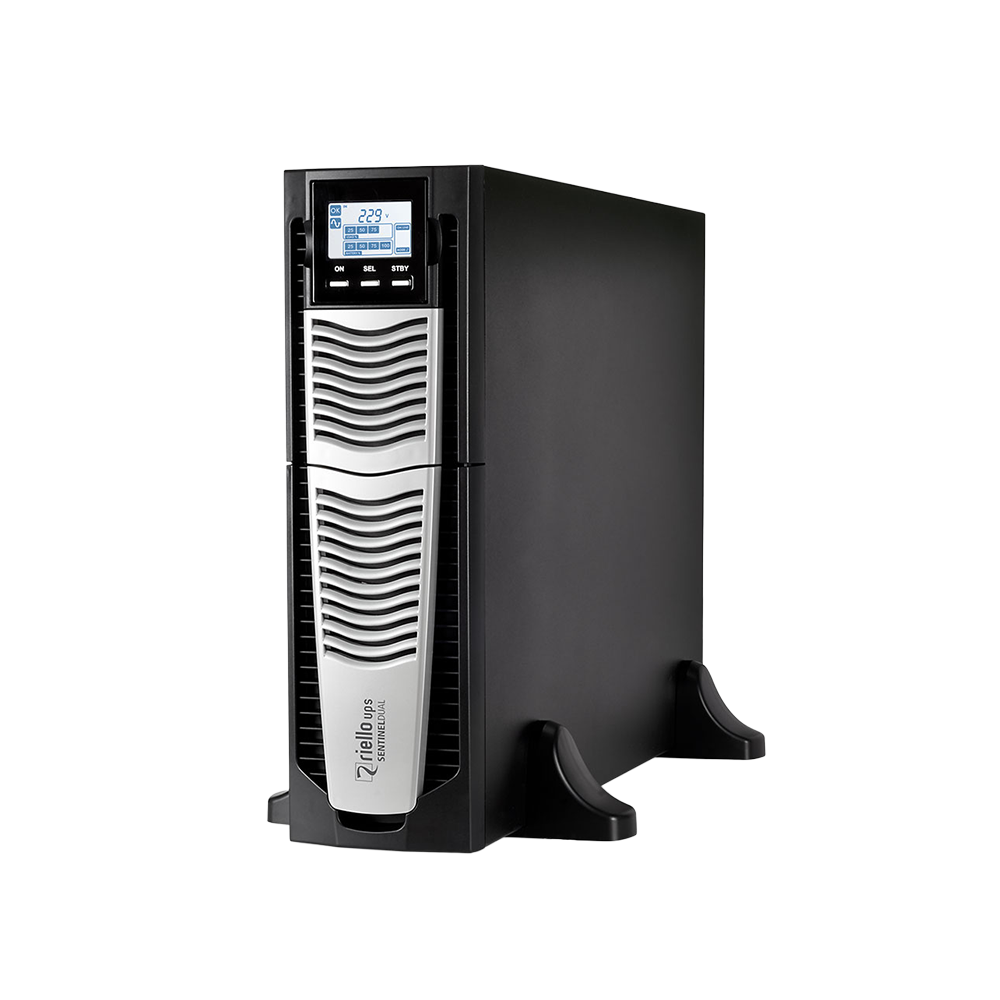

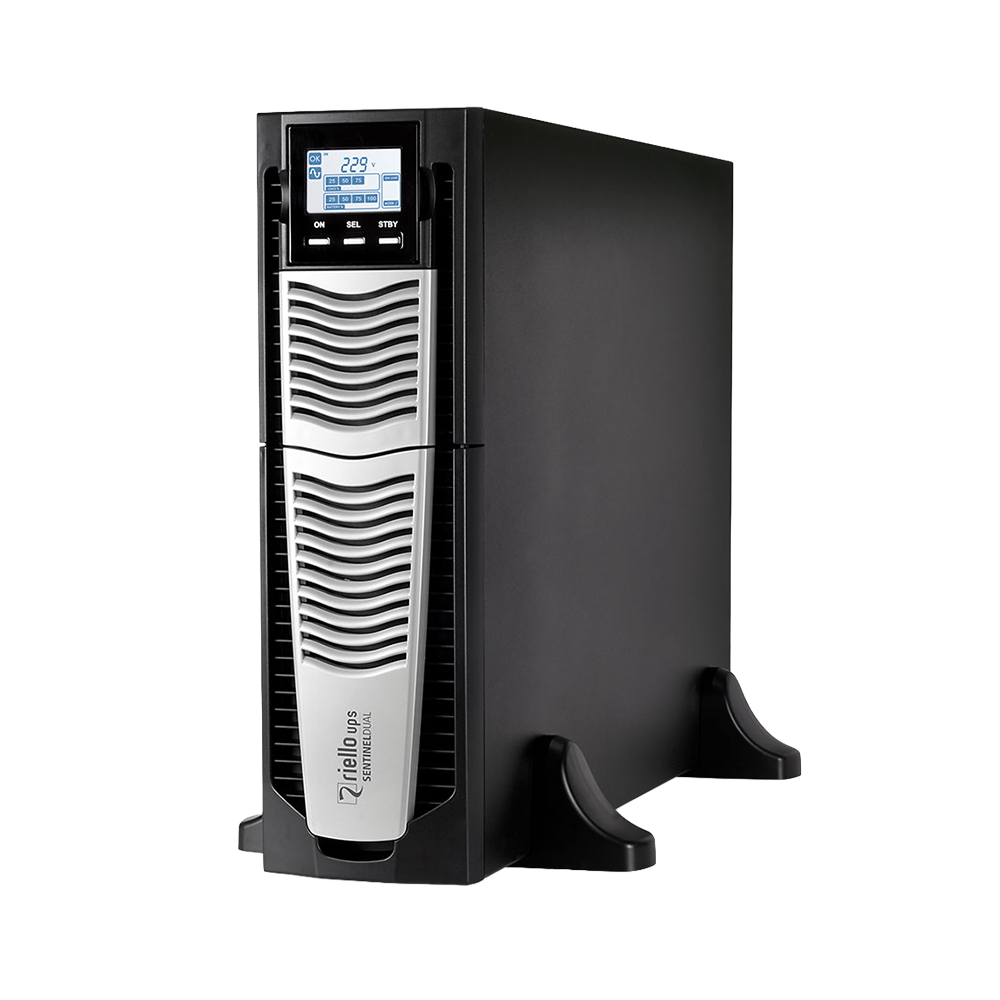

The range available in the 4 kva and 5-6-8-10 kv/kW models with dual conversion technology (VFI): the load constantly powered by the inverter, which provides a filtered and stabilized sinusoidal voltage in terms of voltage , shape and frequency. Sentinel Dual Sdu the best solution for the power supply of applications and electromedical devices Mission Critical which require maximum energy reliability. Sentineldual can be parallel up to 3 units.
Width 482.6 mm
Height 131 mm
Depth 640 mm
Weight 47 kg/km
Voltage type AC
Bridging time full load 10 min
Suitable for network-management TRUE
Construction type 482.6 mm (19 inch) device
USB interface TRUE
Input voltage 220;240 V
Output voltage 220;240 V
USV– technologyOnline
With communication interface RS-232 TRUE
Primary frequency 50;60 Hz
Secondary frequency 50;60 Hz
Number of phases secondary 1
Number of phases primary 1
Auto shut down function TRUE
Output power factor 1
Overall efficiency 95 %
Efficiency in eco-mode 98 %
Input connection Fixed connection
Number of output connections C138
Number of output connections fixed connection 11
Output effective power 6000 W
Output apparent power 6000 VA
Potential free switch contact TRUE
