Përshkrim

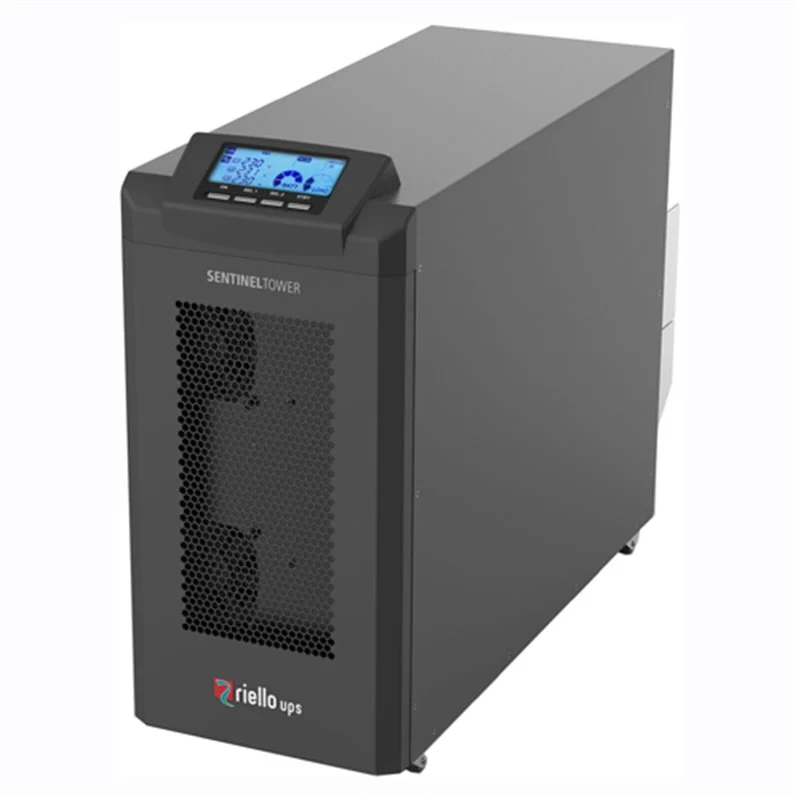

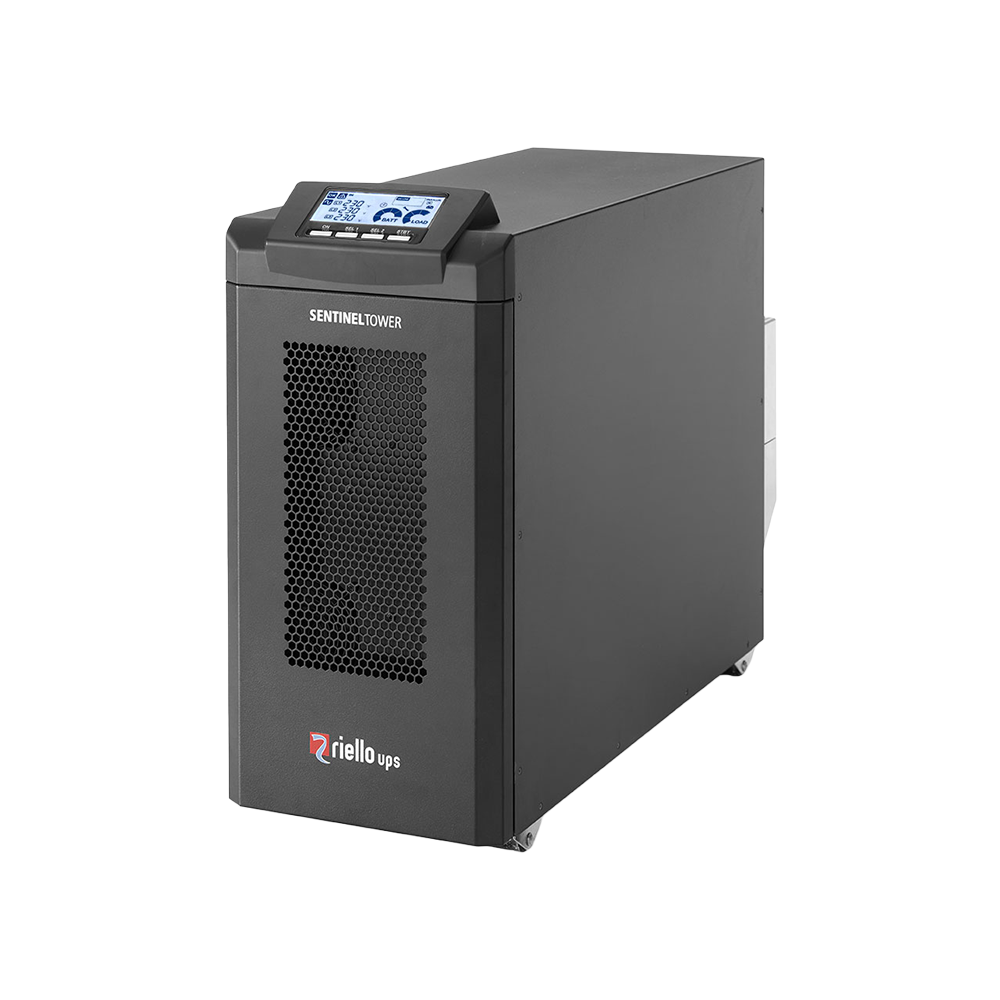

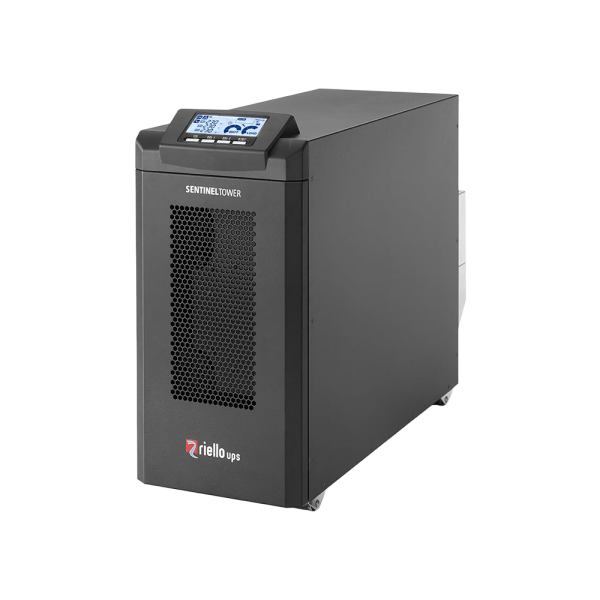

he series includes 5-6 kva/kW models/kW input and output and 8-10 kva/kW three-phase entry and single-phase exit. Sentinel Tower I know the ideal solution to protect mission critical systems such as safety devices, telecommunication equipment but also IT systems ensuring maximum reliability of Potenza.Sentinel Tower designed and built using the State-Of-The-Art and components technology technology able to provide maximum protection to powered loads
Width 250 mm
Height 500 mm
Depth 698 mm
Weight 84 kg/km
Voltage typeAC
Bridging time full load 7 min
Suitable for network-management TRUE
Construction type Free standing model
USB interface TRUE
Input voltage 220;240 V
Output voltage 220;240 V
USV- technologyOnline
With communication interface RS-232TRUE
Primary frequency 50;60 Hz
Secondary frequency 50;60 Hz
Number of phases secondary 1
Number of phases primary 3
Auto shut down function TRUE
Output power factor 1
Overall efficiency 95 %
Efficiency in eco-mode 98 %
Input connection Fixed connection
Number of output connections C132
Output effective power 10000 W
Output apparent power 10000 VA
Potential free switch contact TRUE
